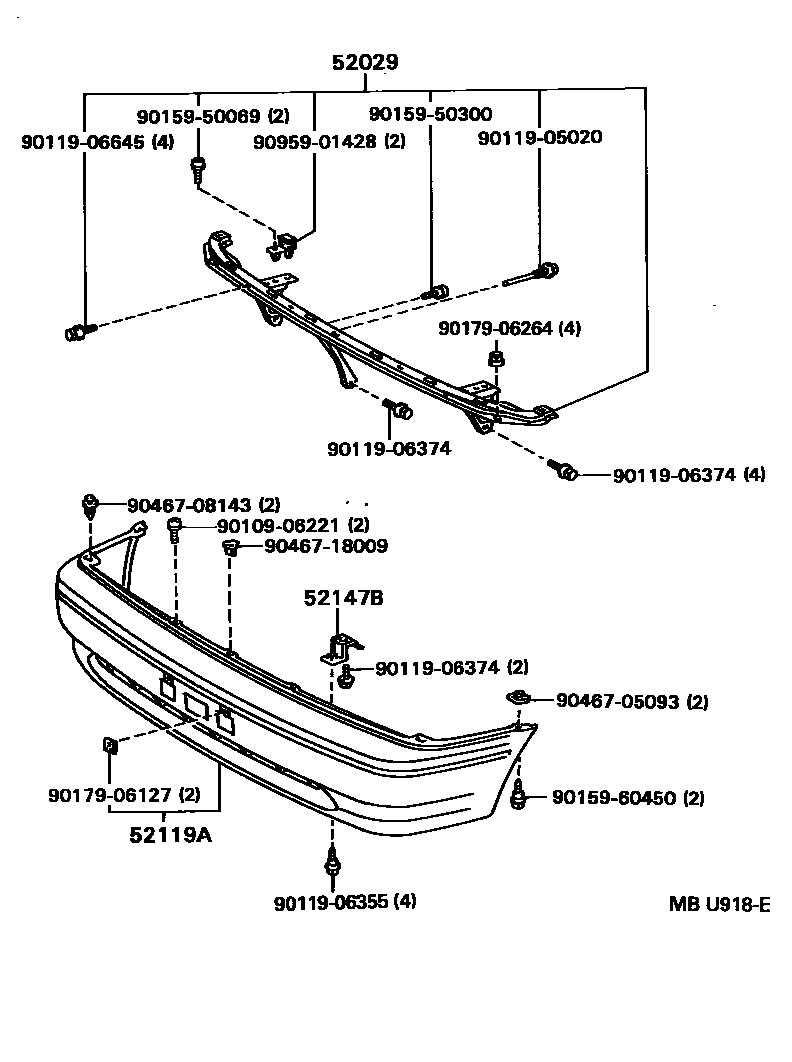

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-16010iEL4#,NL40..3DS199009-199409

main52029-16020iEL4#,NL40..4DS199009-199409

52119ACOVER, FRONT BUMPER

main52119-16280-02iEL4#,NL40..3DS199009-199208

SUPER RED,3E5

sub52119-16914

main52119-16280-03iEL4#,NL40..3DS199009-199208

BLUE GRAY M,179

sub52119-16914

main52119-16280-04iEL4#,NL40..3DS199009-199208

DARK BLUE M M,8J1

sub52119-16914

main52119-16280-07iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199208

GRAYISH GREEN M M,6L6

sub52119-16914

main52119-16280-08iEL4#,NL40..3DS199009-199208

SUPER WHITE 2,040

sub52119-16914

main52119-16280-09iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199208

LIGHT YELLOW,570

sub52119-16914

main52119-16280-12iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199208

PURPLE M M,924

sub52119-16914

main52119-16300-02iEL4#,NL40..4DS199009-199208

RED MICA,3H4

sub52119-16902

main52119-16300-03iEL4#,NL40..4DS199009-199208

BLUE GRAY M,179

sub52119-16902

main52119-16300-04iEL4#,NL40..4DS199009-199208

DARK BLUE M M,8J1

sub52119-16902

main52119-16300-07iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199208

GRAYISH GREEN M,6L6

sub52119-16902

main52119-16300-08iEL4#,NL40..4DS199009-199208

SUPER WHITE 2,040

sub52119-16902

main52119-16300-12iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199208

PURPLE M M,924

sub52119-16902

main52119-16360-A0iEL4#,NL40..3DS199208-199409

SUPER WHITE 2,040

sub52119-16915

main52119-16360-B0iEL4#,NL40..3DS199208-199409

DK. BL. GRAY ME,183

sub52119-16915

main52119-16360-D0iEL4#,NL40..3DS199208-199409

SUPER RED 2,3E5

sub52119-16915

main52119-16360-F0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

GREENISH YELLOW M.M,569

sub52119-16915

main52119-16360-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

LT. GREEN ME,6M9

sub52119-16915

main52119-16360-G1iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

MI. GR. GREEN MCGR,6N1

sub52119-16915

main52119-16360-K0iEL4#,NL40..3DS199208-199409

PURPLE M.M,924

sub52119-16915

main52119-16370-A0iEL4#,NL40..4DS199208-199409

SUPER WHITE 2,040

sub52119-16906

main52119-16370-B0iEL4#,NL40..4DS199208-199409

SUPER SILVER 3 M,176

sub52119-16906

main52119-16370-B1iEL4#,NL40..4DS199208-199409

DK. BL. GRAY ME,183

sub52119-16906

main52119-16370-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199409

LT. GREEN ME,6M9

sub52119-16906

main52119-16370-G1iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199409

MI. GR. GREEN MCGR,6N1

sub52119-16906

main52119-16370-K0iEL4#,NL40..4DS199208-199409

PURPLE M.M,924

sub52119-16906

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-16060×2iEL4#,NL40..3DS199009-199409

9010906221

main90109-06221

9011905020

main90119-05020

9011906355

main90119-06355

9011906374

main90119-06374

9011906645

main90119-06645

9015950069

main90159-50069

9015950300

main90159-50300

9015960450

main90159-60450

9017906127

main90179-06127

9017906264

main90179-06264

9046705093

main90467-05093

9046708143

main90467-08143

9046718009

main90467-18009

9095901428

main90959-01428

17 parts on this diagram · 3 diagrams in section
