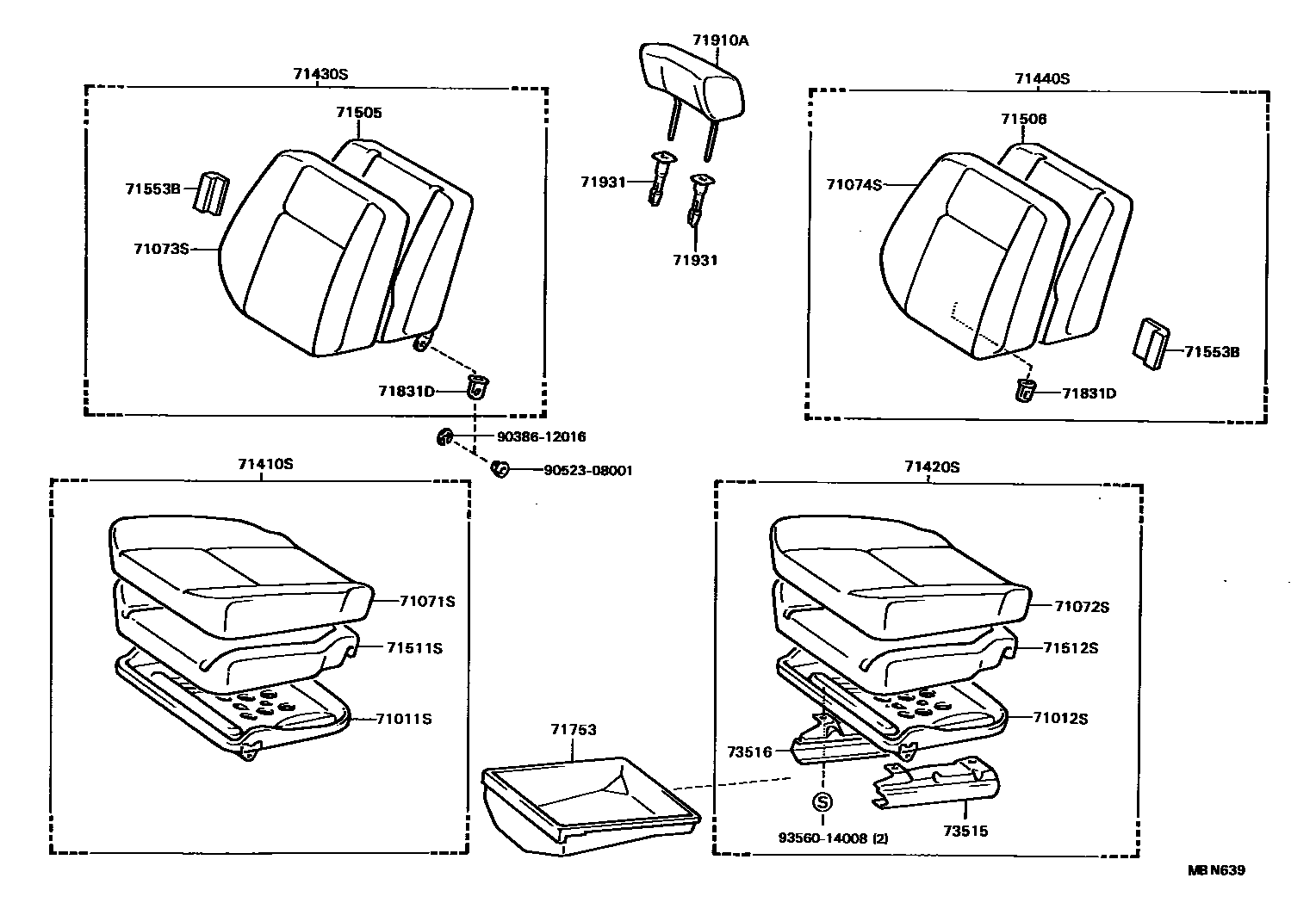

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-12190iEL3#,NL30..GX,TX,UX,VC,VL,VU198805-199009

main71011-16030iEL31..EFI,TBO198805-199009

main71011-16040iEL3#,NL30..CUT,EX,SOP,VX198805-199009

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-12190iEL3#,NL30..CBR,TD198805-199009

main71011-16030iEL31..EFI,TBO198805-199009

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-16421-03iEL31..EFI198805-199009

GRAY,TRIM2#

main71071-16421-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71071-16561-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71071-16561-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71071-16571-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71071-16571-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71071-16581-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71071-16581-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71071-16591-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71071-16591-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71071-16611-03iEL30..TX,VC198901-198910

main71071-16611-03iNL30..TX,VC198805-199009

main71071-16611-04iEL30,NL30..TX,VC198805-199009

main71071-16611-04iNL30..TX,VC198901-198910

main71071-16661-03iEL31..TBO198805-199009

GRAY,TRIM2#

main71071-16661-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71071-16760-03iEL30..3DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71071-16760-03iEL30..5DS..(TX,VC)198910-199009

main71071-16760-03iEL30..3DS..(TX,VC)198805-198910

main71071-16760-04iEL30..5DS..(TX,VC)198910-199009

main71071-16760-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71071-16770-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71071-16770-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71071-16790-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-16421-03iEL31..EFI198805-199009

GRAY,TRIM2#

main71071-16421-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71071-16561-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71071-16561-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71071-16571-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71071-16571-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71071-16581-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71071-16581-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71071-16591-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71071-16591-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71071-16611-03iEL30,NL30..TX,VC198805-199009

main71071-16611-03iNL30..TX,VC198901-198910

main71071-16611-04iNL30..TX,VC198901-198910

main71071-16611-04iEL30,NL30..TX,VC198805-199009

main71071-16661-03iEL31..TBO198805-199009

GRAY,TRIM2#

main71071-16661-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71071-16760-03iEL30..5DS..(TX,VC)198910-199009

main71071-16760-03iEL30..3DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71071-16760-03iEL30..3DS..(TX,VC)198805-198910

main71071-16760-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71071-16760-04iEL30..3DS..(TX,VC)198910-199009

main71071-16770-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71071-16770-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71071-16790-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-16631-03iEL31..EFI198805-199009

GRAY,TRIM2#

main71073-16631-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71073-16641-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71073-16641-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71073-16651-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71073-16651-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71073-16661-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71073-16661-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71073-16671-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71073-16671-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71073-16691-03iNL30..TX,VC198901-198910

main71073-16691-03iNL30..TX,VC198805-199009

main71073-16691-04iNL30..TX,VC198901-198910

main71073-16691-04iEL30..TX,VC198805-199009

main71073-16751-03iEL31..TBO198805-199009

GRAY,TRIM2#

main71073-16751-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71073-16850-03iEL30..3DS..(TX,VC)198910-199009

main71073-16850-03iEL30..3DS..(TX,VC)198805-198910

main71073-16850-03iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71073-16850-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71073-16850-04iEL30..3DS..(TX,VC)198910-199009

main71073-16860-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71073-16860-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71073-16880-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-16631-03iEL31..EFI198805-199009

GRAY,TRIM2#

main71073-16631-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71073-16751-03iEL31..TBO198805-199009

GRAY,TRIM2#

main71073-16751-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71074-16441-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71074-16441-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71074-16451-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71074-16451-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71074-16461-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71074-16461-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71074-16481-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71074-16481-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71074-16601-03iNL30..TX,VC198805-199009

main71074-16601-03iNL30..TX,VC198901-198910

main71074-16601-04iNL30..TX,VC198901-198910

main71074-16601-04iEL30,NL30..TX,VC198805-199009

main71074-16650-03iEL30..5DS..(TX,VC)198910-199009

main71074-16650-03iEL30..3DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71074-16650-03iEL30..3DS..(TX,VC)198805-198910

main71074-16650-04iEL30..5DS..(TX,VC)198910-199009

main71074-16650-04iEL30..3DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71074-16660-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71074-16660-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71074-16670-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-16601-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71410-16601-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71410-16611-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71410-16611-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71410-16621-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71410-16621-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71410-16631-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71410-16631-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71410-16641-01iEL31..EFI198805-199009

BLACK,TRIM2#

main71410-16641-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71410-16651-01iEL31..TBO198805-199009

BLACK,TRIM2#

main71410-16651-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71410-16751-03iEL30..TX,VC198901-198910

main71410-16751-03iEL30..TX,VC198805-199009

main71410-16751-04iEL30..TX,VC198805-199009

main71410-16751-04iNL30..TX,VC198901-198910

main71410-16780-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71410-16780-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71410-16790-03iEL30..3DS..(TX,VC)198910-199009

main71410-16790-03iEL30..3DS..(TX,VC)198805-198910

main71410-16790-03iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71410-16790-04iEL30..3DS..(TX,VC)198910-199009

main71410-16790-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71410-16810-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-16601-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71410-16601-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71410-16611-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71410-16611-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71410-16641-01iEL31..EFI198805-199009

BLACK,TRIM2#

main71410-16641-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71410-16651-01iEL31..TBO198805-199009

BLACK,TRIM2#

main71410-16651-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71410-16751-03iNL30..TX,VC198805-199009

main71410-16751-03iNL30..TX,VC198901-198910

main71410-16751-04iEL30..TX,VC198901-198910

main71410-16751-04iNL30..TX,VC198805-199009

main71410-16780-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71410-16780-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71410-16790-03iEL30..3DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71410-16790-03iEL30..3DS..(TX,VC)198805-198910

main71410-16790-03iEL30..3DS..(TX,VC)198910-199009

main71410-16790-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71410-16790-04iEL30..5DS..(TX,VC)198910-199009

main71420-16591-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71420-16591-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71420-16601-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71420-16601-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71420-16740-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-16661-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71430-16661-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71430-16671-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71430-16671-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71430-16681-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71430-16681-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71430-16691-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71430-16691-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71430-16701-01iEL31..EFI198805-199009

BLACK,TRIM2#

main71430-16701-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71430-16711-01iEL31..TBO198805-199009

BLACK,TRIM2#

main71430-16711-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71430-16721-01iEL31..EFI198805-199009

main71430-16721-04iEL31..EFI198805-199009

main71430-16731-01iEL31..TBO198805-199009

main71430-16731-04iEL31..TBO198805-199009

main71430-16861-03iEL30..TX,VC198805-199009

main71430-16861-03iNL30..TX,VC198901-198910

main71430-16861-04iEL30..TX,VC198901-198910

main71430-16861-04iEL30,NL30..TX,VC198805-199009

main71430-1G020-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71430-1G020-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71430-1G030-03iEL30..3DS..(TX,VC)198805-198910

main71430-1G030-03iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71430-1G030-03iEL30..5DS..(TX,VC)198910-199009

main71430-1G030-04iEL30..3DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71430-1G030-04iEL30..3DS..(TX,VC)198910-199009

main71430-1G060-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-16411-03iEL30,NL30..TX,VC198805-199009

GRAY,TRIM2#

main71440-16411-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71440-16421-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71440-16421-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71440-16641-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71440-16641-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71440-16651-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71440-16651-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71440-16661-01iEL31..EFI198805-199009

BLACK,TRIM2#

main71440-16661-04iEL31..EFI198805-199009

BLUE,TRIM8#

main71440-16671-01iEL31..TBO198805-199009

BLACK,TRIM2#

main71440-16671-04iEL31..TBO198805-199009

BLUE,TRIM8#

main71440-16681-01iEL31..EFI198805-199009

main71440-16681-04iEL31..EFI198805-199009

main71440-16691-01iEL31..TBO198805-199009

main71440-16691-04iEL31..TBO198805-199009

main71440-16811-03iEL30..TX,VC198805-199009

main71440-16811-03iEL30..TX,VC198901-198910

main71440-16811-04iEL30,NL30..TX,VC198805-199009

main71440-16811-04iEL30..TX,VC198901-198910

main71440-16860-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71440-16860-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71440-16870-03iEL30..5DS..(TX,VC)198910-199009

main71440-16870-03iEL30..3DS..(TX,VC)198805-198910

main71440-16870-03iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,GRAY,TRIM2#

main71440-16870-04iEL30..3DS..(TX,VC)198910-199009

main71440-16870-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71440-1G010-03iEL30..CUT,SOP198901-199009

SOPIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-16020iEL3#,NL30..CBR,TD198805-199009

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-16020iEL3#,NL30..CBR,TD198805-199009

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-16100iEL3#,NL30..CBR,TD198805-199009

main71513-16010iEL31..EFI,TBO198805-199009

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-16100iEL3#,NL30..CBR,TD198805-199009

main71513-16010iEL31..EFI,TBO198805-199009

71553BPAD, FRONT SEATBACK, B

main71553-16030iEL3#,NL30..CBR,TD198805-199009

71753TRAY, FRONT SEAT UNDER

main71753-12010iEL3#,NL30..CUT,EX,SOP,VX198805-199009

71831DCOVER, FRONT SEAT HINGE, RH

main71831-10010iEL3#,NL30..CBR,TD198805-199009

71910AHEADREST ASSY, FRONT SEAT

main71910-16180-01iEL30,NL30..TX,VC198805-199009

BLACK,TRIM2#

main71910-16180-04iEL30,NL30..TX,VC198805-199009

BLUE,TRIM8#

main71910-16191-03iEL31,NL30..EX,VX198805-199009

GRAY,TRIM2#

main71910-16191-04iEL31,NL30..EX,VX198805-199009

BLUE,TRIM8#

main71910-16201-01iEL31..EFI,TBO198805-199009

BLACK,TRIM2#

main71910-16201-04iEL31..EFI,TBO198805-199009

BLUE,TRIM8#

main71910-16271-03iEL30..CUT,SOP198805-199009

GRAY,TRIM2#

main71910-16271-04iEL30..CUT,SOP198805-199009

BLUE,TRIM8#

main71910-16290-03iEL31..UX,VU198805-199009

GRAY,TRIM2#

main71910-16290-04iEL31..UX,VU198805-199009

BLUE,TRIM8#

main71910-16300-03iEL3#,NL30..GX,VL198805-199009

GRAY,TRIM2#

main71910-16300-04iEL3#,NL30..GX,VL198805-199009

BLUE,TRIM8#

main71910-16310-01iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLACK,TRIM2#

main71910-16310-01iEL30..5DS..(TX,VC)198910-199009

main71910-16310-01iEL30..3DS..(TX,VC)198805-198910

main71910-16310-04iEL30..3DS..(TX,VC)198910-199009

main71910-16310-04iEL30..5DS..(TX,VC)198910-199009

MOA SPECIAL,JOINUS EXTRA,BLUE,TRIM8#

main71910-16320-03iEL30..CUT,SOP198901-199009

SOPHIA SPECIAL,CUTIE EXTRA,GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71931-16011-01iEL30..CUT,SOP198901-199009

main71931-16011-01iEL3#,NL30198805-199009

main71931-16011-04iEL30..CUT,SOP198901-199009

main71931-16011-04iEL3#,NL30198805-199009

73515RAIL, FRONT SEAT UNDER TRAY, NO.1

main73515-12020iEL3#,NL30..CUT,EX,SOP,VX198805-199009

73516RAIL, FRONT SEAT UNDER TRAY, NO.2

main73516-12020iEL3#,NL30..CUT,EX,SOP,VX198805-199009

9038612016

main90386-12016

9052308001

main90523-08001

9356014008

main93560-14008

24 parts on this diagram · 4 diagrams in section
