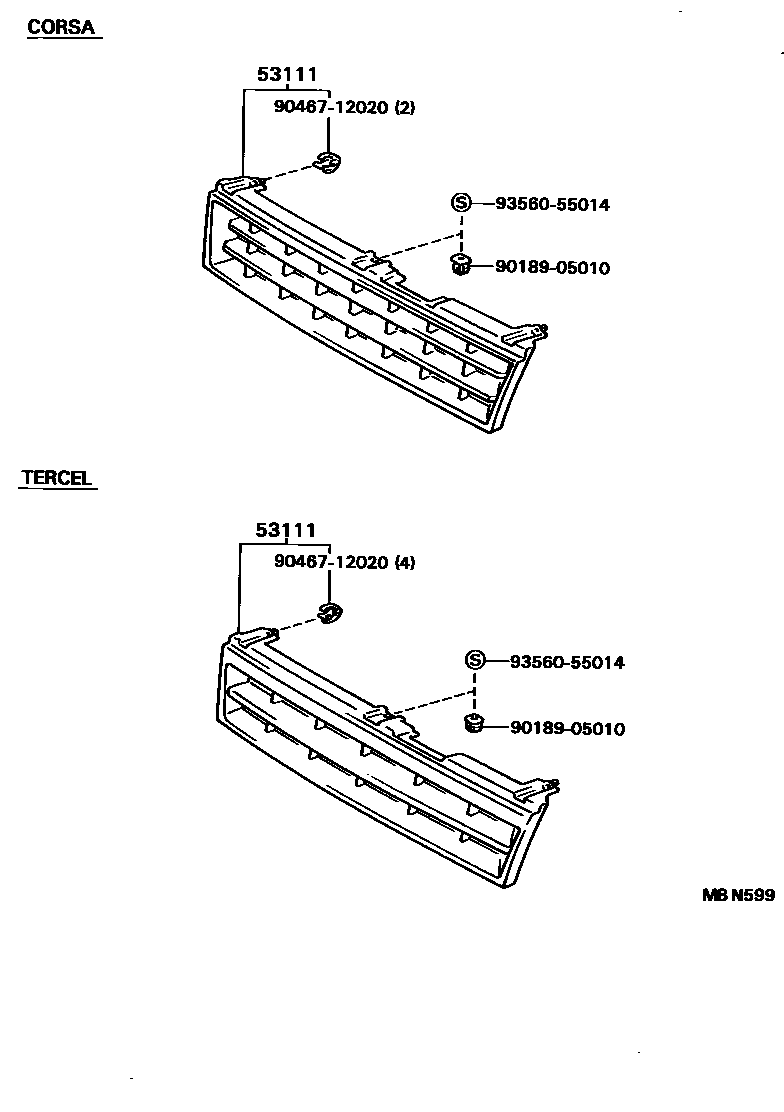

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-16240-01iEL30..VC199004-199009

main53111-16240-02iEL3#,NL30..CUT,VC,VL,VX198805-199009

RED,3E6

main53111-16240-03iEL31,NL30..VX198805-199009

SILVER M,23B

main53111-16240-04iEL3#,NL30..CUT,VC,VL,VX198805-199009

LIGHT BLUE M,8D8

main53111-16240-07iEL30,NL30..CUT,VC198805-199009

TURQUOIS M,741

main53111-16240-08iEL3#,NL30..CUT,VC,VL,VX198805-199009

WHITE,041

main53111-16240-12iEL3#,NL30..CUT,VC,VL,VX198805-199009

RED MICA,3H4

main53111-16240-14iEL3#,NL30..VC,VL,VX198805-199009

BLUE MICA M,8G1

main53111-16250-01iEL30..TX199004-199009

BLACK,205

main53111-16250-02iEL3#,NL30..EX,GX,SOP,TX198805-199009

RED,3E6

main53111-16250-03iEL31,NL30..EX198805-199009

SILVER M,23B

main53111-16250-04iEL3#,NL30..EX,GX,SOP,TX198805-199009

LIGHT BLUE M,8D8

main53111-16250-07iEL30,NL30..SOP,TX198805-199009

TURQUOIS M,741

main53111-16250-08iEL3#,NL30..EX,GX,SOP,TX198805-199009

WHITE,041

main53111-16250-12iEL3#,NL30..EX,GX,SOP,TX198805-199009

RED MICA,3H4

main53111-16250-14iEL3#,NL30..EX,GX,TX198805-199009

BLUE MICA M,8G1

9018905010

main90189-05010

9046712020

main90467-12020

9356055014

main93560-55014

4 parts on this diagram · 2 diagrams in section
