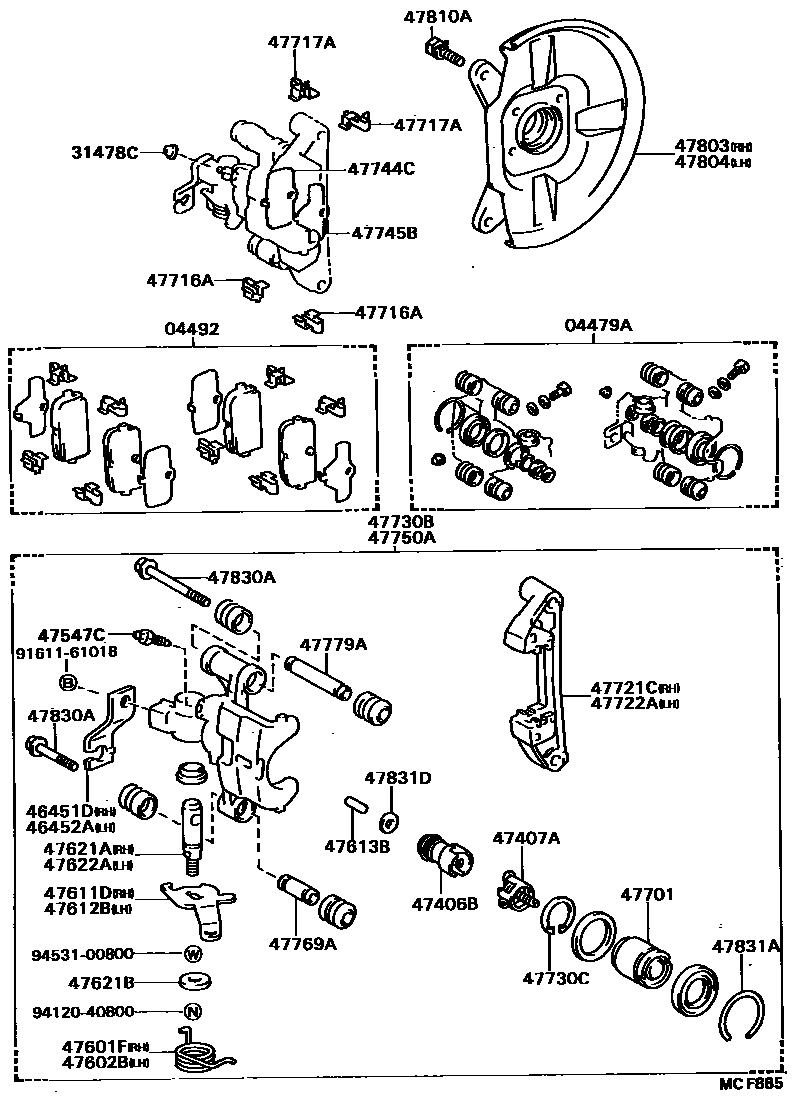

REAR DISC BRAKE CALIPER & DUST COVER
04479ACYLINDER KIT, DISC BRAKE, REAR
04492PAD KIT, DISC BRAKE, REAR
sub04466-16010
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH
46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH
47406BCLUTCH SUB-ASSY, REAR DISC BRAKE
47407AADJUSTER ASSY, REAR DISC BRAKE PAD
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)
47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)
47611DLEVER, PARKING BRAKE DISC, RH
47612BLEVER, PARKING BRAKE DISC, LH
47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)
47621ASHAFT, PARKING LEVER, RH
47621BSPACER(FOR PARKING LEVER SHAFT)
47622ASHAFT, PARKING LEVER, LH
47701PISTON SUB-ASSY, REAR DISC BRAKE
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47730CRING, HOLE SNAP(FOR REAR DISC BRAKE CYLINDER)
47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47830ABOLT(FOR REAR DISC BRAKE)
47831ARING, SET(FOR REAR DISC BRAKE PISTON)
47831DRING(FOR REAR DISC BRAKE)
9161161018
main91611-61018
9412040800
main94120-40800
9453100800
main94531-00800
37 parts on this diagram · 2 diagrams in section
