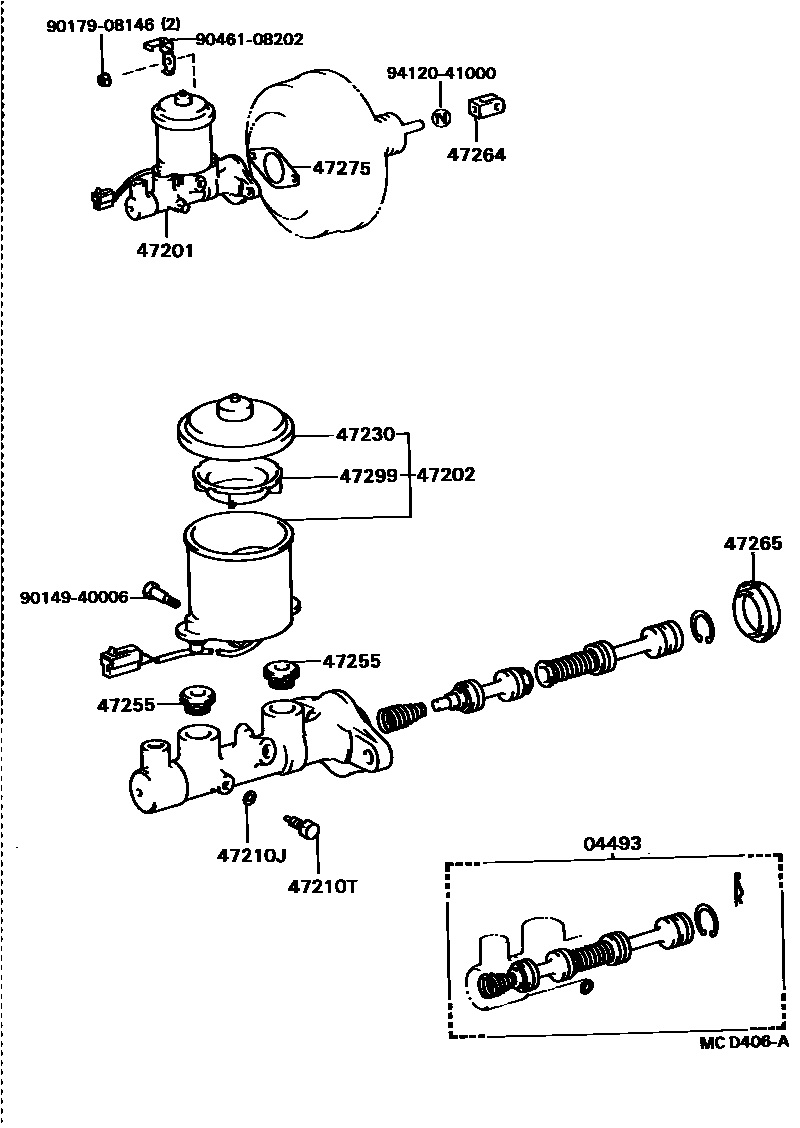

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-16030iEL3#,NL30..CBR,EFI,TD198805-199009

sub04493-12180

main04493-16060iEL31..EFI198903-199009

main04493-20140iEL31..TBO198805-199009

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16120iEL3#,NL30..CBR,TD198805-199009

main47201-16150iEL31..TBO198805-199009

main47201-16160iEL31..EFI198903-199009

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-16050iEL31..TBO198805-199009

main47220-16010iEL3#,NL30..CBR,EFI,TD198805-199009

47210JGASKET(FOR MASTER CYLINDER)

main90430-06002iEL31..TBO198805-199009

main90430-06104iEL3#,NL30..CBR,EFI,TD198805-199009

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL3#,NL30..CBR,TD198805-199009

main90109-06123iEL31..EFI,TBO198805-199009

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEL3#,NL30..CBR,EFI,TD198805-199009

main47230-16020iEL31..TBO198805-199009

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL3#,NL30..CBR,EFI,TD198805-199009

main47255-20010iEL31..TBO198805-199009

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16010iEL31..TBO198805-199009

main47264-20040iEL3#,NL30..CBR,EFI,TD198805-199009

47265BOOT, MASTER CYLINDER

main47265-20050iEL3#,NL30..CBR,EFI,TD198805-199009

main47265-20080iEL31..EFI,TBO198805-199009

47275GASKET, BRAKE MASTER CYLINDER

main47275-12010iEL31..EFI,TBO198805-199009

main47275-14010iEL3#,NL30..CBR,EFI,TD198805-199009

sub47275-26010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL3#,NL30..CBR,EFI,TD198805-199009

main47299-16020iEL31..EFI,TBO198805-199009

9014940006

main90149-40006

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

15 parts on this diagram · 2 diagrams in section
