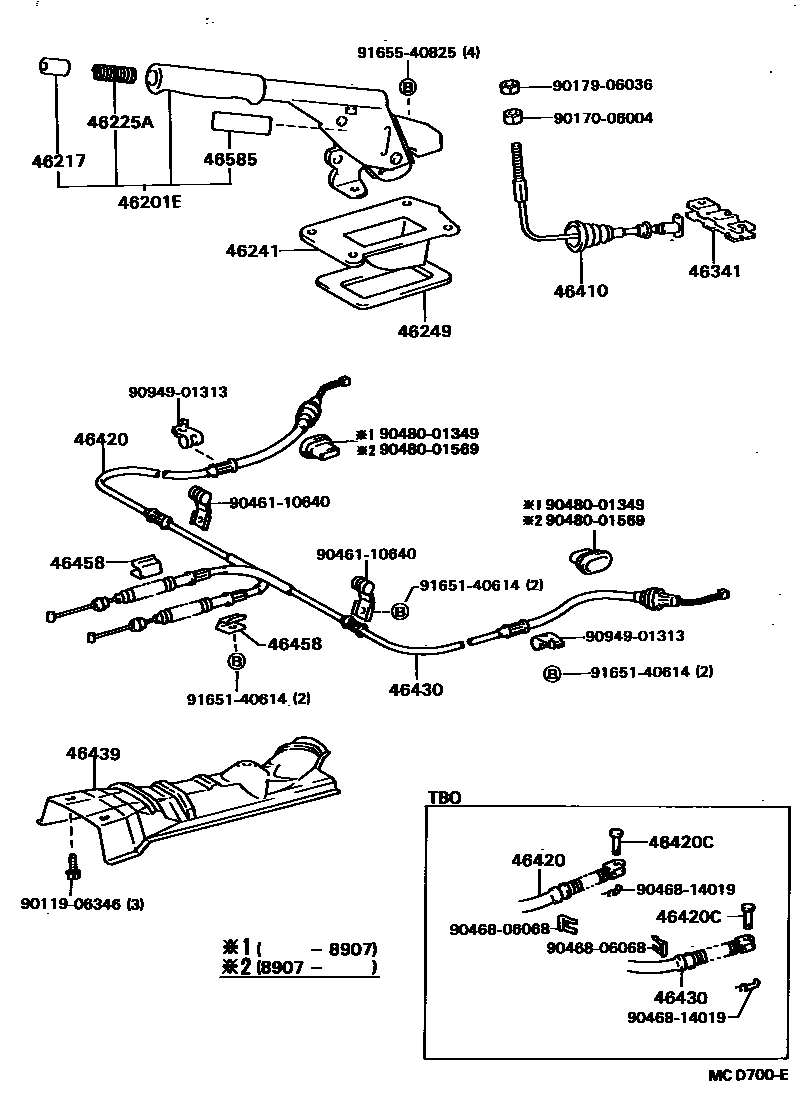

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-10072-04iEL3#,NL30..CBR,EFI,TD198805-199009

BLUE,TRIM8#

sub46201-10072¥4,730

main46201-10072-11iEL3#,NL30..CBR,EFI,TD198805-199009

NEW BLACK,TRIM2#

sub46201-10072¥4,730

main46201-16051-01iEL31..TBO198805-199009

NEW BRACK,TRIM2#

sub46201-16051¥4,730

main46201-16051-04iEL31..TBO198805-199009

BLUE,TRIM8#

sub46201-16051¥4,730

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-04iEL3#,NL30198808-199009

DEEP BLUE,TRIM8#

sub46217-12020¥230

sub46217-16030¥240

main46217-12020-11iEL3#,NL30198808-199009

BLACK,TRIM2#

sub46217-12020¥230

sub46217-16030¥240

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iEL3#,NL30¥160198805-199009

46241BOOT, PARKING BRAKE LEVER

main46241-16030iEL31..TBO¥940198805-199009

main46241-20050iEL3#,NL30..CBR,EFI,TD¥930198805-199009

46249SHIELD, PARKING BRAKE HOLE

main46249-16020iEL31..TBO¥250198805-199009

main46249-20020iEL3#,NL30..CBR,EFI,TD¥240198805-199009

46341EQUALIZER, PARKING BRAKE

main46341-16020iEL3#,NL30¥620198805-199009

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10050iEL3#,NL30..CBR,EFI,TD¥2,140198805-199009

main46410-16030iEL31..TBO¥2,140198805-199009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-16090iEL3#,NL30..CBR,EFI,TD¥5,100198805-199009

main46420-16110iEL31..TBO¥4,650198805-199009

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040iEL31..TBO¥240198805-199009

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-16090iEL3#,NL30..CBR,EFI,TD¥5,100198805-199009

main46430-16110iEL31..TBO¥4,650198805-199009

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-16010iEL3#¥1,800198805-199009

46458RETAINER, CABLE

main46458-20020iEL3#,NL30¥270198805-198906

sub46458-50010¥340

main46458-50010iEL3#,NL30¥340198906-199009

46585PLATE, PARKING BRAKE CAUTION

main46585-16020iEL31..TBO¥190198805-199009

9011906346

main90119-06346¥120

9017006004

main90170-06004¥130

9017906036

main90179-06036¥120

9046110640

main90461-10640¥530

9046806068

main90468-06068¥110

9046814019

main90468-14019¥120

9048001349

main90480-01349¥310

9048001569

main90480-01569¥370

9094901313

main90949-01313¥340

9165140614

main91651-40614¥160

9165540825

main91655-40825¥170

24 parts on this diagram · 1 diagram in section
