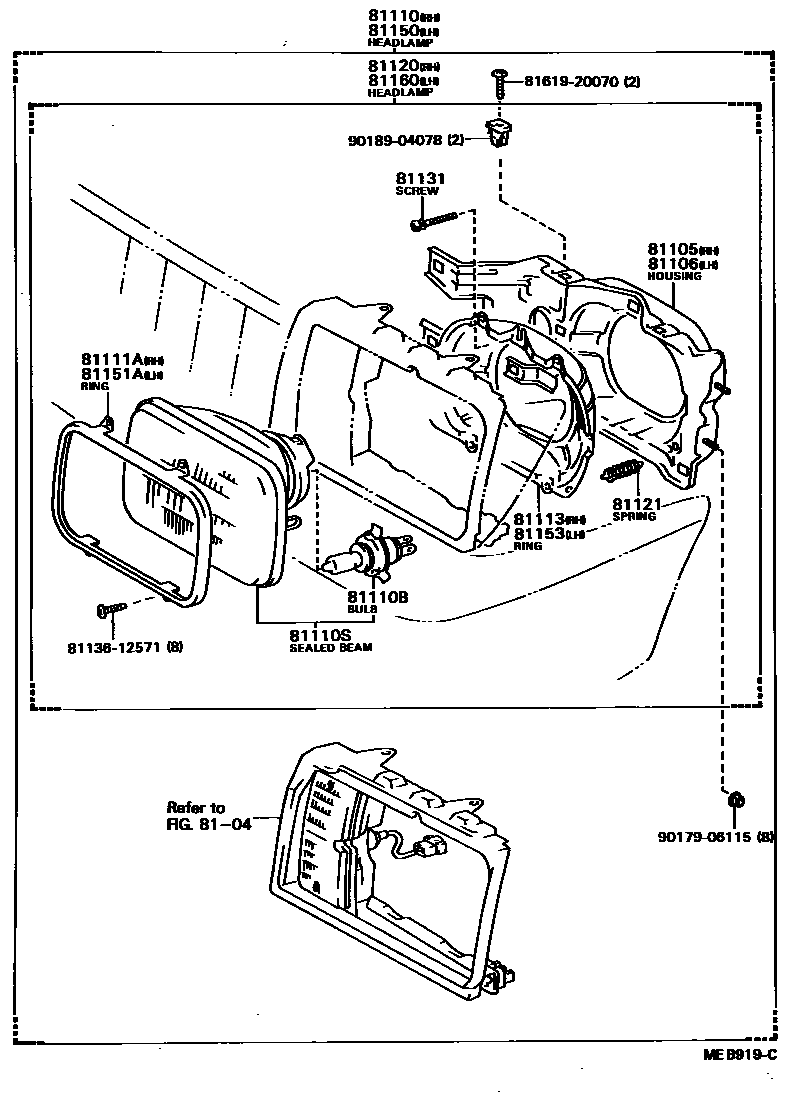

HEADLAMP
8104
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110SSEALED BEAM UNIT, NO.1
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81120HEADLAMP SUB-ASSY, RH
HALOGEN
HALOGEN
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81160HEADLAMP SUB-ASSY, LH
HALOGEN
HALOGEN
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
8161920070
main81619-20070
9017906115
main90179-06115
9018904078
main90189-04078
19 parts on this diagram · 2 diagrams in section
