BATTERY CARRIER

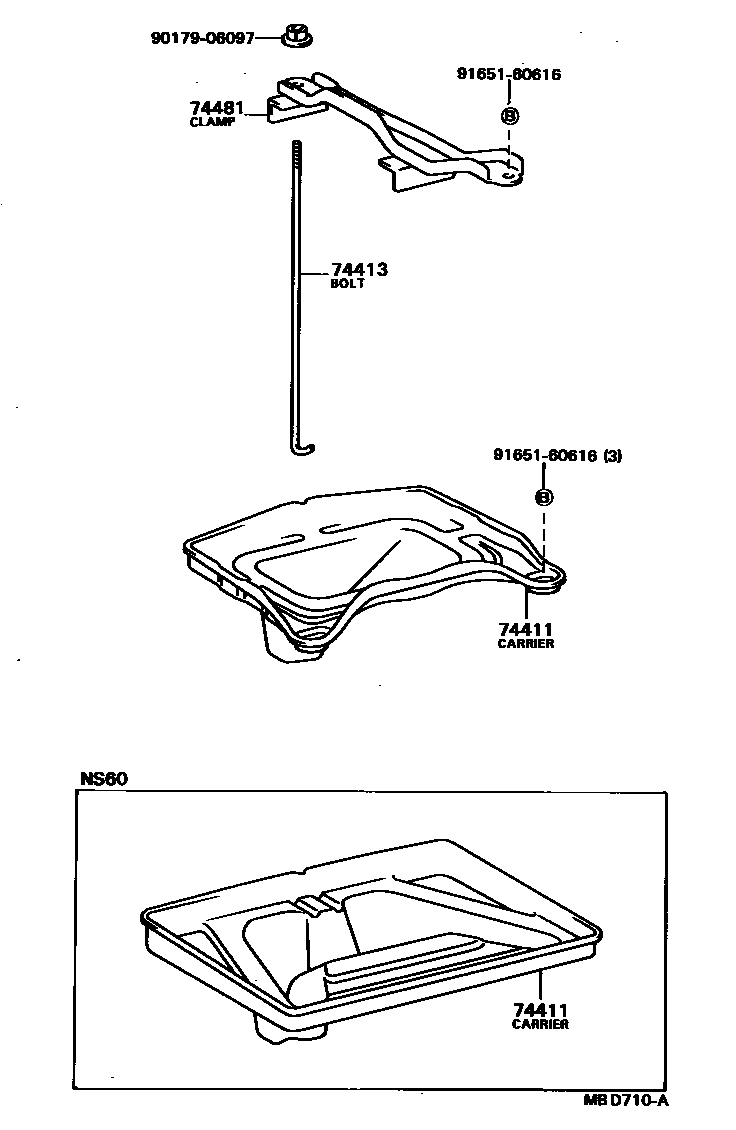

Parts diagram

74411CARRIER, BATTERY

main74431-16020i198208-198801

34B19R(NS40ZA),28B19R(NS40S)

main74431-16030i198208-198801

46B24R(NS60)

74413BOLT, BATTERY CLAMP

main74451-14010i198208-198301

main74451-16010i198301-198801

74481CLAMP, BATTERY HOLD DOWN

main74404-16030i198208-198801

9017906097

main90179-06097

9165160616

main91651-60616

5 parts on this diagram · 1 diagram in section
