FRONT DOOR LOCK & HANDLE

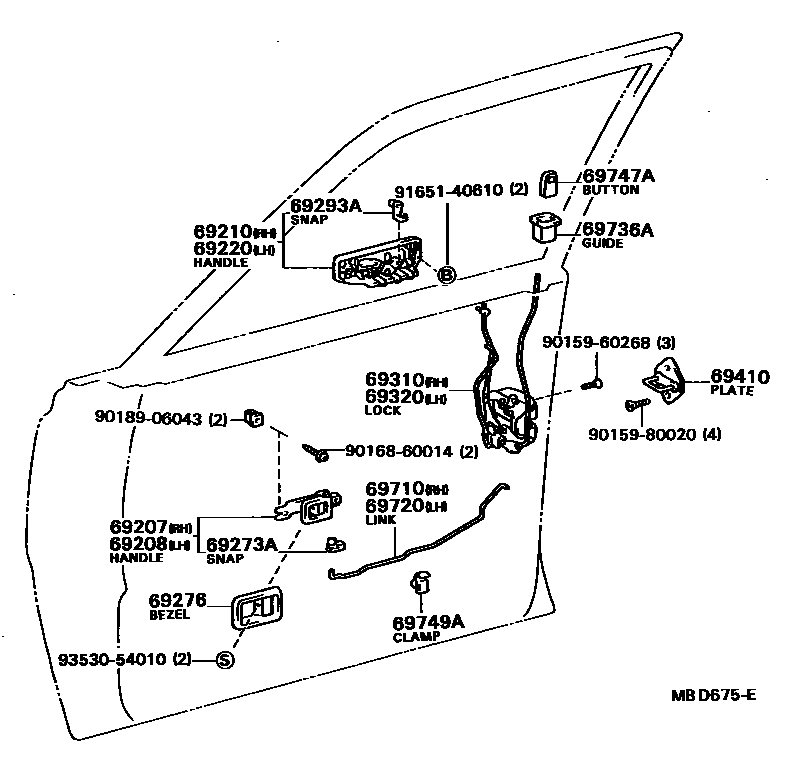

Parts diagram
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69206-16040-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub69206-16040
main69206-16040-03i198208-198408
GRAY,GRAY,TRIM1#
sub69206-16040
main69206-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub69206-16040
main69206-16040-06i198208-198408
BROWN,BROWN,TRIM4#
sub69206-16040
main69206-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub69206-16040
main69206-16040-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub69206-16040
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69205-16040-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub69205-16040
main69205-16040-03i198208-198408
GRAY,GRAY,TRIM1#
sub69205-16040
main69205-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub69205-16040
main69205-16040-06i198208-198408
BROWN,BROWN,TRIM4#
sub69205-16040
main69205-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub69205-16040
main69205-16040-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub69205-16040
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-16040i198208-198801
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-16040i198208-198801
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
main69759-14050i198208-198801
RH
main69759-24070i198208-198801
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
main69277-32020-01i198605-198801
BLACK,NEW BLACK,TRIM2#
sub69277-32020
sub69277-89104
main69277-32020-06i198208-198408
BROWN,BROWN,TRIM4#
sub69277-32020
sub69277-89104
main69277-32020-10i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub69277-32020
sub69277-89104
main69277-32020-13i198208-198408
GRAY,GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-32020-33i198408-198605
GRAY,GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-32020-65i198408-198605
BEIGE,BEIGE,TRIM4#
sub69277-32020
sub69277-89104
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-16030i198208-198801
LH
main69293-16040i198208-198801
RH
69310LOCK ASSY, FRONT DOOR, RH
main69310-16070i198408-198801
AISHIN
sub69310-16120
main69310-16080i198408-198801
MITSUI
main69310-16120i198208-198408
69320LOCK ASSY, FRONT DOOR, LH
main69320-16070i198408-198801
AISHIN
sub69320-16120
main69320-16080i198408-198801
MITSUI
main69320-16120i198208-198408
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-12050i198408-198801
MITSUI
main69410-14040i198208-198408
MITSUI
main69410-14050i198208-198408
AISHIN
sub69410-20070
main69410-87001i198408-198801
AISHIN
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
main69711-16040i198208-198801
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
main69712-16040i198208-198801
69736AGUIDE, FRONT DOOR LOCK LINK
main69736-12030i198408-198801
main69736-22021i198208-198408
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
main69741-32010-01i198208-198505
BLACK,BLACK,TRIM2#
sub69741-32010
sub69741-90K00
main69741-90K00-01i198505-198801
BLACK,BLACK,TRIM2#
sub69741-90K00
sub69741-89102
sub69741-12040
sub69741-89104
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-30020i198208-198801
9015960268
main90159-60268
9015980020
main90159-80020
9016860014
main90168-60014
9018906043
main90189-06043
9165140610
main91651-40610
9353054010
main93530-54010

21 parts on this diagram · 1 diagram in section
