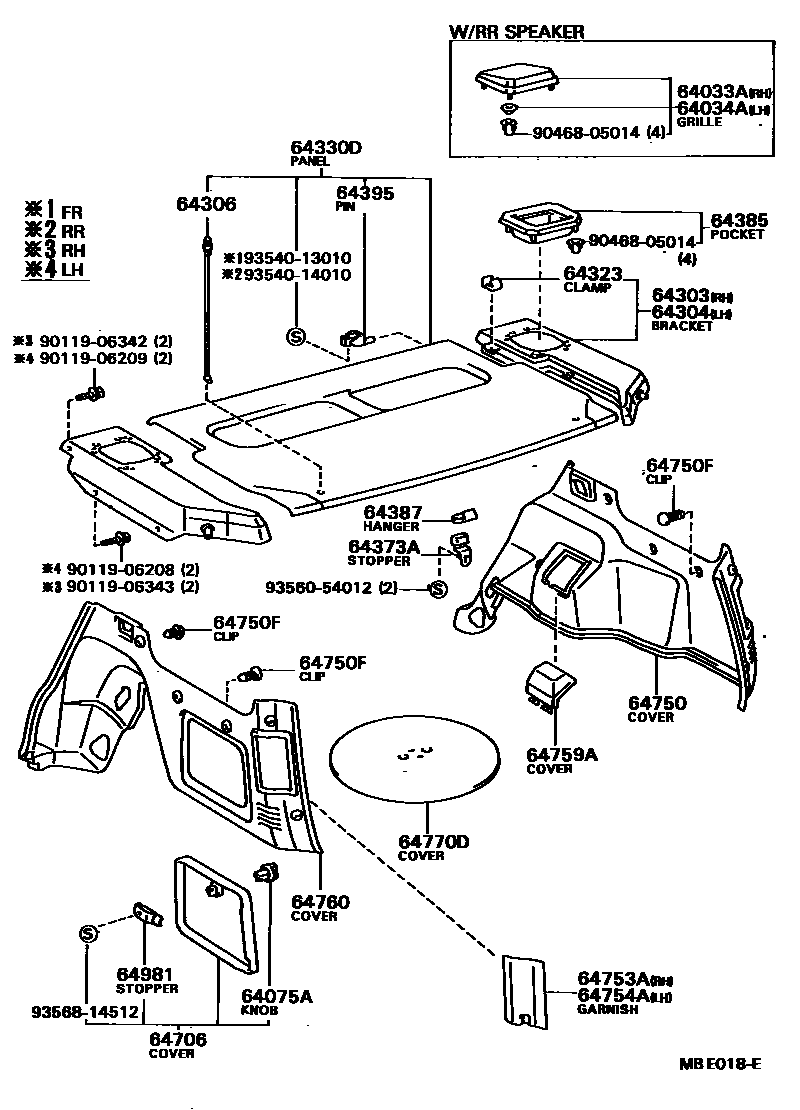

DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
64075AKNOB, DECK TRIM WASHER COVER
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
sub64306-12030
64323CLAMP, PACKAGE TRAY TRIM, NO.1
RH
RH,RV-SPECIAL
LH,RV-SPECIAL
LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64373ASTOPPER, PACKAGE TRAY TRIM
RV-SPECIAL
64385POCKET, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
RV-SPECIAL
64395PIN, PACKAGE TRAY TRIM HINGE
RR LH
RV-SPECIAL,RR LH
RR RH
RV-SPECIAL,RR RH
RV-SPECIAL,FR
FR
64706COVER SUB-ASSY, QUARTER TRIM, JACK
64750PANEL ASSY, DECK SIDE TRIM, RH
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64753AGARNISH, DECK SIDE, REAR, RH
64754AGARNISH, DECK SIDE, REAR, LH
64759ACOVER, SHOCK ABSORBER HEAD
64760PANEL ASSY, DECK SIDE TRIM, LH
64770DCOVER ASSY, SPARE WHEEL
64981STOPPER, WASHER TANK COVER
9011906208
main90119-06208
9011906209
main90119-06209
9011906342
main90119-06342
9011906343
main90119-06343
9046805014
main90468-05014
9354013010
main93540-13010
9354014010
main93540-14010
9356054012
main93560-54012
9356814512
main93568-14512
30 parts on this diagram · 1 diagram in section
