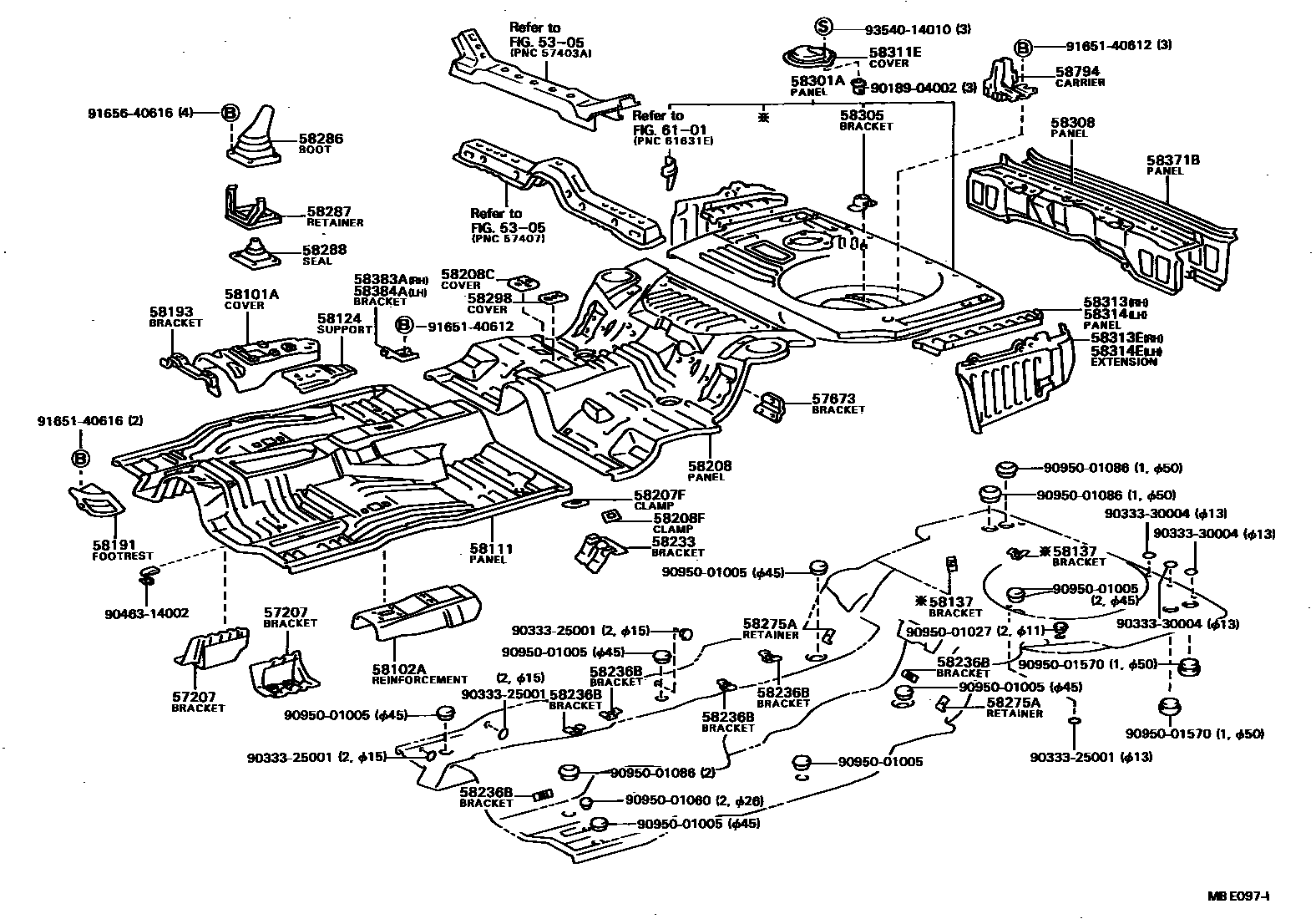

FLOOR PAN & LOWER BACK PANEL
5305
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58101ACOVER, TRANSMISSION AUXILIARY
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58124SUPPORT, TRANSFER LEVER
58137BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58208CCOVER, CENTER FLOOR HOLE
58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58233BRACKET, EXHAUST PIPE MOUNTING
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58298COVER, CENTER FLOOR HOLE, NO.2
58301APANEL SUB-ASSY, REAR FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58311ECOVER, REAR FLOOR SERVICE HOLE
58313PANEL, REAR FLOOR SIDE, RH
58313EEXTENSION, REAR FLOOR SIDE PANEL, RH
58314PANEL, REAR FLOOR SIDE, LH
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58371BPANEL, BODY LOWER BACK, OUTER
58383ABRACKET, REAR SEAT SUPPORT, RH
58384ABRACKET, REAR SEAT SUPPORT, LH
58794CARRIER, JACK
6101
9018904002
9033325001
9033330004
9046314002
9095001005
9095001027
9095001060
9095001086
9095001570
9165140612
9165140616
9165640616
9354014010
47 parts on this diagram · 1 diagram in section
