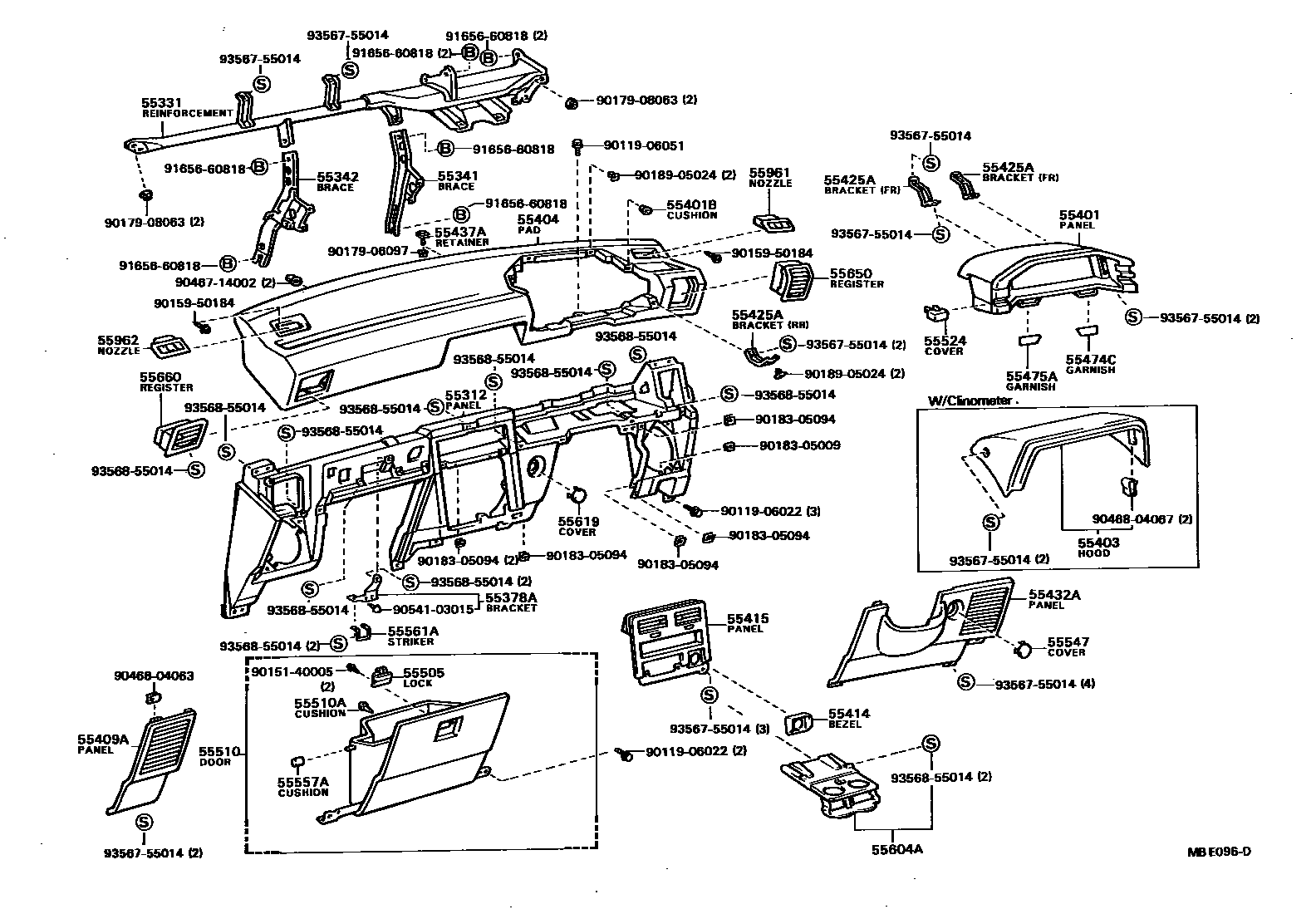

INSTRUMENT PANEL & GLOVE COMPARTMENT

55312PANEL, INSTRUMENT, LOWER

main55312-16010-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55312-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55312-16010-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55312-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55312-16010-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55312-16010-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16010iAL25198208-198309

main55330-16011iAL25198309-198801

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-16030iAL25198208-198801

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-16030iAL25198208-198801

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-16010iAL25198208-198801

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-16050-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55404-16050-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55404-16050-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55404-16050-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55404-16050-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55404-16050-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-16010×2iAL25198208-198801

55403HOOD SUB-ASSY, METER

main55403-16010-03iAL25..AV1198310-198408

RV-SPECIAL,GRAY,GRAY,TRIM1#

main55403-16010-06iAL25..AV2198208-198408

BROWN,BROWN,TRIM4#

main55403-16020-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55403-16020-03iAL25198408-198605

GRAY,GRAY,TRIM1#

main55403-16020-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55403-16020-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-16040-03iAL25..AV1198208-198408

GRAY,GRAY,TRIM1#

main55401-16040-06iAL25..AV1198208-198408

BROWN,BROWN,TRIM4#

main55401-16040-13iAL25..AV1198408-198605

GRAY,GRAY,TRIM1#

main55401-16040-15iAL25..AV1198605-198801

BEIGE,DARK BEIGE,TRIM4#

main55401-16060-01iAL25198605-198801

W/CLINOMETER,BLACK,BLACK,TRIM2#

main55401-16060-03iAL25..AV1198310-198408

RV-SPECIAL,GRAY,GRAY,TRIM1#

main55401-16060-05iAL25..AV2198408-198605

W/CLINOMETER,BEIGE,BEIGE,TRIM4#

main55401-16060-06iAL25..AV2198208-198408

BROWN,BROWN,TRIM4#

main55401-16060-13iAL25198408-198605

W/CLINOMETER,GRAY,GRAY,TRIM1#

main55401-16060-15iAL25..AV2198605-198801

W/CLINOMETER,BEIGE,DARK BEIGE,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55409-16010-01iAL25..AV1198605-198801

BLACK,BLACK,TRIM2#

main55409-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55409-16010-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55409-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55409-16010-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55409-16030-01iAL25..AV2198605-198801

BLACK,BLACK,TRIM2#

main55409-16030-05iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-16030iAL25..AV1198208-198408

main55477-16040iAL25..AV2198208-198408

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-16010iAL25198208-198408

sub55477-10050

main55405-16011iAL25198408-198602

main55405-16012iAL25198602-198605

main55405-16013iAL25198605-198801

55425ABRACKET, METER HOOD SET

main55425-16030×2iAL25198208-198801

FR

main55426-16030×2iAL25198208-198801

RR

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-16020-01iAL25..AV1198605-198801

BLACK,BLACK,TRIM2#

main55432-16020-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55432-16020-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55432-16020-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55432-16020-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55432-16100-01iAL25..AV2198605-198801

BLACK,BLACK,TRIM2#

main55432-16100-05iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-16020iAL25198208-198801

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-16010iAL25..AV1198310-198801

RV-SPECIAL

main55474-16030iAL25..AV1198208-198801

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-16010iAL25..AV2198208-198801

main55475-16030iAL25..AV1198208-198801

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55560-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55560-16020-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55560-16020-03iAL25198408-198605

GRAY,GRAY,TRIM1#

main55560-16020-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55560-16020-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16040-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55550-16040-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55550-16040-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55550-16040-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55550-16040-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55550-16040-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×2iAL25198208-198801

55524COVER, SWITCH BACE HOLE

main55524-16010iAL25..AV1198208-198801

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-16010-01iAL25..AV1198605-198801

BLACK,BLACK,TRIM2#

main55547-16010-03iAL25198305-198408

GRAY,GRAY,TRIM1#

main55547-16010-06iAL25198305-198408

BROWN,BROWN,TRIM4#

main55547-16010-13iAL25..AV1198408-198605

GRAY,GRAY,TRIM1#

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iAL25198208-198312

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-16020iAL25198212-198801

main55561-32010iAL25198208-198212

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-19025iAL25..3FC198605-198801

55619COVER, SWITCH HOLE

main55617-10010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55617-10010-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55617-10010-11iAL25198605-198801

BLACK,BLACK,TRIM2#

main55617-10010-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

main55617-10010-23iAL25198408-198605

GRAY,GRAY,TRIM1#

main55617-10010-36iAL25198208-198408

BROWN,BROWN,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16030-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55650-16030-05iAL25..AV2198408-198602

BEIGE,BEIGE,TRIM4#

main55650-16030-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55650-16030-13iAL25198408-198602

GRAY,GRAY,TRIM1#

main55650-16031-03iAL25198602-198605

GRAY,GRAY,TRIM1#

main55650-16031-05iAL25..AV2198602-198605

BEIGE,BEIGE,TRIM4#

main55650-16032-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55650-16032-05iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55660-16010-05iAL25..AV2198408-198602

BEIGE,BEIGE,TRIM4#

main55660-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55660-16010-13iAL25198408-198602

GRAY,GRAY,TRIM1#

main55660-16011-03iAL25198602-198605

GRAY,GRAY,TRIM1#

main55660-16011-05iAL25..AV2198602-198605

BEIGE,BEIGE,TRIM4#

main55660-16012-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55660-16012-05iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-16010-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55961-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55961-16010-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55961-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55961-16010-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55961-16010-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-16010-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main55962-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main55962-16010-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main55962-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main55962-16010-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main55962-16010-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

9011906022

main90119-06022

9011906051

main90119-06051

9015140005

main90151-40005

9015950184

main90159-50184

9017906097

main90179-06097

9017908063

main90179-08063

9018305009

main90183-05009

9018305094

main90183-05094

9018905024

main90189-05024

9046714002

main90467-14002

9046804063

main90468-04063

9046804067

main90468-04067

9054103015

main90541-03015

9165660818

main91656-60818

9356755014

main93567-55014

9356855014

main93568-55014

46 parts on this diagram · 1 diagram in section
