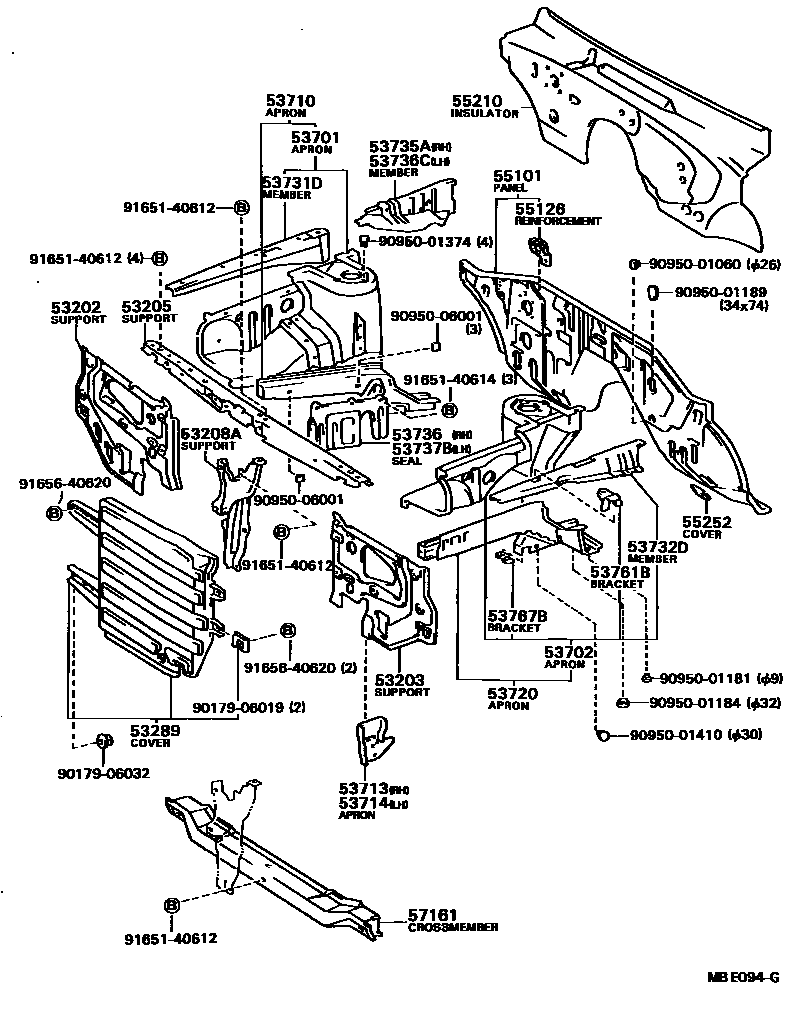

FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-16030iAL25198208-198801

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-16030iAL25198208-198605

sub53203-16040

main53203-16040iAL25198605-198801

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-16010iAL25198208-198605

sub53205-16040

main53205-16030iAL25..TCBR198408-198801

main53205-16040iAL25..AV1198605-198801

sub53205-16020

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-16010iAL25198208-198605

sub53208-16020

main53208-16020iAL25198605-198801

53289COVER, RADIATOR SIDE BAFFLE

main53289-16020iAL25198208-198801

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16060iAL25198208-198801

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16060iAL25198208-198801

sub53702-16050

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-16902iAL25198208-198801

sub53701-16903

53713APRON, FENDER SIDE, RH

main53713-16030iAL25198208-198605

sub53713-16040

main53713-16040iAL25198408-198801

*GIS

53714APRON, FENDER SIDE, LH

main53714-16030iAL25198208-198605

sub53714-16040

main53714-16040iAL25198408-198801

*GIS

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-16902iAL25198208-198402

sub53702-16905

main53702-16905iAL25198402-198801

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-16010iAL25198208-198801

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-16010iAL25198208-198801

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-16010iAL25198208-198801

53736SEAL, FRONT FENDER APRON, RH

main53736-16030iAL25198208-198801

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53706-16010iAL25198208-198512

main53736-16040iAL25198512-198801

sub53706-16010

53737BSEAL, FRONT FENDER APRON, LH

main53737-16030iAL25198208-198801

53761BBRACKET, BATTERY CLAMP MOUNTING

main53761-16030iAL25198208-198801

53767BBRACKET, BATTERY WIRRING HARNESS

main53767-20040iAL25198208-198801

55101PANEL SUB-ASSY, DASH

main55101-16130iAL25..6F198208-198408

main55101-16150iAL25..3FC198310-198408

main55101-16320iAL25..6F198408-198801

main55101-16330iAL25..3FC198408-198801

55126REINFORCEMENT, CLUTCH WIRE SUPPORT

main55126-16060iAL25..6F198502-198605

55210INSULATOR ASSY, DASH PANEL

main55210-16030iAL25198208-198408

main55210-16050iAL25198408-198801

55252COVER, DASH PANEL HOLE

main55129-16010iAL25198208-198801

57161CROSSMEMBER, FRONT

main57104-16030iAL25198208-198601

sub57104-16040

main57104-16040iAL25198601-198801

9017906019

main90179-06019

9017906032

main90179-06032

9095001060

main90950-01060

9095001181

main90950-01181

9095001184

main90950-01184

9095001189

main90950-01189

9095001374

main90950-01374

9095001410

main90950-01410

9095006001

main90950-06001

9165140612

main91651-40612

9165140614

main91651-40614

9165640620

main91656-40620

36 parts on this diagram · 1 diagram in section
