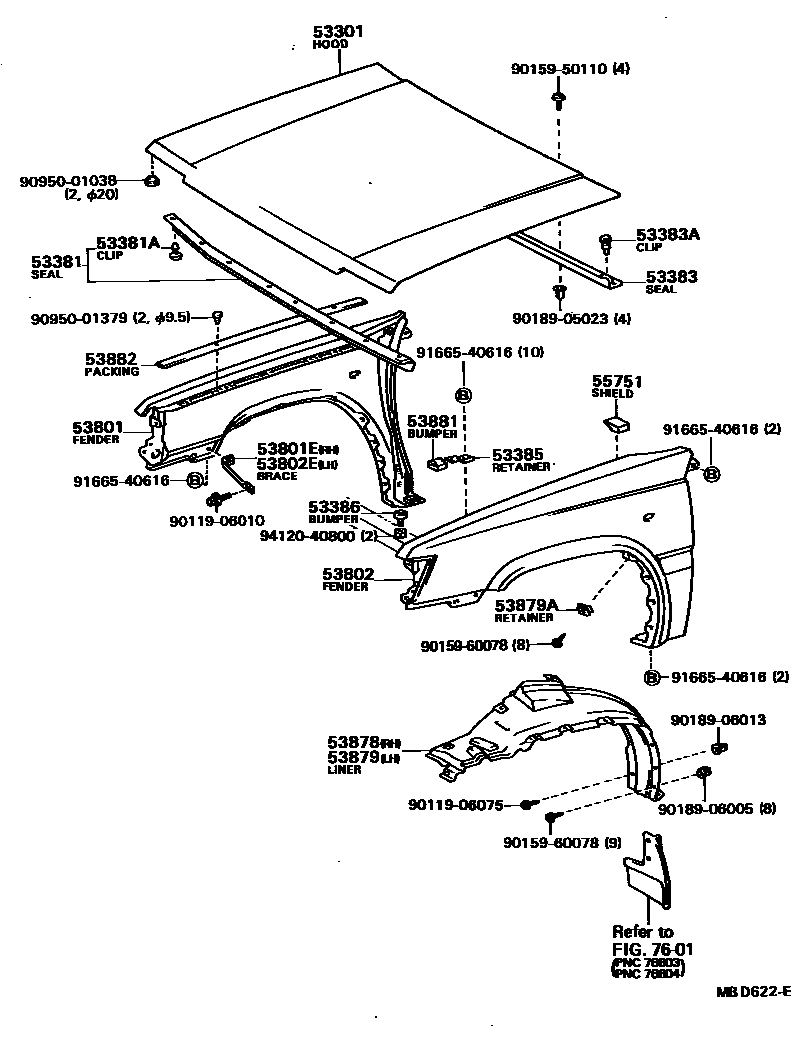

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-16030iAL25198208-198604

sub53301-16040

main53301-16100iAL25198604-198801

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-16020iAL25198208-198801

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iAL25198208-198801

53383SEAL, HOOD TO COWL TOP

main53383-16020iAL25198208-198801

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-06005×2iAL25198208-198801

53385RETAINER, HOOD, BUMPER

main53385-14010×2iAL25198208-198801

LH

main53386-14010×2iAL25198208-198801

RH

53386BUMPER, HOOD, REAR

main53382-12040×2iAL25198208-198801

53801FENDER SUB-ASSY, FRONT RH

main53801-16090iAL25198208-198801

main53801-16220iAL25198305-198801

W/DOOR MIRROR

53801EBRACE, FRONT FENDER TO APRON, RH

main53835-16010iAL25198208-198801

53802FENDER SUB-ASSY, FRONT LH

main53802-16110iAL25198208-198801

sub53802-16120

main53802-16240iAL25198305-198801

W/DOOR MIRROR

sub53802-16120

53802EBRACE, FRONT FENDER TO APRON, LH

main53836-16010iAL25198208-198801

53878LINER, FRONT FENDER, RH

main53875-16020iAL25198208-198801

53879LINER, FRONT FENDER, LH

main53876-16020iAL25198208-198801

53879ARETAINER, FRONT FENDER LINER

main53879-14010×8iAL25198208-198801

53881BUMPER, FENDER TO HOOD

main53384-16020×4iAL25198208-198801

sub53384-16010

53882PACKING, FRONT FENDER MAIN

main53882-16020×2iAL25198208-198801

55751SHIELD, COWL VENTILATOR SPLASH

main55751-12040×2iAL25198208-198801

7601

9011906010

main90119-06010

9011906075

main90119-06075

9015950110

main90159-50110

9015960078

main90159-60078

9018905023

main90189-05023

9018906005

main90189-06005

9018906013

main90189-06013

9095001038

main90950-01038

9095001379

main90950-01379

9166540616

main91665-40616

9412040800

main94120-40800

29 parts on this diagram · 1 diagram in section
