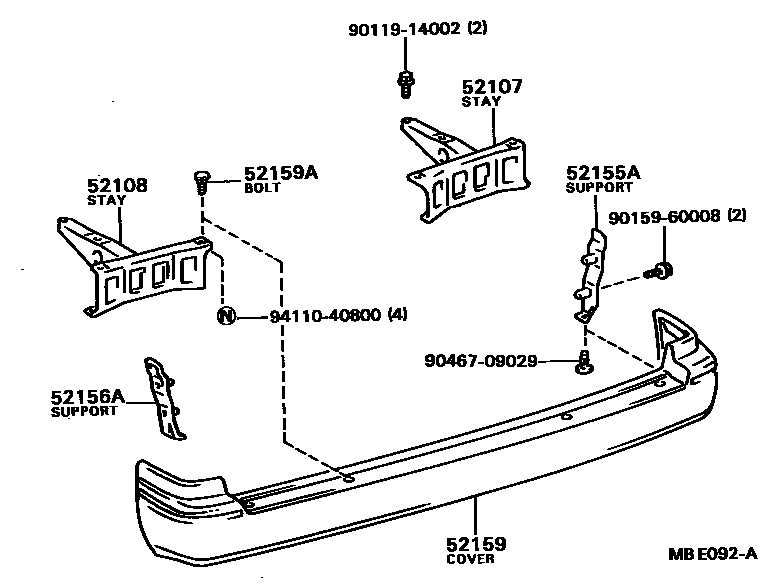

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-16080iAL25..AV1198208-198801

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-16080iAL25..AV1198208-198801

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-16050iAL25..AV2198208-198801

main52155-16050iAL25..AV1198304-198801

RV-SPECIAL

main52155-16060iAL25..AV1198208-198801

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-16050iAL25..AV2198208-198801

main52156-16050iAL25..AV1198304-198801

RV-SPECIAL

main52156-16060iAL25..AV1198208-198801

52159COVER, REAR BUMPER

main52159-16110iAL25..AV2198208-198801

BLACK

main52159-16110iAL25..AV1198304-198801

RV-SPECIAL

main52159-16120-01iAL25..AV1198408-198801

BLACK,BLACK

sub52159-16120

main52159-16120-03iAL25..AV1198208-198301

DARK GRAY,GRAY

sub52159-16120

main52159-16120-23iAL25..AV1198301-198408

OFF BLACK,GRAY

sub52159-16120

main52159-16150-04iAL25..AV2198310-198605

BLUE-M,BLUE,2J6

sub52159-16905

main52159-16150-06iAL25..AV2198310-198605

DARK BROWN-M,BROWN,2R7

sub52159-16905

main52159-16150-07iAL25..AV2198310-198408

DARK GREEN,GREEN,2J9

sub52159-16905

main52159-16150-08iAL25..AV2198511-198801

WHITE LIMITED,WHITE,WHITE

sub52159-16905

main52159-16150-14iAL25..AV2198605-198801

BLUE-M,GRAYISH BLUE M,24B

sub52159-16905

main52159-16150-16iAL25..AV2198605-198801

BROWN-M,BROWN METALLIC,25B

sub52159-16905

main52159-16150-17iAL25..AV2198408-198508

DARK GREEN-M,PARK GREEN METALLIC,2T4

sub52159-16905

main52159-16150-27iAL25..AV2198509-198801

GREEN-M,GREEN METALLIC,2Y6 ,26B

sub52159-16905

52159ABOLT(FOR REAR BUMPER COVER)

main90112-08032-01iAL25..AV1198408-198801

BLACK,BLACK

sub90112-08032

sub90112-08058

main90112-08032-13iAL25..AV1198208-198301

DARK GRAY,GRAY

sub90112-08032

sub90112-08058

main90112-08032-23iAL25..AV1198301-198408

OFF BLACK,GRAY

sub90112-08032

sub90112-08058

9011914002

main90119-14002

9015960008

main90159-60008

9046709029

main90467-09029

9411040800

main94110-40800

10 parts on this diagram · 2 diagrams in section
