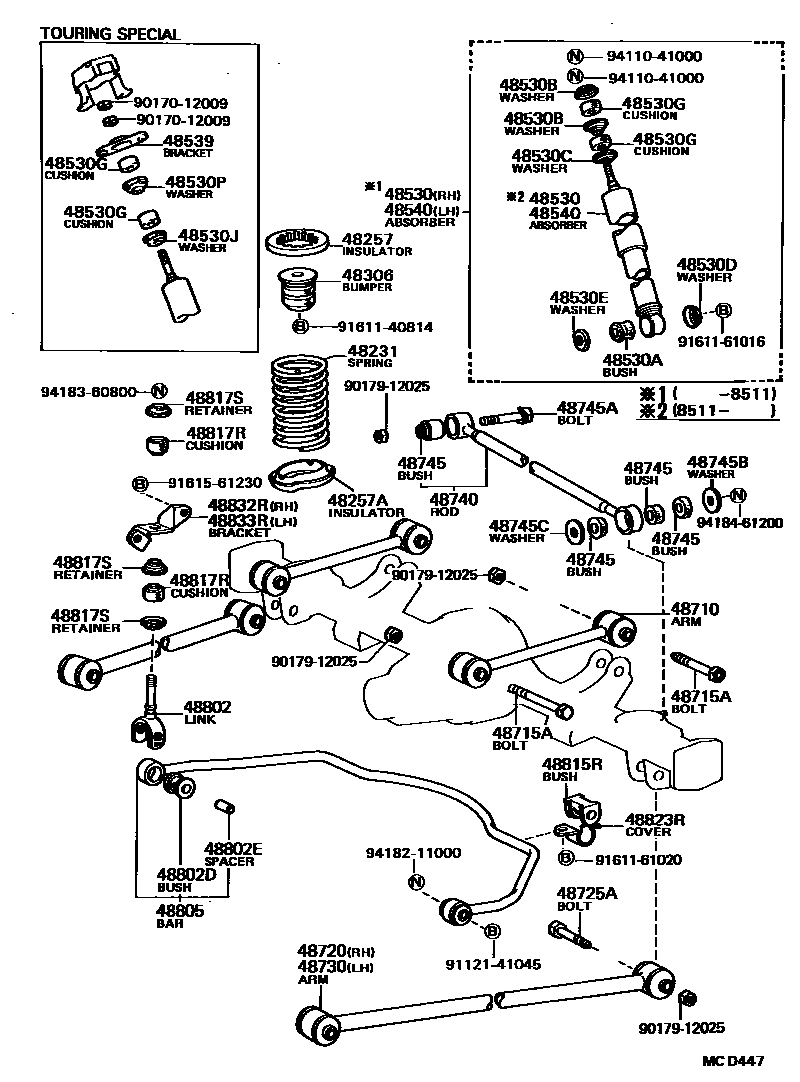

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-80054
sub48531-80036
sub48531-80310
sub48531-80315
sub48531-80320
sub48531-80202
sub48531-80203
sub48531-80204
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
RH
LH
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
UPR
LWR
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48539BRACKET, ACTUATOR SUPPORT, RR
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-80054
sub48531-80036
sub48531-80310
sub48531-80315
sub48531-80320
sub48531-80202
sub48531-80203
sub48531-80204
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
L=77
L=149
48725ABOLT(FOR LOWER CONTROL ARM)
L=77
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
ROD X BODY
ROD X HOUSING,L=15
ROD X HOUSING,L=12
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
sub48815-20021
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
T=1.2
T=1.0
48823RCOVER, STABILIZER LINK(FOR REAR)
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
9017012009
main90170-12009
9017912025
main90179-12025
9112141045
main91121-41045
9161140814
main91611-40814
9161161016
main91611-61016
9161161020
main91611-61020
9161561230
main91615-61230
9411041000
main94110-41000
9418211000
main94182-11000
9418360800
main94183-60800
9418461200
main94184-61200
46 parts on this diagram · 1 diagram in section
