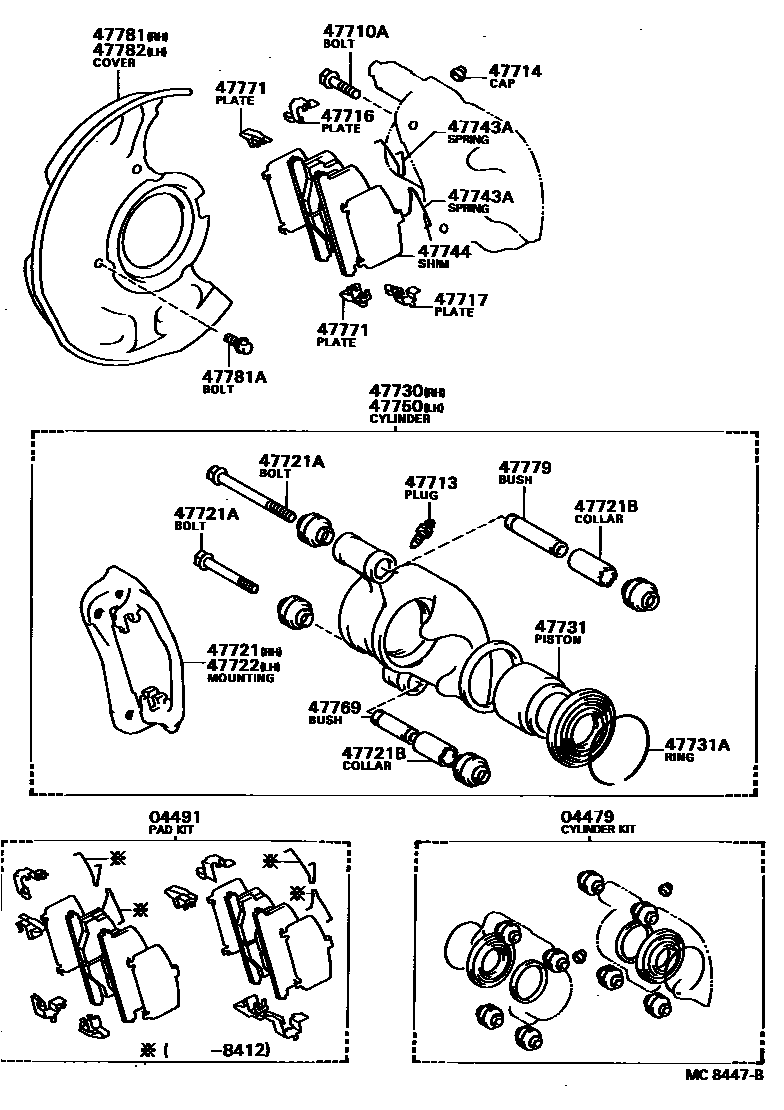

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-16020iAL25198208-198501

main04479-16021iAL25198501-198801

04491PAD KIT, DISC BRAKE, FRONT

main04491-16030iAL25198208-198412

main04491-16031iAL25198412-198801

sub04491-16200

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAL25198208-198801

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAL25198208-198801

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAL25198208-198801

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010×4iAL25198208-198801

sub47716-32031

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010×4iAL25198208-198801

sub47717-32031

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-16010iAL25198208-198801

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAL25198208-198801

main90119-09004×2iAL25198208-198801

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004×2iAL25198208-198705

L=12

main90387-15005×2iAL25198208-198705

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-16010iAL25198208-198801

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-16040iAL25198208-198801

47731PISTON, FRONT DISC BRAKE

main47731-16020×2iAL25198208-198801

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAL25198208-198801

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-16010iAL25198208-198412

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×4iAL25198208-198801

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-16040iAL25198208-198801

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAL25198705-198801

main47769-16010×2iAL25198208-198705

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010×4iAL25198208-198801

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAL25198208-198801

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-16030iAL25198208-198401

main47781-16031iAL25198401-198801

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06196×6iAL25198208-198801

sub91611-G0612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-16030iAL25198208-198401

main47782-16031iAL25198401-198801

23 parts on this diagram · 2 diagrams in section
