BRAKE BOOSTER & VACUUM TUBE

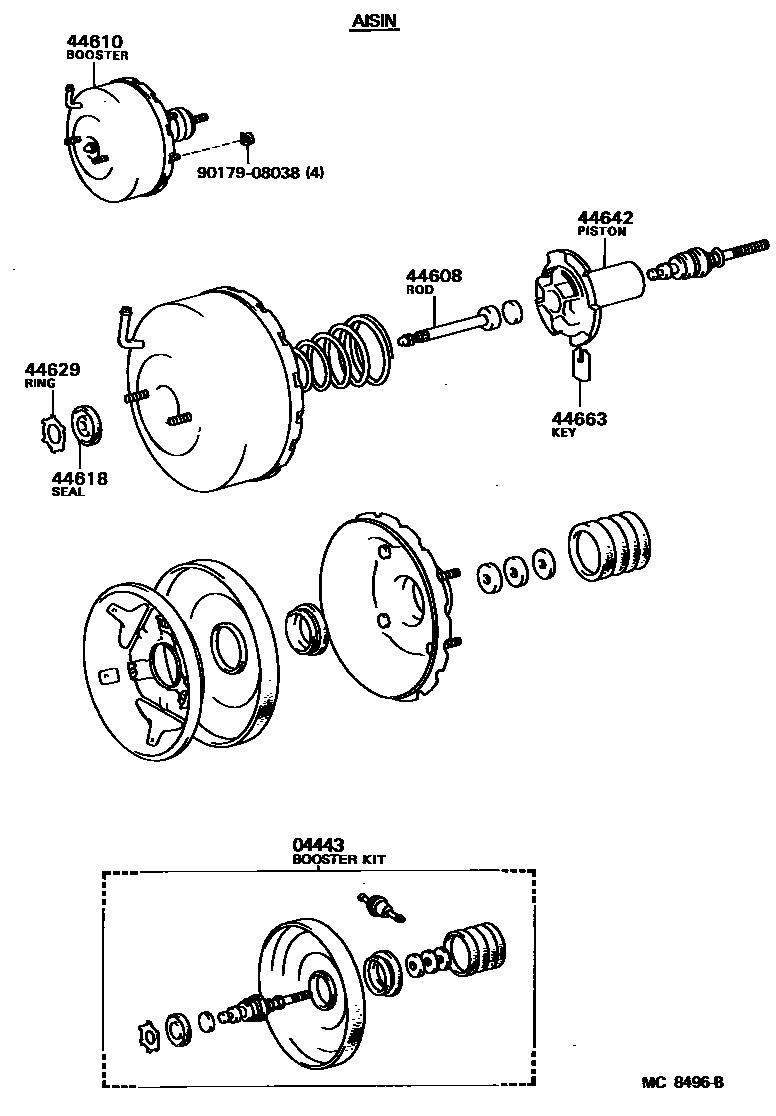

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-16040i198208-198408

AISIN

main04443-16041i198408-198604

AISIN

main04443-16050i198208-198801

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520i198408-198604

AISIN

main44606-32010i198208-198408

AISIN

main44608-32020i198208-198801

JKC

44610BOOSTER ASSY, BRAKE

main44610-16051i198408-198604

AISIN

main44610-16060i198208-198408

44618SEAL, BOOSTER BODY

main44621-28120i198208-198604

44629RING, CIRCULAR INTERNAL

main44628-28120i198208-198604

44642PISTON, BRAKE BOOSTER

main44642-16050i198208-198604

44663KEY, VALVE STOPPER

main44635-28120i198208-198604

9017908038

main90179-08038

8 parts on this diagram · 3 diagrams in section
