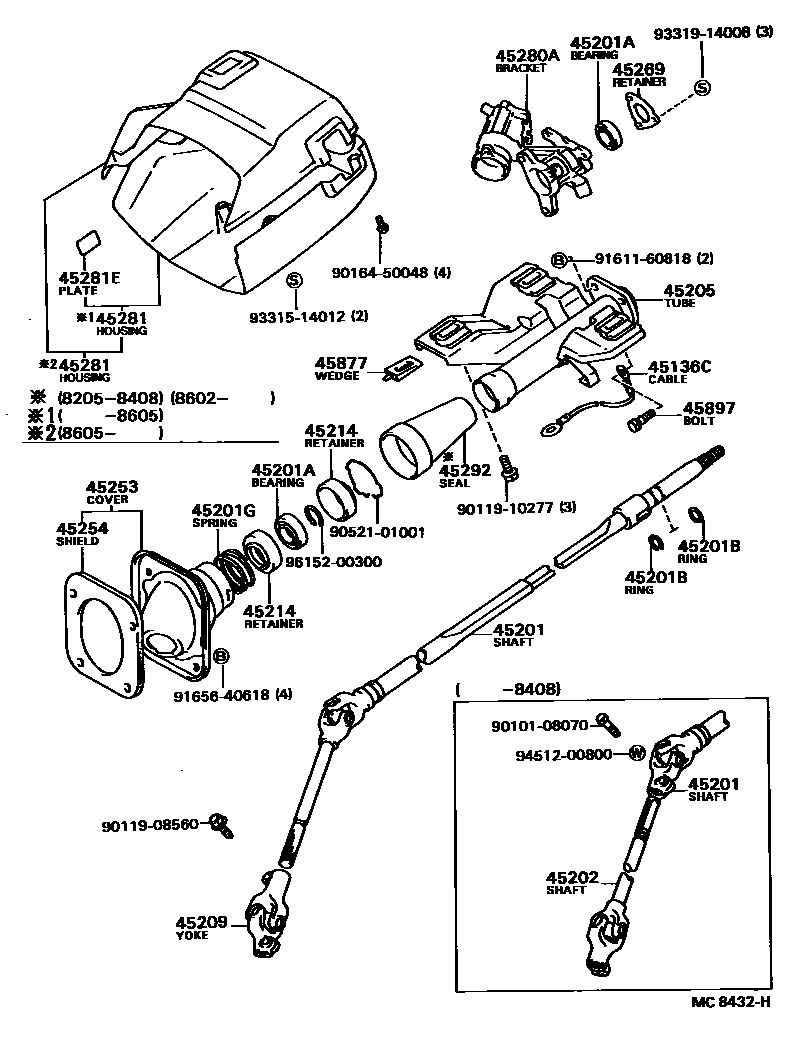

STEERING COLUMN & SHAFT
45136CCABLE, BOND(FOR HORN EARTH)
45201SHAFT SUB-ASSY, STEERING MAIN
W/POWER STEERING
45201ABEARING(FOR STEERING MAIN SHAFT)
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
W/POWER STEERING
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
W/POWER STEERING
45214RETAINER, MAIN SHAFT SPRING
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
45281EPLATE, SAFETY CAUTION
45292SEAL, MAIN SHAFT LOWER DUST
45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9011908560
main90119-08560
9011910277
main90119-10277
9016450048
main90164-50048
9052101001
main90521-01001
9161160818
main91611-60818
9165640618
main91656-40618
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
9615200300
main96152-00300
29 parts on this diagram · 1 diagram in section
