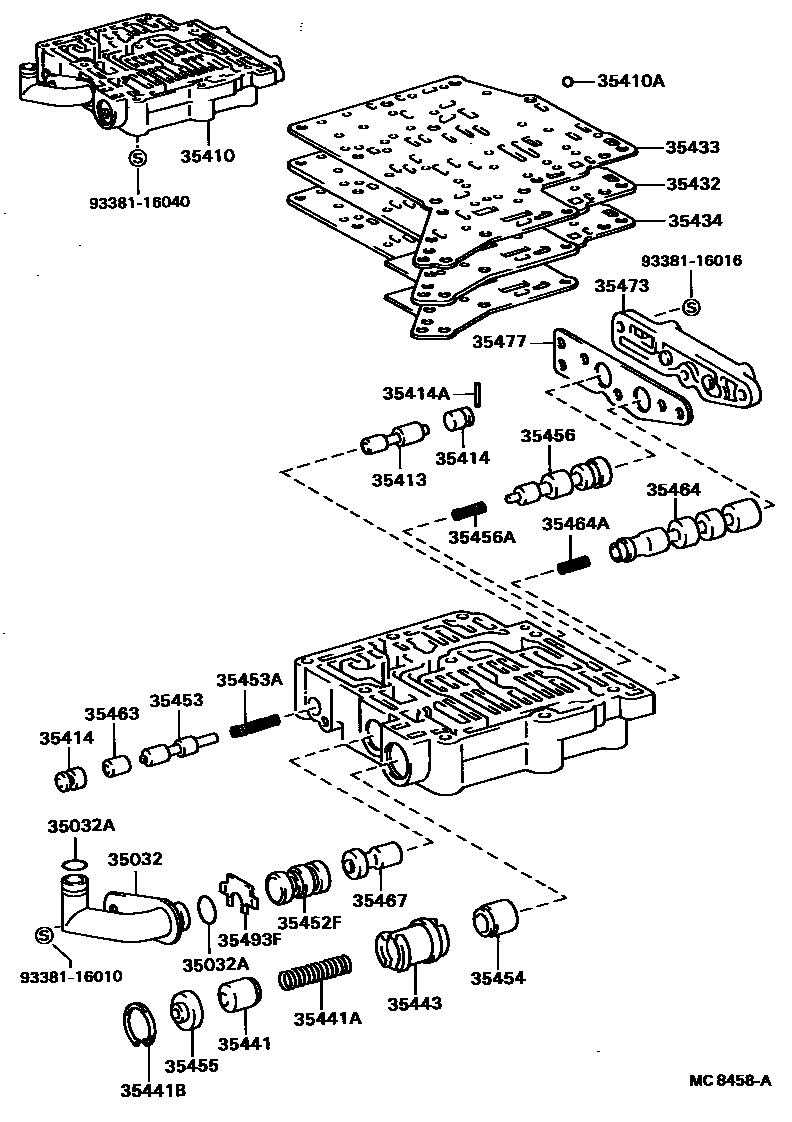

VALVE BODY & OIL STRAINER (ATM)
35032TUBE SUB-ASSY, OIL PUMP SUCTION, NO.2
35032ARING, O (FOR OIL PUMP SUCTION NO.2 TUBE)
35410BODY ASSY, TRANSMISSION VALVE
35410ABALL (FOR REVERSE SHIFT RESTRICT)
35413VALVE, CUT BACK
35414PLUG, CUT BACK
35414AROLLER (FOR CUT BACK PLUG)
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
sub35433-16011
35434GASKET, VALVE BODY, NO.2
sub35434-16011
35441VALVE, LOW COAST SHIFT CONTROL
35441ASPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE)
35441BRING, SNAP (FOR LOW COAST SHIFT CONTROL VALVE)
35443SLEEVE, LOW COAST SHIFT CONTROL VALVE
35452FPLUG, 2-3 SHIFT VALVE
35453VALVE, DETENT REGULATOR
35453ASPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
CW=12.5,WD=1
CW=12.0,WD=1
CW=11.3,WD=1
35454VALVE, LOW COAST SHIFT
35455PLUG, 1-2 SHIFT VALVE LOW
35456VALVE, 2-3 SHIFT
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35463VALVE, DETENT PRESSURE CUT
35464VALVE, 1-2 SHIFT
35464ASPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35467VALVE, INTERMEDIATE SHIFT
35473COVER, TRANSMISSION VALVE BODY
35477GASKET, VALVE BODY COVER
sub35477-16011
35493FSEAT, SHIFT VALVE PLUG
9338116010
main93381-16010
9338116016
main93381-16016
9338116040
main93381-16040
31 parts on this diagram · 3 diagrams in section
