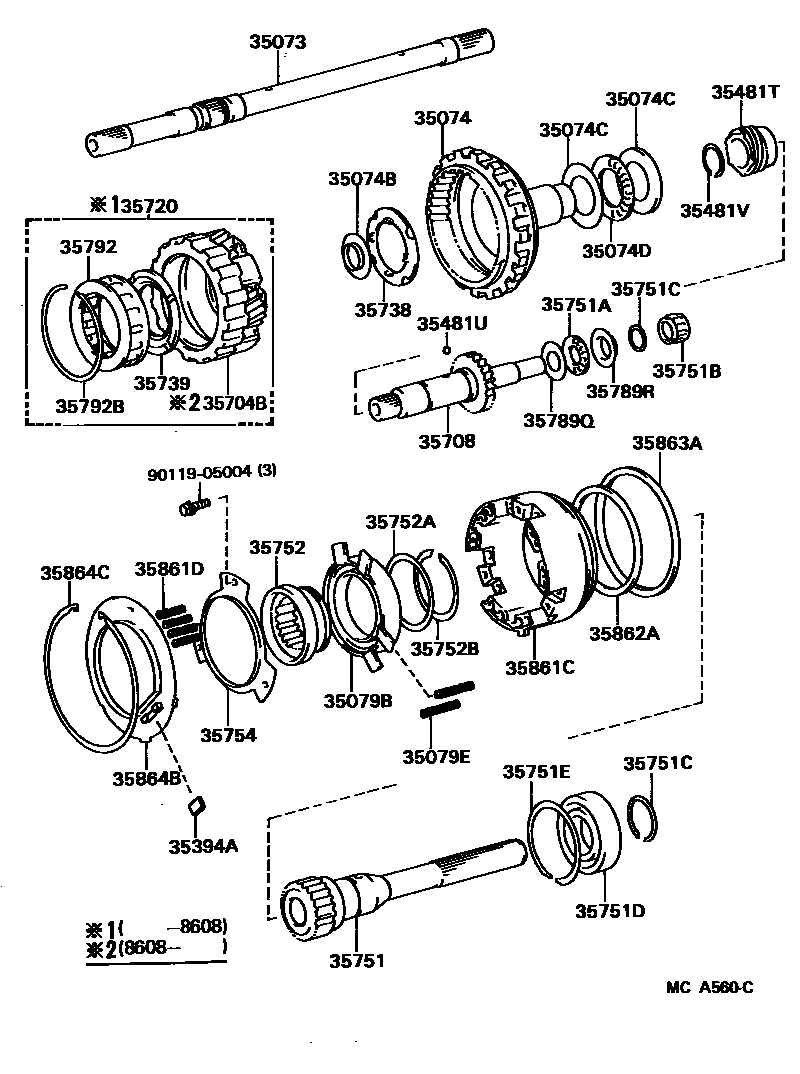

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073SHAFT SUB-ASSY, OUTPUT
35074GEAR SUB-ASSY, REAR PLANETARY RING
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)
FLANGE SIDE
CASE SIDE
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
35079BGUIDE SUB-ASSY, REAR DRIVE CLUTCH SLEEVE
35079ESPRING, COMPRESSION (FOR REAR DRIVE CLUTCH SLEEVE GUIDE)
35394AMAGNET, OIL CLEANER (FOR REAR SERVO)
35481TGEAR, SPEEDMETER DRIVE (ATM)
N=6
35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
35704BGEAR SUB-ASSY, FRONT PLANETARY
35708SHAFT SUB-ASSY, INTERMEDIATE
35720GEAR ASSY, FRONT PLANETARY
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35751SHAFT, REAR OUTPUT
35751ABEARING, THRUST NEEDLE ROLLER (FOR REAR OUTPUT SHAFT)
35751BBEARING, NEEDLE ROLLER (FOR REAR OUTPUT SHAFT)
35751CRING, SHAFT SNAP (FOR REAR OUTPUT SHAFT)
OD=26.6,T=1.0
OD=38,T=1.95
35751DBEARING, RADIAL BALL (FOR REAR OUTPUT SHAFT)
35751ERING, HOLE SNAP (FOR REAR OUTPUT SHAFT)
35752SLEEVE, REAR OUTPUT CLUTCH
35752ASPACER (FOR REAR OUTPUT CLUTCH SLEEVE)
35752BRING, SHAFT SNAP (FOR REAR OUTPUT CLUTCH SLEEVE)
35754RETAINER, SLEEVE GUIDE
35789QRACE, THRUST BEARING (FOR INTERMEDIATE SHAFT)
35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)
35792CLUTCH, 1 WAY, NO.2
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35861CPISTON, REAR SERVO
35861DSPRING, COMPRESSION (FOR REAR SERVO PISTON)
35862ARING, REAR PISTON OIL SEAL, INNER
35863ARING, REAR PISTON OIL SEAL, OUTER
35864BSEAT, REAR SERVO PISTON RETURN SPRING
35864CRING, HOLE SNAP (FOR RR SERVO PISTON RETURN SPRING SEAT)
9011905004
main90119-05004
37 parts on this diagram · 1 diagram in section
