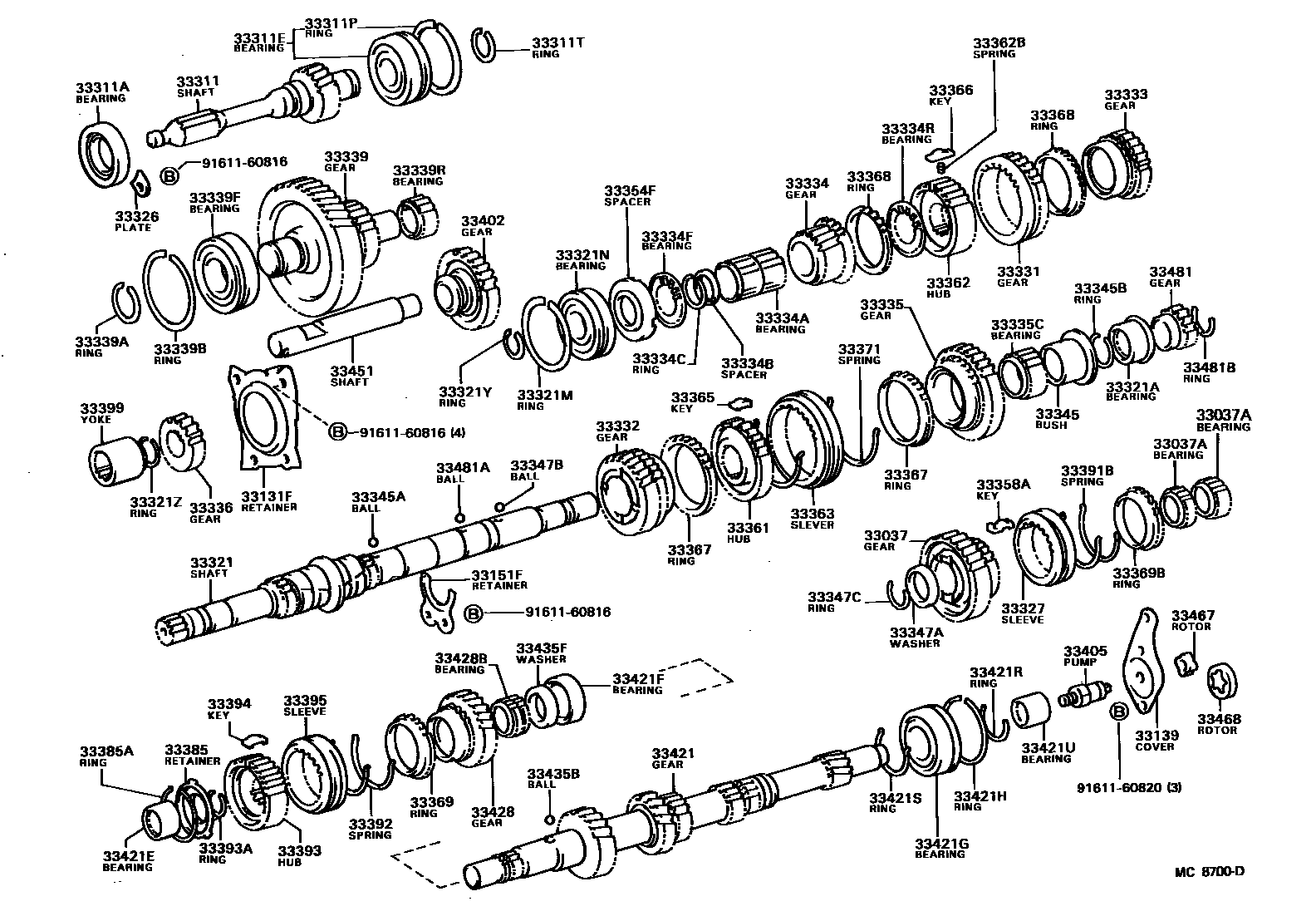

TRANSMISSION GEAR (MTM)
33037GEAR SUB-ASSY, EXTRA LOW
33037ABEARING(FOR EXTRA LOW GEAR)
33131FRETAINER, OUTPUT SHAFT BEARING, FRONT
33139COVER, OIL PUMP(MTM)
33151FRETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-25025
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321MRING, SHAFT SNAP (FOR BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321YRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
33321ZRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33327SLEEVE, TRANSMISSION HUB, NO.4
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33334CRING, SHAFT SNAP (FOR 4TH GEAR THRUST FRONT NEEDLE BEARING)
33334FBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR FRONT)
33334RBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR REAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
sub90520-23044
sub90520-23045
sub90520-23046
sub90520-23047
sub90520-23048
sub90520-23049
sub90520-23050
sub90520-23051
sub90520-23052
sub90520-23053
33339ARING, SHAFT SNAP (FOR IDLER GEAR)
33339BRING, SHAFT SNAP (FOR IDLER GEAR FRONT BEARING)
33339FBEARING, RADIAL BALL (FOR IDLER GEAR FRONT)
33339RBEARING, NEEDLE ROLLER (FOR IDLER GEAR REAR)
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33345BRING, SHAFT SNAP (FOR 1ST GEAR BUSH)
33347AWASHER, EXTRA LOW GEAR THRUST
33347BBALL (FOR EXTRA LOW GEAR THRUST WASHER)
33347CRING, SHAFT SNAP (FOR EXTRA LOW GEAR THRUST WASHER)
33354FSPACER (FOR 4TH GEAR FRONT THRUST BEARING)
33358AKEY, SYNCHROMESH SHIFTING, NO.4
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362BSPRING, COMPRESSION (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33369BRING, SYNCHRONIZER, NO.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33385RETAINER, SHIFTING KEY
33385ARING, HOLE SNAP (FOR 5TH SHIFTING KEY RETAINER)
33391BSPRING, SYNCHROMESH SHIFTING KEY, NO.4
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.80-1.85
T=1.85-1.90
T=1.90-1.95
T=1.95-2.00
T=2.00-2.05
T=2.05-2.10
T=2.10-2.15
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33399YOKE, TRANSMISSION SLEEVE (MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33405SHAFT SUB-ASSY, OIL PUMP DRIVE
33421EBEARING, NEEDLE ROLLER(FOR COUNTER GEAR)
33421FBEARING, NEEDLE ROLLER(FOR COUNTER GEAR FRONT)
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33421HRING, SHAFT SNAP(FOR COUNTER GEAR REAR BEARING)
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33421SRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33421UBEARING(FOR COUNTER GEAR)
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33435BBALL (FOR COUNTER GEAR CASE SIDE THRUST WASHER)
33435FWASHER, COUNTERSHAFT 5TH GEAR SIDE THRUST
33451SHAFT, REVERSE IDLER GEAR
33467ROTOR, OIL PUMP DRIVE
33468ROTOR, OIL PUMP DRIVEN
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161160816
main91611-60816
9161160820
main91611-60820
85 parts on this diagram · 1 diagram in section
