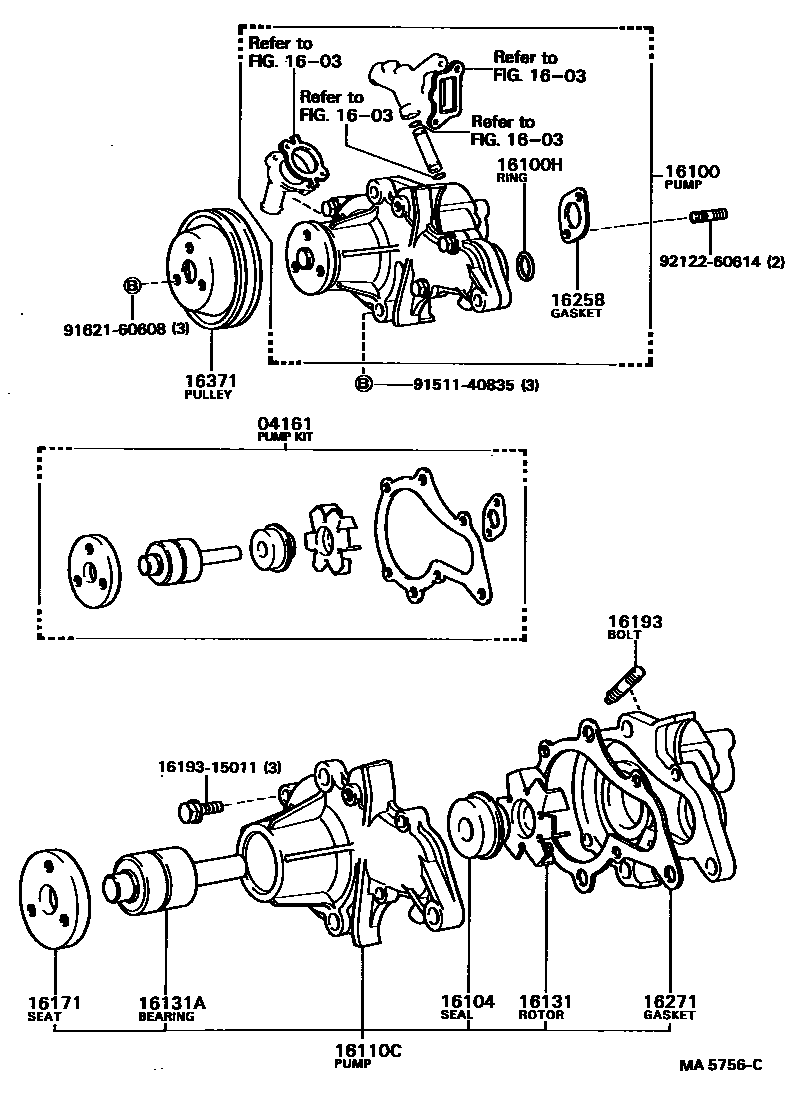

WATER PUMP

04161PUMP KIT, WATER

main04161-15020i3A#..AL25198208-198801

sub04161-15021

1603

16100PUMP ASSY, ENGINE WATER

main16100-19027i3A#..AL25198208-198801

16100HRING, O(FOR WATER PUMP)

main96711-24035i3A#..AL25198208-198801

sub96761-24035

16104SEAL SET, WATER PUMP

main16104-15020i3A#..AL25198405-198801

main16104-41111i3AU..AL25198208-198405

16110CPUMP ASSY, WATER, W/O COVER

main16110-19035i3A#..AL25198208-198801

sub16110-19036

16131ROTOR, WATER PUMP

main16131-15010i3A#..AL25198208-198801

16131ABEARING, WATER PUMP

main90369-30024i3A#..AL25198208-198801

16171SEAT, WATER PUMP PULLEY

main16171-15011i3A#..AL25198208-198801

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010i3A#..AL25198208-198801

16258GASKET(FOR HEATER RETURN)

main16258-15011i3A#..AL25198208-198801

16271GASKET, WATER PUMP

main16124-15010i3A#..AL25198208-198801

sub16124-16020

16371PULLEY, FAN

main16371-15011i3A#..AL25198208-198801

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9151140835

main91511-40835

9162160608

main91621-60608

9212260614

main92122-60614

17 parts on this diagram · 1 diagram in section
