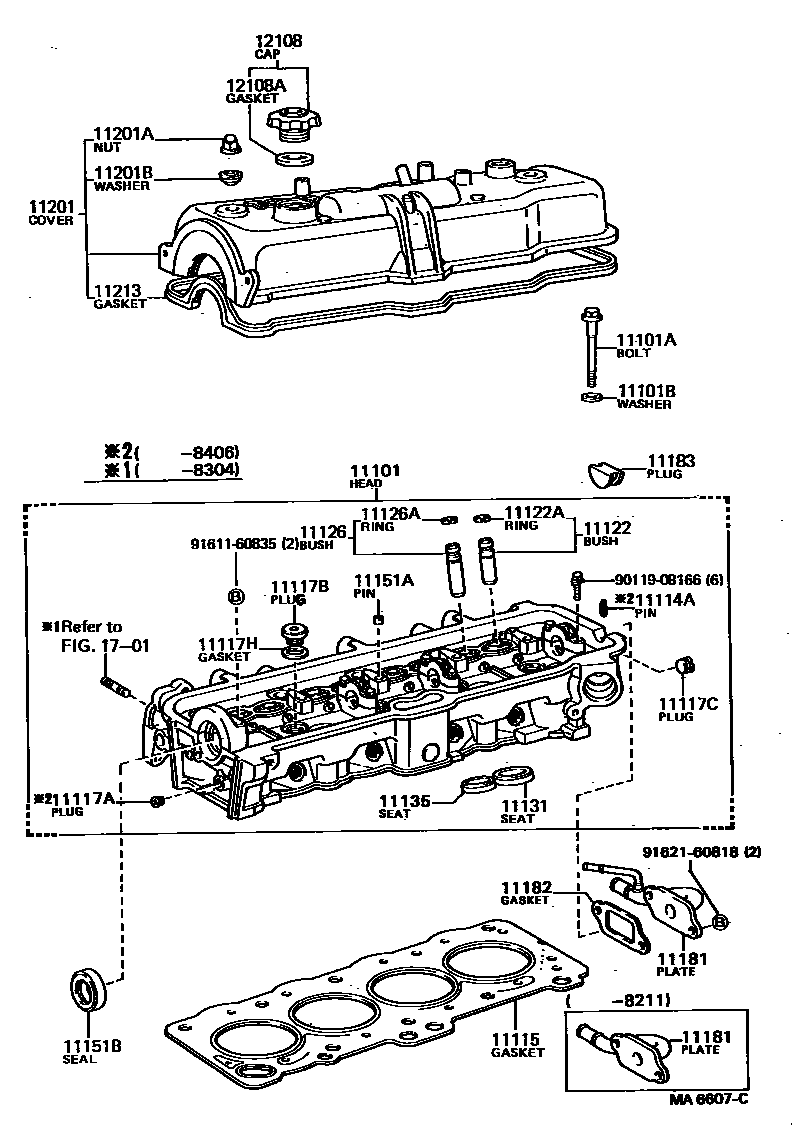

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*10-1.25PX97.5-22
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11114APIN, STRAIGHT
L=8,OD=3.2
11115GASKET, CYLINDER HEAD
sub11115-15061
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-15012
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
sub90210-09019
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
1701
9011908166
main90119-08166
9161160835
main91611-60835
9162160818
main91621-60818
30 parts on this diagram · 2 diagrams in section
