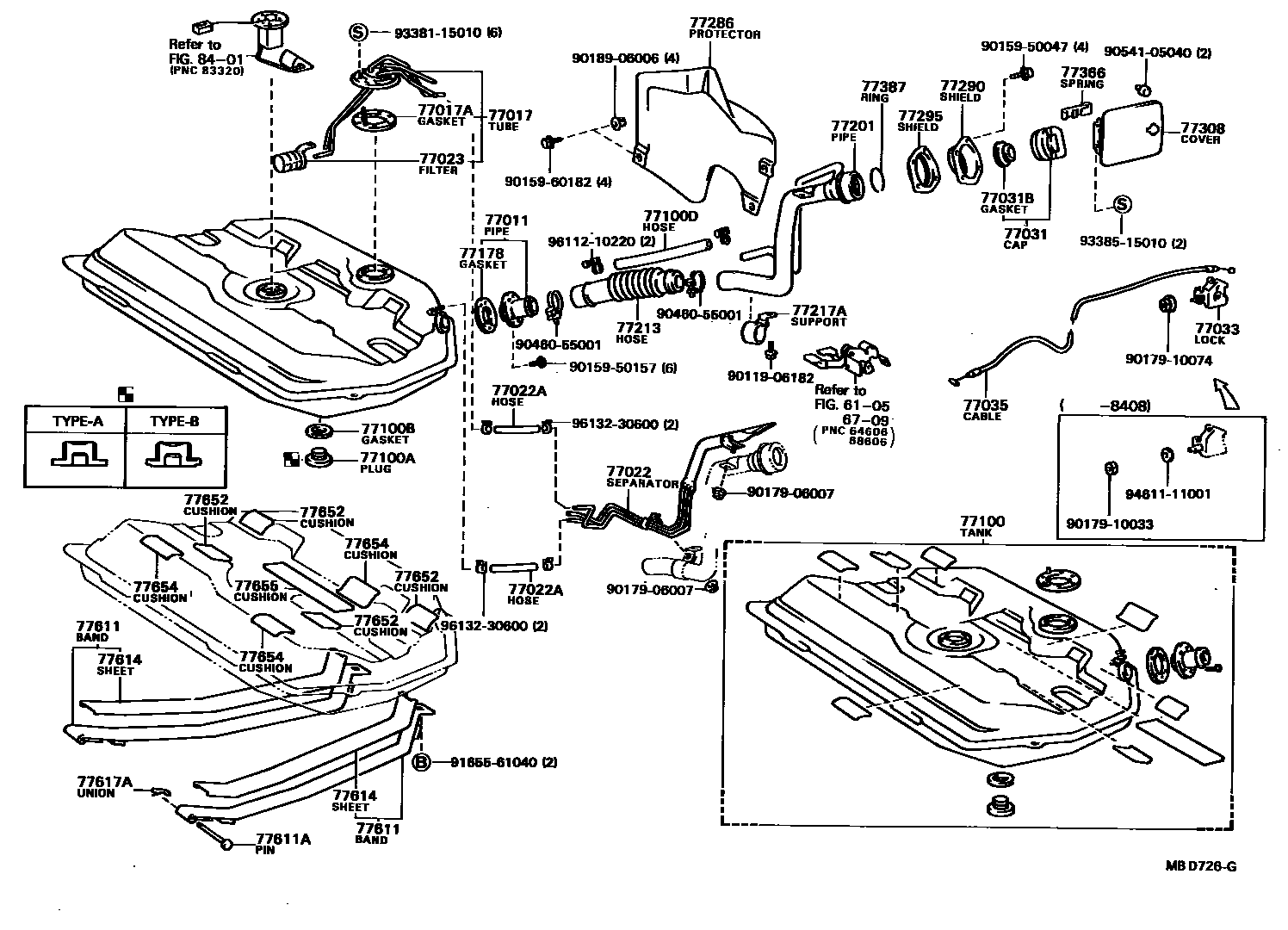

FUEL TANK & TUBE

0001 1 0002 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-16030iAL2#198208-198604

sub77011-16040

main77011-32010iAL2#198205-198208

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-16030iAL2#198205-198604

sub77017-16100

77017AGASKET, FUEL TANK VENT

main77178-10010iAL2#198205-198604

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77022-16010iAL2#198205-198604

sub77022-16020

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06020×2iAL2#198205-198604

sub95333-06020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAL2#198205-198604

77031CAP ASSY, FUEL TANK

main77310-12100iAL2#198205-198604

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAL2#198205-198604

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iAL2#..DLX,GL,SR198502-198604

sub77037-38010

main77037-14010iAL2#..DLX,GL,SE,SR198304-198309

sub77037-90K00

main77037-24010iAL2#..DLX,GL,SE,SR198205-198304

main77037-32010iAL2#..DLX,GL,SE,SR198309-198502

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16010iAL2#..DLX,GL,SE,SR198205-198604

sub77035-32060

77100TANK ASSY, FUEL

main77001-19145iAL2#198205-198601

main77001-19405iAL2#198408-198601

COLD SPEC

sub77001-19315

sub77017-16021

77100APLUG(FOR FUEL TANK)

main90341-20003iAL2#198205-198408

TYPE A

main90341-20004iAL2#198205-198408

TYPE B

77100BGASKET(FOR FUEL TANK)

main90430-20006iAL2#198205-198408

TYPE A

main90430-20007iAL2#198205-198408

TYPE B

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77259-16010iAL2#198205-198604

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iAL2#198205-198604

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16030iAL2#198205-198604

77213HOSE, FUEL TANK SUB INLET

main77213-16030iAL2#198205-198208

main77213-16031iAL2#198208-198604

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-16010iAL2#198205-198604

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-16030iAL2#198205-198604

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16010iAL2#198205-198604

77295SHIELD, FUEL FILLER PIPE

main77293-16010iAL2#198205-198604

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-16050iAL2#198205-198604

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAL2#198205-198604

77387RING, FUEL INLET BOX

main77391-14020iAL2#198205-198604

77611BAND, FUEL TANK

main77601-16020iAL2#198205-198310

RH

main77601-16030iAL2#198310-198604

RH

main77602-16020iAL2#198205-198310

LH

main77602-16030iAL2#198310-198604

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020×2iAL2#198205-198604

77614SEAT, FUEL TANK BAND

main77681-16020×2iAL2#198205-198604

sub77681-32040

77617AUNION, AUXILIARY FUEL BAND

main77617-12010×2iAL2#198205-198604

77652CUSHION, FUEL TANK, NO.1

main77651-16020×2iAL2#198205-198604

60 X 60

sub77651-16060

77654CUSHION, FUEL TANK, NO.2

main77652-16050×3iAL2#198205-198604

60 X 80

sub77652-16060

main77654-16010×2iAL2#198205-198604

80 X 80

77655CUSHION, FUEL TANK, NO.3

main77653-16020iAL2#198205-198604

60 X 220

8401

9011906182

main90119-06182

9015950047

main90159-50047

9015950157

main90159-50157

9015960182

main90159-60182

9017906007

main90179-06007

9017910033

main90179-10033

9017910074

main90179-10074

9018906006

main90189-06006

9046055001

main90460-55001

9054105040

main90541-05040

9165561040

main91655-61040

9338115010

main93381-15010

9338515010

main93385-15010

9461111001

main94611-11001

9611210220

main96112-10220

9613230600

main96132-30600

50 parts on this diagram · 2 diagrams in section
