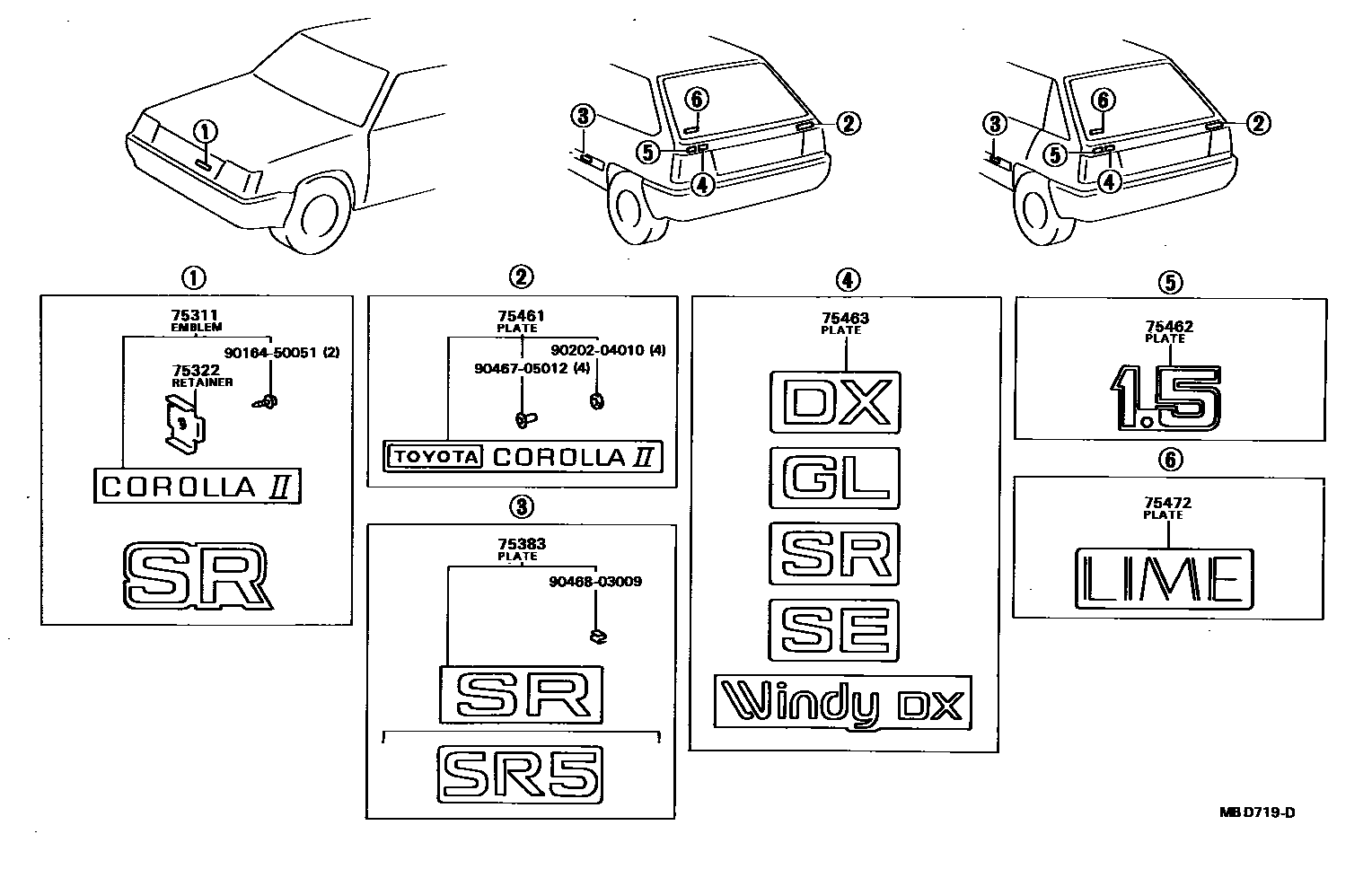

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-16150iAL20198408-198604

main75311-16180iAL21198408-198604

SR

main75311-80017iAL2#..CTD,DLX,GL,SE198205-198408

main75311-80018iAL21..3AHU198205-198408

SR

75322RETAINER, RADIATOR GRILLE NAME PLATE

main75324-16040iAL2#198205-198408

75383PLATE, QUARTER PANEL OR SIDE PANEL NAME (GRADE MARK)

main75385-16010iAL21..3AHU198205-198301

SR

main75385-16011iAL21..3AHU198301-198408

SR

main75385-16060iAL21..3DS..3AHU198305-198408

SR5,BLACK SR

main75385-16090-01iAL21198408-198604

SR,BLACK,BLACK

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75441-16070iAL2#198205-198408

main75441-16130iAL2#198408-198604

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75443-16020iAL21198205-198408

1.5

main75444-12160iAL21198408-198604

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75442-16110iAL2#..DLX198205-198408

DX

main75442-16120iAL2#..GL198205-198408

GL

main75442-16130iAL21..3AHU198205-198408

SR

sub75444-16210

main75442-16140iAL21..SE198205-198408

SE

main75442-16220iAL20..DLX198408-198604

DX

main75442-16230iAL20..GL198408-198604

GL

main75442-16240iAL21198408-198604

SR

main75442-16390iAL20..3DS..4F..DLX198402-198604

WINDY DX

75472PLATE, REAR WINDOW NAME

main74542-16020iAL2#..GL198205-198604

LIME

9016450051

main90164-50051

9020204010

main90202-04010

9046705012

main90467-05012

9046803009

main90468-03009

11 parts on this diagram · 2 diagrams in section
