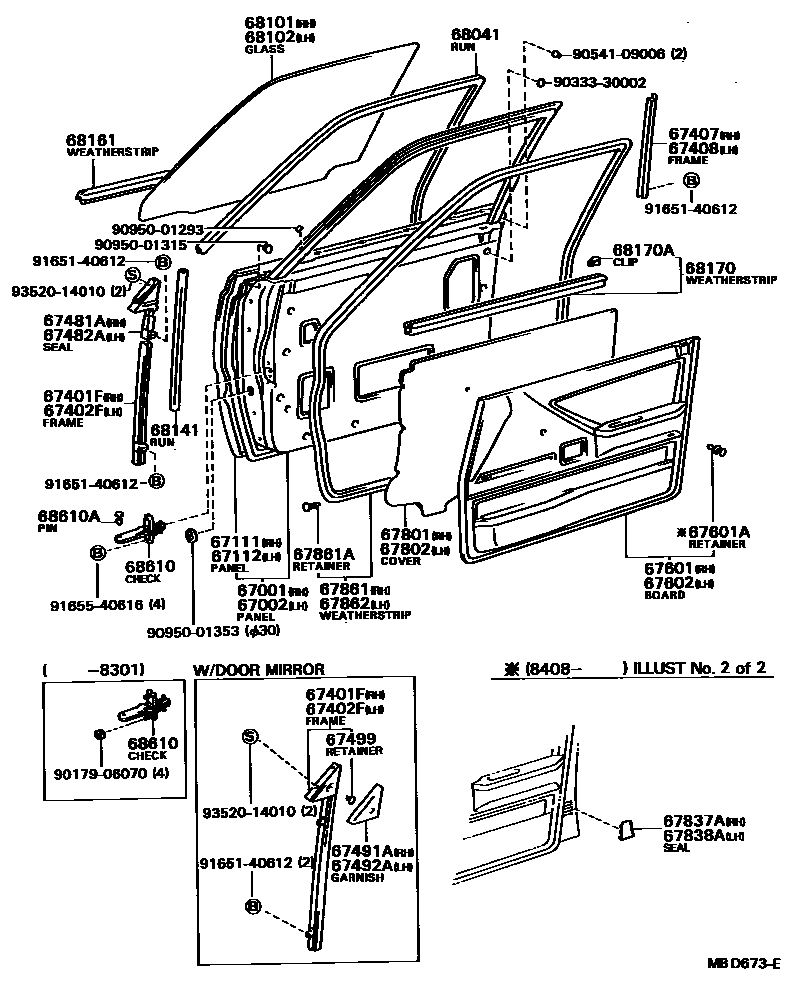

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16130iAL2#..3DS..(CTD,DLX,GL,SE)198205-198408

sub67001-16131

sub90950-01353

main67001-16131iAL20..3DS198408-198604

SPORTS PACKAGE

sub67001-16241

main67001-16160iAL2#..5DS..(DLX,GL,SE)198205-198408

sub67001-16161

sub90950-01353

main67001-16161iAL20..5DS198408-198604

sub67001-16221

main67001-16220iAL21..5DS..3AHU198205-198408

sub67001-16221

sub90950-01353

main67001-16221iAL21..5DS198408-198604

main67001-16240iAL21..3DS..3AHU198205-198408

sub67001-16241

sub90950-01353

main67001-16241iAL21..3DS198408-198604

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16090iAL2#..3DS..(CTD,DLX,GL,SE)198205-198408

sub67002-16091

sub90950-01353

main67002-16091iAL21..3DS198408-198604

SPORTS PACKAGE

sub67002-16201

main67002-16120iAL2#..5DS..(DLX,GL,SE)198205-198408

sub67002-16121

sub90950-01353

main67002-16121iAL20..5DS198408-198604

sub67002-16181

main67002-16180iAL21..5DS..3AHU198205-198408

sub67002-16181

sub90950-01353

main67002-16181iAL21..5DS198408-198604

main67002-16200iAL21..3DS..3AHU198205-198408

sub67002-16201

sub90950-01353

main67002-16201iAL21..3DS198408-198604

67111PANEL, FRONT DOOR, OUTER RH

main67111-16090iAL2#..3DS..(CTD,DLX,GL,SE)198205-198508

sub67111-16100

main67111-16090iAL21..3DS198408-198508

SPORTS PACKAGE

sub67111-16100

main67111-16100iAL2#..3DS198205-198604

main67111-16110iAL2#..5DS..(DLX,GL,SE)198205-198508

sub67111-16120

main67111-16120iAL2#..5DS198205-198604

67112PANEL, FRONT DOOR, OUTER LH

main67112-16070iAL2#..3DS..(CTD,DLX,GL,SE)198205-198508

sub67112-16080

main67112-16070iAL21..3DS198408-198508

SPORTS PACKAGE

sub67112-16080

main67112-16080iAL2#..3DS198205-198604

main67112-16090iAL2#..5DS..(DLX,GL,SE)198205-198508

sub67112-16100

main67112-16100iAL21..5DS..SR198205-198604

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-16020iAL2#..3DS198205-198604

main67401-16030iAL20..3DS..4F..DLX198308-198408

DX-S

sub67401-16120

main67401-16030iAL20..3DS..4F..DLX198402-198408

WINDY

sub67401-16120

main67401-16030iAL2#..3DS..(GL,SE,SR)198305-198408

W/DOOR MIRROR

sub67401-16120

main67401-16040iAL2#..5DS198205-198604

main67401-16050iAL2#..5DS..(GL,SE,SR)198305-198408

W/DOOR MIRROR

main67401-16070iAL2#..5DS198408-198604

W/DOOR MIRROR

main67401-16090iAL2#..3DS198408-198604

W/DOOR MIRROR

sub67401-16120

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-16020iAL2#..3DS198205-198604

main67402-16030iAL20..3DS..4F..DLX198308-198408

DX-S

sub67402-16120

main67402-16030iAL2#..3DS..(GL,SE,SR)198305-198408

W/DOOR MIRROR

sub67402-16120

main67402-16030iAL20..3DS..4F..DLX198402-198408

WINDY

sub67402-16120

main67402-16040iAL2#..5DS198205-198604

main67402-16050iAL2#..5DS..(GL,SE,SR)198305-198408

W/DOOR MIRROR

main67402-16070iAL2#..5DS198408-198604

W/DOOR MIRROR

main67402-16090iAL2#..3DS198408-198604

W/DOOR MIRROR

sub67402-16120

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16020iAL2#..3DS198205-198604

main67403-16030iAL2#..5DS198205-198604

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16020iAL2#..3DS198205-198604

main67404-16030iAL2#..5DS198205-198604

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-16030iAL2#..3DS198205-198604

main67481-16070iAL2#..5DS198205-198604

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-16030iAL2#..3DS198205-198604

main67482-16040iAL2#..5DS198205-198604

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16010iAL20..3DS..4F..DLX198402-198408

WINDY

main67491-16010iAL20..3DS..GL198305-198408

W/O HOLE

main67491-16010iAL2#..3DS198408-198604

main67491-16010iAL20..3DS..4F..DLX198308-198408

DX-S

main67491-16020iAL2#..3DS..(GL,SE,SR)198305-198408

W/HOLE

main67491-16030iAL2#..5DS198408-198604

main67491-16030iAL2#..5DS..GL198305-198408

W/O HOLE

main67491-16040iAL2#..5DS..(GL,SE,SR)198305-198408

W/HOLE

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16010iAL20..3DS..4F..DLX198308-198408

DX-S

main67492-16010iAL2#..3DS198408-198604

main67492-16010iAL20..3DS..GL198305-198408

W/O HOLE

main67492-16010iAL20..3DS..4F..DLX198402-198408

WINDY

main67492-16020iAL2#..3DS..(GL,SE,SR)198305-198408

W/HOLE

main67492-16030iAL2#..5DS198408-198604

main67492-16030iAL2#..5DS..GL198305-198408

W/O HOLE

main67492-16040iAL2#..5DS..(GL,SE,SR)198305-198408

W/HOLE

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iAL2#..GL,SE,SR198305-198604

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-16370-02iAL2#..3DS..(DLX,GL,SR)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67610-16370-03iAL2#..3DS..(DLX,GL,SR)198205-198408

GRAY,GRAY,TRIM1#

main67610-16370-06iAL2#..3DS..(CTD,DLX,GL,SR)198205-198408

BROWN,BROWN,TRIM4#

main67610-16370-13iAL20..3DS198408-198604

GRAY,GRAY,TRIM1#

main67610-16370-16iAL20..3DS..GL198205-198408

LIME,BROWN & DARK WINE,BROWN,TRIM3#

main67610-16380-02iAL21..3DS..SE198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67610-16380-03iAL21..3DS..SE198205-198408

GRAY,GRAY,TRIM1#

main67610-16380-06iAL21..3DS..SE198205-198408

BROWN,BROWN,TRIM4#

main67610-16400-02iAL21..5DS..(SE,SR)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67610-16400-03iAL21..5DS..(SE,SR)198205-198408

GRAY,GRAY,TRIM1#

main67610-16400-06iAL21..5DS..(SE,SR)198205-198408

BROWN,BROWN,TRIM4#

main67610-16400-16iAL2#..5DS..GL198205-198408

LIME,BROWN & DARK WINE,BROWN,TRIM3#

main67610-16420-02iAL2#..5DS..(DLX,GL)198205-198408

DARK WINE,DARK WINE,TRIM3#

sub67610-16420

main67610-16420-03iAL2#..5DS..(DLX,GL)198205-198408

GRAY,GRAY,TRIM1#

sub67610-16420

main67610-16420-06iAL2#..5DS..(DLX,GL)198205-198408

BROWN,BROWN,TRIM4#

sub67610-16420

main67610-16420-13iAL20..5DS198408-198604

GRAY,GRAY,TRIM1#

sub67610-16420

main67610-16500-08iAL20..3DS..GL198408-198604

LIME,IVORY,IVORY,TRIM3#

main67610-16510-08iAL20..5DS..GL198408-198604

LIME,IVORY,IVORY,TRIM3#

main67610-16520-03iAL21..3DS198408-198604

GRAY,GRAY,TRIM1#

main67610-16530-03iAL21..5DS198408-198604

GRAY,GRAY,TRIM1#

sub67610-16530

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iAL2#198408-198604

TYPE A

main67771-16020iAL2#198205-198408

main67771-23010iAL21..5DS198408-198604

LIME,TYPE C

main67771-23010iAL21..5DS198408-198604

TYPE C

main67771-30060iAL2#..5DS198408-198604

TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-16250-02iAL2#..3DS..(DLX,GL,SR)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67620-16250-03iAL2#..3DS..(DLX,GL,SR)198205-198408

GRAY,GRAY,TRIM1#

main67620-16250-06iAL2#..3DS..(CTD,DLX,GL,SR)198205-198408

BROWN,BROWN,TRIM4#

main67620-16250-13iAL20..3DS198408-198604

GRAY,GRAY,TRIM1#

main67620-16250-16iAL20..3DS..GL198205-198408

LIME,BROWN & DARK WINE,BROWN,TRIM3#

main67620-16260-02iAL21..3DS..SE198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67620-16260-03iAL21..3DS..SE198205-198408

GRAY,GRAY,TRIM1#

main67620-16260-06iAL21..3DS..SE198205-198408

BROWN,BROWN,TRIM4#

main67620-16280-02iAL21..5DS..(SE,SR)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67620-16280-03iAL21..5DS..(SE,SR)198205-198408

GRAY,GRAY,TRIM1#

main67620-16280-06iAL21..5DS..(SE,SR)198205-198408

BROWN,BROWN,TRIM4#

main67620-16280-16iAL2#..5DS..GL198205-198408

LIME,BROWN & DARK WINE,BROWN,TRIM3#

main67620-16300-02iAL2#..5DS..(DLX,GL)198205-198408

DARK WINE,DARK WINE,TRIM3#

sub67620-16300

main67620-16300-03iAL2#..5DS..(DLX,GL)198205-198408

GRAY,GRAY,TRIM1#

sub67620-16300

main67620-16300-06iAL2#..5DS..(DLX,GL)198205-198408

BROWN,BROWN,TRIM4#

sub67620-16300

main67620-16300-13iAL20..5DS198408-198604

GRAY,GRAY,TRIM1#

sub67620-16300

main67620-16380-08iAL20..3DS..GL198408-198604

LIME,IVORY,IVORY,TRIM3#

main67620-16390-08iAL20..5DS..GL198408-198604

LIME,IVORY,IVORY,TRIM3#

main67620-16400-03iAL21..3DS198408-198604

GRAY,GRAY,TRIM1#

main67620-16410-03iAL21..5DS198408-198604

GRAY,GRAY,TRIM1#

sub67620-16410

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-16060iAL2#..3DS198205-198604

main67831-16080iAL2#..5DS198205-198604

main67831-16090iAL2#..5DS198304-198604

COLD SPEC

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-16090iAL2#..5DS198304-198604

COLD SPEC

main67832-16060iAL2#..3DS198205-198604

main67832-16080iAL2#..5DS198205-198604

67837ASEAL, FRONT DOOR VENT, RH

main67837-16010iAL2#..5DS198205-198604

67838ASEAL, FRONT DOOR VENT, LH

main67838-16010iAL2#..5DS198205-198604

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16090iAL2#..3DS198205-198408

COLD SPEC

sub67861-16170

main67861-16100iAL2#..5DS198205-198408

COLD SPEC

sub67861-16180

main67861-16150iAL2#..3DS198205-198604

sub67861-16170

main67861-16160iAL2#..5DS198205-198604

sub67861-16180

main67861-16170iAL2#..3DS198408-198604

COLD SPEC

main67861-16180iAL2#..5DS198408-198604

COLD SPEC

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAL2#198205-198604

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16090iAL2#..3DS198205-198408

COLD SPEC

sub67862-16170

main67862-16100iAL2#..5DS198205-198408

COLD SPEC

sub67862-16180

main67862-16150iAL2#..3DS198205-198604

sub67862-16170

main67862-16160iAL2#..5DS198205-198604

sub67862-16180

main67862-16170iAL2#..3DS198408-198604

COLD SPEC

main67862-16180iAL2#..5DS198408-198604

COLD SPEC

68041RUN SUB-ASSY, FRONT DOOR GLASS

main68141-16030iAL2#..3DS198205-198408

main68141-16040iAL20..3DS..4F..DLX198308-198408

DX-S

main68141-16040iAL2#..3DS..(GL,SE,SR)198305-198408

W/DOOR MIRROR

main68141-16040iAL20..3DS..4F..DLX198402-198408

WINDY

main68141-16050iAL2#..5DS198205-198408

main68141-16060iAL2#..5DS..(GL,SE,SR)198305-198408

W/DOOR MIRROR

main68141-16070iAL2#..3DS198408-198604

W/DOOR MIRROR

main68141-16120iAL2#..5DS198408-198604

W/DOOR MIRROR

main68141-16130iAL2#..3DS198408-198604

main68141-16140iAL2#..5DS198408-198604

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16050iAL20..CTD198205-198604

*TEM,T=3.5

sub68111-16060

main68111-16050iAL20..3DS..4F..DLX198308-198408

DX-S,*TEM,T=3.5

sub68111-16060

main68111-16050iAL20..3DS..DLX198402-198604

WINDY,*TEM,T=3.5

sub68111-16060

main68111-16060iAL2#..3DS..(DLX,GL,SE,SR)198205-198604

*TT,T=3.5

main68111-16070iAL20..CTD198402-198604

WINDY,W/DOOR MIRROR,*TEM,T=3.5

sub68111-16080

main68111-16070iAL20..3DS..DLX198408-198604

W/DOOR MIRROR,*TEM,T=3.5

sub68111-16080

main68111-16070iAL20..3DS..4F..DLX198308-198408

DX-S,W/DOOR MIRROR,*TEM,T=3.5

sub68111-16080

main68111-16080iAL2#..3DS..(GL,SE,SR)198305-198604

W/DOOR MIRROR,*TT,T=3.5

main68111-16090iAL20..5DS..DLX198408-198604

WINDY,*TEM,T=3.5

sub68111-16100

main68111-16100iAL2#..5DS198205-198604

main68111-16110iAL20..5DS..DLX198408-198604

WINDY,W/DOOR MIRROR,*TEM,T=3.5

sub68111-16120

main68111-16120iAL2#..5DS..(GL,SE,SR)198305-198604

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16050iAL20..3DS..DLX198402-198604

WINDY,*TEM,T=3.5

main68112-16050iAL20..3DS..4F..DLX198308-198408

DX-S,*TEM,T=3.5

main68112-16050iAL20..CTD198205-198604

*TEM,T=3.5

main68112-16060iAL2#..3DS..(DLX,GL,SE,SR)198205-198604

*TT,T=3.5

main68112-16070iAL20..3DS..DLX198402-198604

WINDY,W/DOOR MIRROR,*TEM,T=3.5

sub68112-16080

main68112-16070iAL20..3DS..4F..DLX198308-198408

DX-S,W/DOOR MIRROR,*TEM,T=3.5

sub68112-16080

main68112-16070iAL20..CTD198408-198604

W/DOOR MIRROR,*TEM,T=3.5

sub68112-16080

main68112-16080iAL2#..3DS..(GL,SE,SR)198305-198604

W/DOOR MIRROR,*TT,T=3.5

main68112-16090iAL20..5DS..DLX198408-198604

WINDY,*TEM,T=3.5

sub68112-16100

main68112-16100iAL2#..5DS198205-198604

main68112-16110iAL20..5DS..DLX198408-198604

WINDY,W/DOOR MIRROR,*TEM,T=3.5

sub68112-16120

main68112-16120iAL2#..5DS..(GL,SE,SR)198305-198604

68141RUN, FRONT DOOR GLASS

main68143-16020iAL2#198205-198408

W/O DOOR MIRROR

sub68143-14020

main68143-16030iAL2#198408-198604

W/O DOOR MIRROR

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-16030iAL20..3DS..(CTD,DLX)198205-198604

RH

main68160-16040iAL20..3DS..4F..DLX198308-198408

DX-S,RH

main68160-16040iAL20..3DS..4F..DLX198402-198408

WINDY,RH

main68160-16040iAL20..3DS..(CTD,DLX)198408-198604

RH,W/DOOR MIRROR

main68160-16050iAL2#..5DS..DLX198205-198604

RH

main68160-16060iAL20..5DS..DLX198408-198604

RH,W/DOOR MIRROR

main68210-16020iAL20..3DS..(CTD,DLX)198205-198604

LH

main68210-16030iAL20..3DS..(CTD,DLX)198408-198604

LH,W/DOOR MIRROR

main68210-16030iAL20..3DS..4F..DLX198308-198408

DX-S,LH

main68210-16030iAL20..3DS..4F..DLX198402-198408

WINDY,LH

main68210-16040iAL2#..5DS..DLX198205-198604

LH

main68210-16050iAL20..5DS..DLX198408-198604

LH,W/DOOR MIRROR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-16010iAL2#..3DS198205-198604

RH

main68170-16050iAL20..3DS..4F..DLX198308-198408

DX-S,RH

main68170-16050iAL2#..3DS198305-198604

RH,W/DOOR MIRROR

main68170-16050iAL20..3DS..4F..DLX198402-198408

WINDY,RH

main68170-16060iAL2#..5DS198205-198604

RH

main68170-16070iAL2#..5DS198305-198604

RH,W/DOOR MIRROR

main68220-16030iAL2#..3DS198205-198604

LH

main68220-16040iAL20..3DS..4F..DLX198308-198408

DX-S,LH

main68220-16040iAL20..3DS..4F..DLX198402-198408

WINDY,LH

main68220-16040iAL2#..3DS..(GL,SE,SR)198305-198604

LH,W/DOOR MIRROR

main68220-16050iAL2#..5DS198205-198604

LH

main68220-16060iAL2#..5DS198305-198604

LH,W/DOOR MIRROR

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iAL2#198205-198604

68610CHECK ASSY, FRONT DOOR

main68610-16030iAL2#198205-198604

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iAL2#198401-198507

sub68617-90A00

main68617-22010iAL2#198205-198401

sub68617-12010

main68617-90A00iAL2#198507-198604

9017906070

main90179-06070

9033330002

main90333-30002

9054109006

main90541-09006

9095001293

main90950-01293

9095001315

main90950-01315

9095001353

main90950-01353

9165140612

main91651-40612

9165540616

main91655-40616

9352014010

main93520-14010

41 parts on this diagram · 2 diagrams in section
