DECK BOARD & DECK TRIM COVER

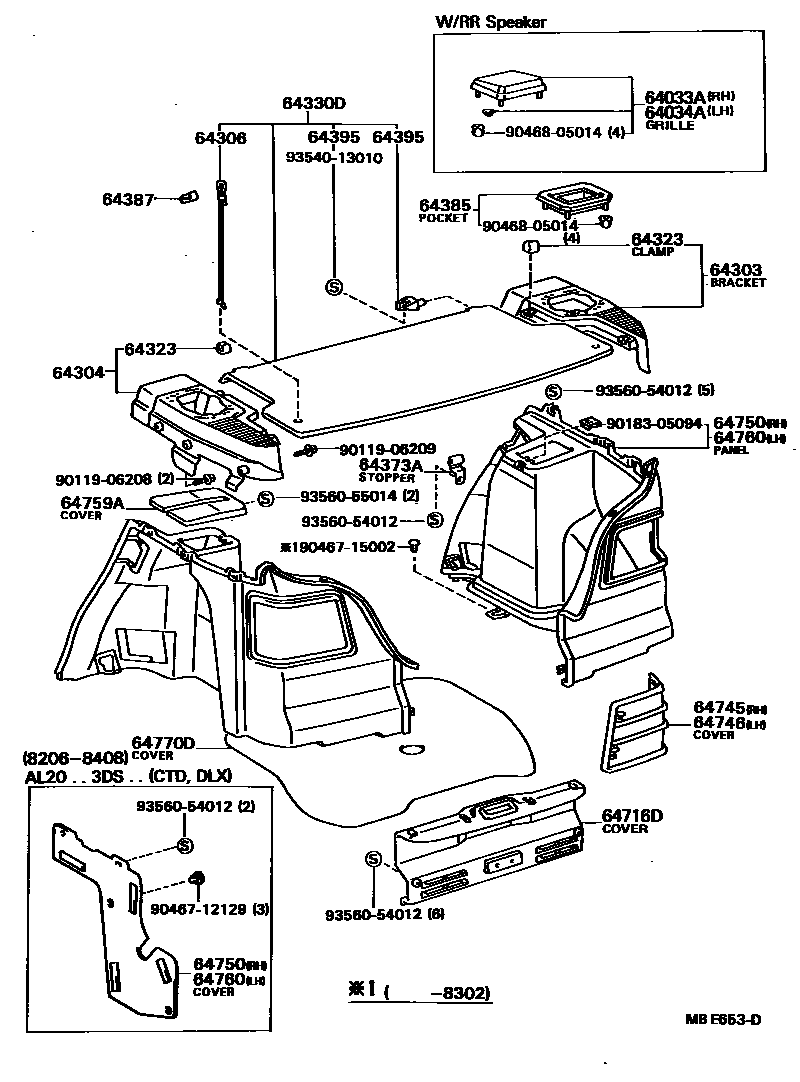

Parts diagram
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-16010-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub64033-16011
main64033-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub64033-16011
main64033-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub64033-16011
main64033-16010-13i198408-198604
GRAY,GRAY,TRIM1#
sub64033-16011
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-16010-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub64033-16011
main64033-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub64033-16011
main64033-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub64033-16011
main64033-16010-13i198408-198604
GRAY,GRAY,TRIM1#
sub64033-16011
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
main64301-16020-02i198205-198206
DARK WINE,DARK WINE,TRIM3#
main64301-16020-03i198206-198301
GRAY,GRAY,TRIM1#
main64301-16020-06i198301-198408
BROWN,BROWN,TRIM4#
main64301-16020-13i198408-198604
GRAY,GRAY,TRIM1#
main64301-16040-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main64301-16040-03i198205-198408
GRAY,GRAY,TRIM1#
main64301-16040-06i198205-198408
BROWN,BROWN,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
main64302-16020-02i198206-198301
DARK WINE,DARK WINE,TRIM3#
main64302-16020-03i198305-198408
SE SPORTS VERSION,GRAY
main64302-16020-06i198206-198301
BROWN,BROWN,TRIM4#
main64302-16020-13i198408-198604
GRAY,GRAY,TRIM1#
main64302-16040-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main64302-16040-03i198205-198408
GRAY,GRAY,TRIM1#
main64302-16040-06i198205-198408
BROWN,BROWN,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-16020×2i198301-198604
sub64306-12030
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-10010i198205-198604
RH
main64324-10010i198205-198604
LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-16050-02i198206-198301
DARK WINE,RED/MAROON,TRIM3#
main64330-16050-03i198301-198408
GRAY,GRAY,TRIM1#
main64330-16050-06i198206-198301
BROWN,BROWN,TRIM4#
main64330-16060-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main64330-16060-03i198205-198408
GRAY,GRAY,TRIM1#
main64330-16060-06i198205-198408
BROWN,BROWN,TRIM4#
main64330-16140-02i198408-198604
DARK WINE,MAROON,TRIM3#
main64330-16140-13i198408-198604
GRAY,GRAY,TRIM1#
64373ASTOPPER, PACKAGE TRAY TRIM
main64373-16010×2i198408-198604
64385POCKET, PACKAGE TRAY TRIM
main64385-16010-02×2i198205-198206
DARK WINE,DARK WINE,TRIM3#
main64385-16010-03×2i198301-198408
GRAY,GRAY,TRIM1#
main64385-16010-06×2i198301-198408
BROWN,BROWN,TRIM4#
main64385-16010-13×2i198408-198604
GRAY,GRAY,TRIM1#
64387HANGER, PACKAGE TRAY TRIM
main64381-10010×2i198205-198206
64395PIN, PACKAGE TRAY TRIM HINGE
main64373-20020i198511-198604
FR-LH
main64379-20010i198511-198604
FR-RH
main64395-16010×2i198205-198206
RR
64716DCOVER, DECK TRIM, REAR
main64716-16030-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64716-16030-03i198205-198408
GRAY,GRAY,TRIM1#
main64716-16030-06i198205-198408
BROWN,BROWN,TRIM4#
main64716-16031-02i198408-198604
DARK WINE
main64716-16031-03i198408-198604
GRAY,GRAY,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-16020-02i198205-198206
DARK WINE,DARK WINE,TRIM3#
main64745-16020-03i198206-198408
GRAY,GRAY,TRIM1#
main64745-16020-06i198205-198206
BROWN,BROWN,TRIM4#
main64745-16020-13i198408-198604
GRAY,GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-16020-02i198206-198408
DARK WINE,DARK WINE,TRIM3#
main64746-16020-03i198308-198408
DX-S,GRAY
main64746-16020-06i198206-198408
BROWN,BROWN,TRIM4#
main64746-16020-13i198408-198604
GRAY,GRAY,TRIM1#
64750PANEL ASSY, DECK SIDE TRIM, RH
main64714-16030-02i198206-198408
DARK WINE,DARK WINE,TRIM3#
main64714-16030-03i198402-198408
WINDY,GRAY,GRAY,TRIM1#
main64714-16030-06i198206-198408
BROWN,BROWN,TRIM4#
main64714-16030-13i198408-198604
GRAY,GRAY,TRIM1#
main64714-16060-02i198206-198408
DARK WINE,RED/MAROON,TRIM3#
main64714-16060-03i198206-198408
GRAY,GRAY,TRIM1#
main64714-16060-06i198206-198408
BROWN,BROWN,TRIM4#
64759ACOVER, SHOCK ABSORBER HEAD
main58731-16010-02i198408-198604
W/PACKAGE TRIM,RH,DARK WINE,DARK WINE,TRIM3#
main58731-16010-03i198205-198408
W/PACKAGE TRIM,RH,GRAY,GRAY,TRIM1#
main58731-16010-06i198205-198408
W/PACKAGE TRIM,RH,BROWN,BROWN,TRIM4#
main58731-16010-13i198408-198604
W/PACKAGE TRIM,RH,GRAY,GRAY,TRIM1#
main58731-16020-02i198205-198206
RH,DARK WINE,DARK WINE,TRIM3#
main58731-16020-03i198301-198408
RH,GRAY,GRAY,TRIM1#
main58731-16020-06i198301-198408
RH,BROWN,BROWN,TRIM4#
main58731-16020-13i198408-198604
RH,GRAY,GRAY,TRIM1#
main58732-16010-02i198205-198408
W/PACKAGE TRIM,LH,DARK WINE,DARK WINE,TRIM3#
main58732-16010-03i198205-198408
W/PACKAGE TRIM,LH,GRAY,GRAY,TRIM1#
main58732-16010-06i198205-198408
W/PACKAGE TRIM,LH,BROWN,BROWN,TRIM4#
main58732-16010-13i198408-198604
W/PACKAGE TRIM,LH,GRAY,GRAY,TRIM1#
main58732-16020-02i198301-198408
LH,DARK WINE,DARK WINE,TRIM3#
main58732-16020-03i198206-198301
LH,GRAY,GRAY,TRIM1#
main58732-16020-06i198205-198206
LH,BROWN,BROWN,TRIM4#
main58732-16020-13i198408-198604
LH,GRAY,GRAY,TRIM1#
64760PANEL ASSY, DECK SIDE TRIM, LH
main64715-16030-02i198408-198604
DARK WINE,DARK WINE,TRIM3#
main64715-16030-03i198402-198408
WINDY,GRAY,GRAY,TRIM1#
main64715-16030-06i198205-198206
BROWN,BROWN,TRIM4#
main64715-16030-13i198408-198604
GRAY,GRAY,TRIM1#
main64715-16060-02i198206-198408
DARK WINE,RED/MAROON,TRIM3#
main64715-16060-03i198206-198408
GRAY,GRAY,TRIM1#
main64715-16060-06i198206-198408
BROWN,BROWN,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
main64770-16030i198205-198604
sub64770-12060
9011906208
main90119-06208
9011906209
main90119-06209
9018305094
main90183-05094
9046712129
main90467-12129
9046715002
main90467-15002
9046805014
main90468-05014
9354013010
main93540-13010
9356054012
main93560-54012
9356055014
main93560-55014

27 parts on this diagram · 1 diagram in section
