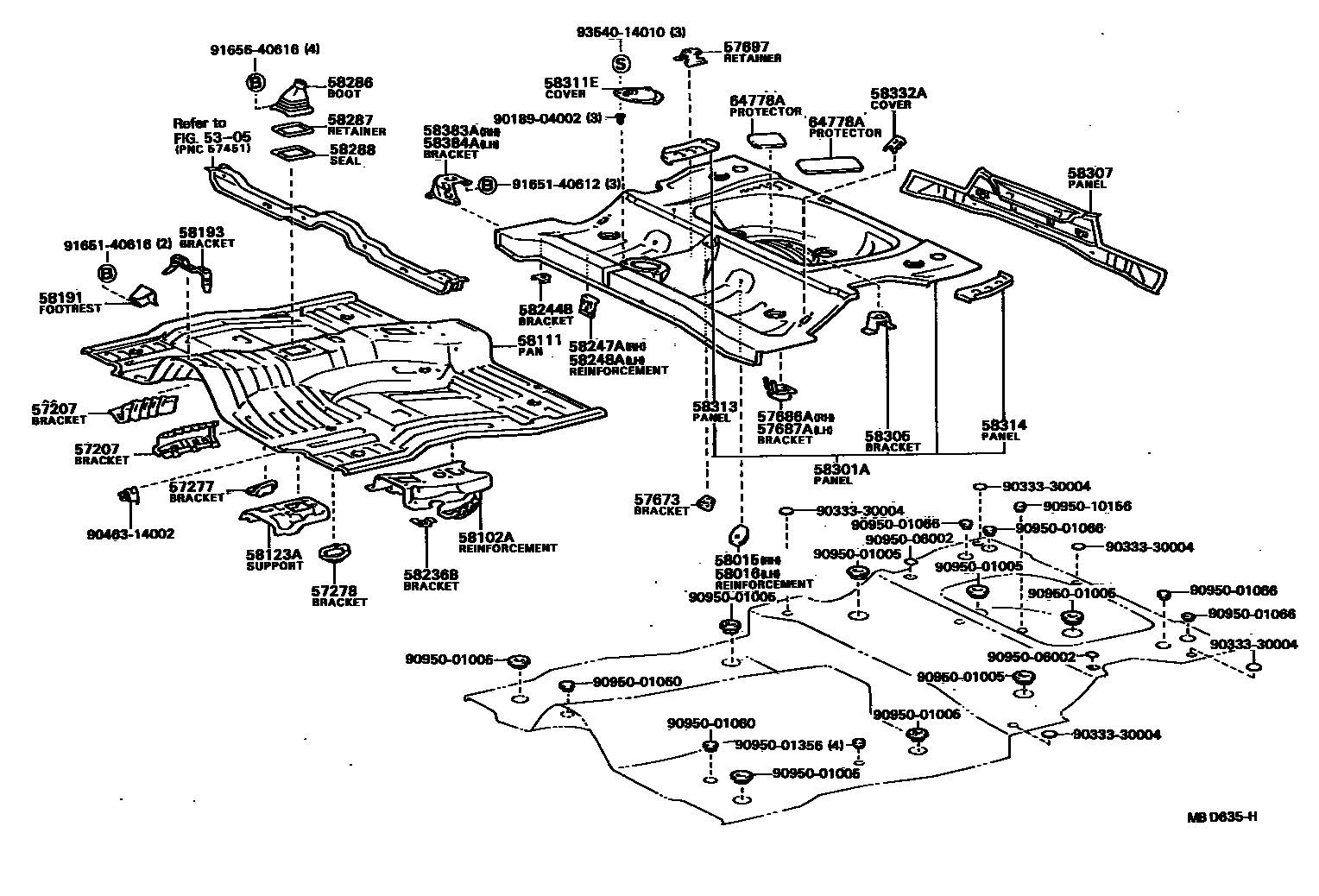

FLOOR PAN & LOWER BACK PANEL
5305
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
LH
57277BRACKET, CATALYTIC CONVERTER SUPPORT, RH
57278BRACKET, CATALYTIC CONVERTER SUPPORT, LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58244BBRACKET, REAR SEAT CUSHION MOUNTING
PLANT NO.A32
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58286BOOT, SHIFT & SELECT LEVER, NO.1
WINDY
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58301APANEL SUB-ASSY, REAR FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311ECOVER, REAR FLOOR SERVICE HOLE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58332ACOVER, REAR FLOOR SIDE SERVICE HOLE
RH
LH
58383ABRACKET, REAR SEAT SUPPORT, RH
58384ABRACKET, REAR SEAT SUPPORT, LH
64778APROTECTOR, SPARE WHEEL
230 X 125
450 X 150
240 X 110
270 X 150
9018904002
main90189-04002
9033330004
main90333-30004
9046314002
main90463-14002
9095001005
main90950-01005
9095001060
main90950-01060
9095001066
main90950-01066
9095001356
main90950-01356
9095006002
main90950-06002
9095010156
main90950-10156
9165140612
main91651-40612
9165140616
main91651-40616
9165640616
main91656-40616
9354014010
main93540-14010
45 parts on this diagram · 1 diagram in section
