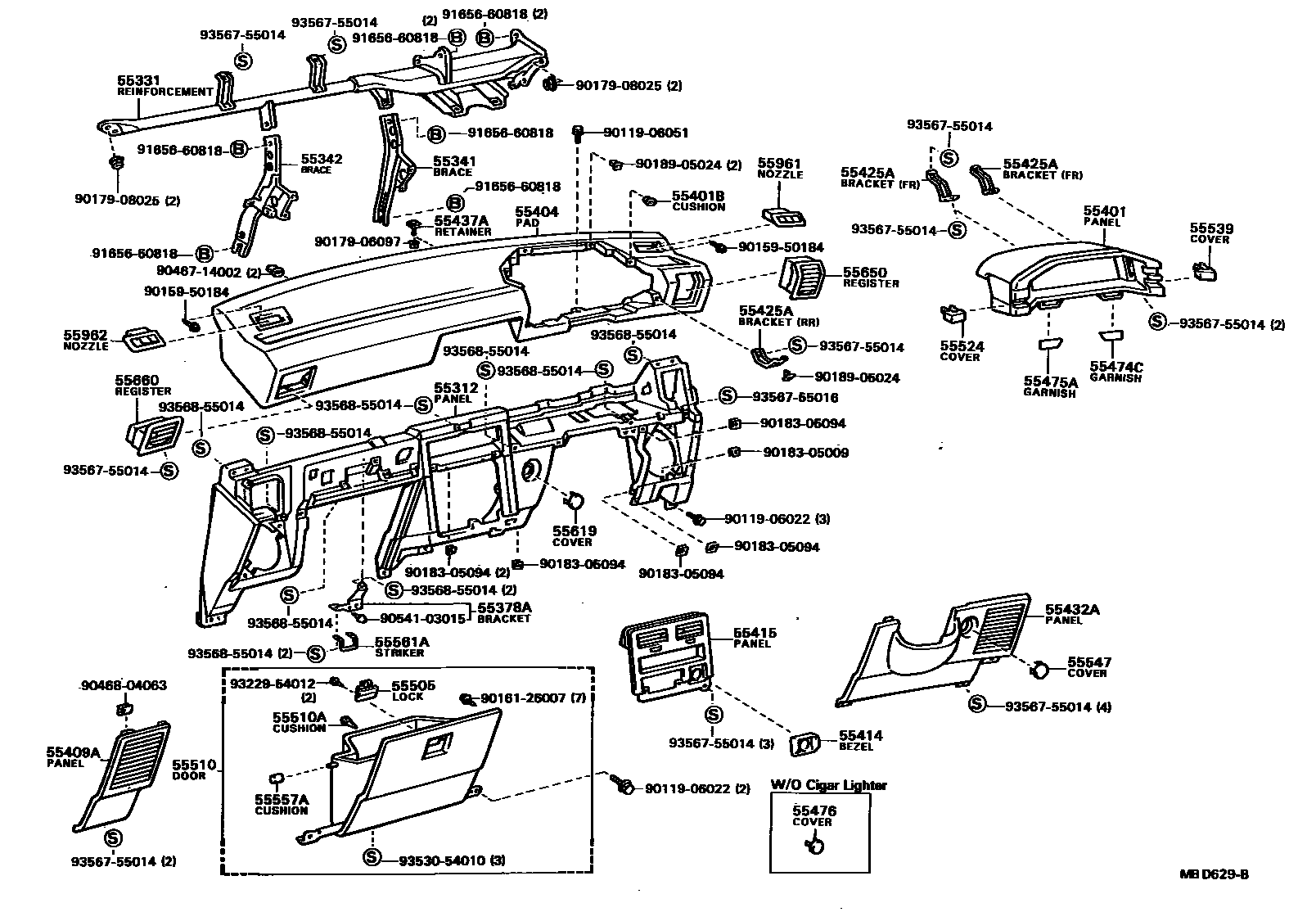

INSTRUMENT PANEL & GLOVE COMPARTMENT

55312PANEL, INSTRUMENT, LOWER

main55312-16010-02iAL2#198205-198604

DARK WINE,RED/MAROON,TRIM3#

main55312-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55312-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55312-16010-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16010iAL2#198205-198309

sub55330-16011

main55330-16011iAL2#198309-198604

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-16030iAL2#198205-198604

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-16030iAL2#198205-198604

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-16010iAL2#198205-198604

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-16050-02iAL20..GL198205-198604

DARK WINE,RED/MAROON,TRIM3#

main55404-16050-03iAL2#..CTD,DLX,GL,SR198205-198408

GRAY,GRAY,TRIM1#

main55404-16050-06iAL2#..CTD,DLX,GL,SR198205-198408

BROWN,BROWN,TRIM4#

main55404-16050-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

main55404-16070-02iAL21..SE198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55404-16070-02iAL20..GL198408-198604

W/*TIS,DARK WINE,RED/MAROON,TRIM3#

main55404-16070-03iAL21..SE198205-198408

GRAY,GRAY,TRIM1#

main55404-16070-06iAL21..SE198205-198408

BROWN,BROWN,TRIM4#

main55404-16070-13iAL2#..GL,SR198408-198604

W/*TIS,GRAY,GRAY,TRIM1#

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-16010iAL2#198205-198604

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-16040-02iAL20..GL198205-198604

DARK WINE,DARK WINE,TRIM3#

main55401-16040-03iAL2#..DLX,GL,SE,SR198205-198408

GRAY,GRAY,TRIM1#

main55401-16040-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55401-16040-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55409-16010-02iAL20..GL198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55409-16030

sub55409-16010

main55409-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub55409-16030

sub55409-16010

main55409-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub55409-16030

sub55409-16010

main55409-16010-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55409-16030

sub55409-16010

55414BEZEL, CIGAR LIGHTER HOLE

main55477-16030iAL2#..DLX,GL,SR198205-198408

main55477-16040iAL21..SE198205-198604

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-16010iAL2#198205-198408

sub55405-16011

sub55477-10050

main55405-16011iAL2#198408-198602

main55405-16012iAL2#198602-198604

sub55405-16013

55425ABRACKET, METER HOOD SET

main55425-16030iAL2#198205-198604

FR

main55426-16030iAL2#198205-198604

RR

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-16020-02iAL20..GL198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55432-16100

sub55432-16020

main55432-16020-03iAL2#..CTD,DLX,GL,SR198205-198408

GRAY,GRAY,TRIM1#

sub55432-16100

sub55432-16020

main55432-16020-06iAL2#..CTD,DLX,GL,SR198205-198408

BROWN,BROWN,TRIM4#

sub55432-16100

sub55432-16020

main55432-16020-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55432-16100

sub55432-16020

main55432-16040-02iAL21..SE198205-198408

DARK WINE,RED/MAROON,TRIM3#

sub55432-16110

sub55432-16040

main55432-16040-02iAL20..GL198408-198604

W/*TIS,DARK WINE,RED/MAROON,TRIM3#

sub55432-16110

sub55432-16040

main55432-16040-03iAL21..SE198205-198408

GRAY,GRAY,TRIM1#

sub55432-16110

sub55432-16040

main55432-16040-06iAL21..SE198205-198408

BROWN,BROWN,TRIM4#

sub55432-16110

sub55432-16040

main55432-16040-13iAL2#..GL,SR198408-198604

W/*TIS,GRAY,GRAY,TRIM1#

sub55432-16110

sub55432-16040

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-16020iAL2#198205-198604

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-16010iAL21..SE,SR198205-198604

main55474-16030iAL2#..CTD,DLX,GL198205-198604

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-16010iAL21..SE,SR198205-198604

main55475-16030iAL2#..CTD,DLX,GL198205-198604

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010iAL20..CTD198205-198408

main55477-10050iAL20..CTD198408-198604

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55560-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55560-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55560-16020-02iAL20..GL198408-198604

DARK WINE,DARK WINE,TRIM3#

sub55560-16010

sub55560-16020

main55560-16020-03iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55560-16010

sub55560-16020

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16040-02iAL20..GL198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55550-16040

main55550-16040-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub55550-16040

main55550-16040-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub55550-16040

main55550-16040-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55550-16040

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAL2#198205-198604

55524COVER, SWITCH BACE HOLE

main55524-16010iAL20;AL21..DLX198205-198604

55539COVER, SPARE SWITCH HOLE

main55539-16010iAL2#..CTD,DLX198205-198604

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-16010-02iAL21..SE198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55547-16010

main55547-16010-03iAL2#..CTD,DLX,GL,SR198205-198408

GRAY,GRAY,TRIM1#

sub55547-16010

main55547-16010-03iAL21..SE198305-198408

SE SPORTS VERSION,W/*DM,GRAY

sub55547-16010

main55547-16010-06iAL21..SE198205-198408

BROWN,BROWN,TRIM4#

sub55547-16010

main55547-16010-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55547-16010

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iAL2#198205-198312

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-16020iAL2#198212-198604

sub55561-32010

main55561-32010iAL2#198205-198212

55619COVER, SWITCH HOLE

main55617-10010-02iAL2#198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55617-10010

main55617-10010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub55617-10010

main55617-10010-23iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55617-10010

main55617-10010-36iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub55617-10010

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16030-02iAL2#198205-198602

DARK WINE,RED/MAROON,TRIM3#

sub55650-16030

main55650-16030-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub55650-16030

main55650-16030-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub55650-16030

main55650-16030-13iAL2#198408-198602

GRAY,GRAY,TRIM1#

sub55650-16030

main55650-16031-02iAL20..GL198602-198604

DARK WINE,DARK WINE,TRIM3#

sub55650-16032

main55650-16031-03iAL2#198602-198604

GRAY,GRAY,TRIM1#

sub55650-16032

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16010-02iAL2#198205-198602

DARK WINE,RED/MAROON,TRIM3#

main55660-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55660-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55660-16010-13iAL2#198408-198602

GRAY,GRAY,TRIM1#

main55660-16011-02iAL20..GL198602-198604

DARK WINE,DARK WINE,TRIM3#

main55660-16011-03iAL2#198602-198604

GRAY,GRAY,TRIM1#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-16010-02iAL2#198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55961-16010

main55961-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub55961-16010

main55961-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub55961-16010

main55961-16010-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55961-16010

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-16010-02iAL2#198205-198604

DARK WINE,RED/MAROON,TRIM3#

sub55962-16010

main55962-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

sub55962-16010

main55962-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

sub55962-16010

main55962-16010-13iAL2#198408-198604

GRAY,GRAY,TRIM1#

sub55962-16010

9011906022

main90119-06022

9011906051

main90119-06051

9015950184

main90159-50184

9016126007

main90161-26007

9017906097

main90179-06097

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018905024

main90189-05024

9046714002

main90467-14002

9046804063

main90468-04063

9054103015

main90541-03015

9165660818

main91656-60818

9322954012

main93229-54012

9353054010

main93530-54010

9356755014

main93567-55014

9356755016

main93567-55016

9356855014

main93568-55014

48 parts on this diagram · 1 diagram in section
