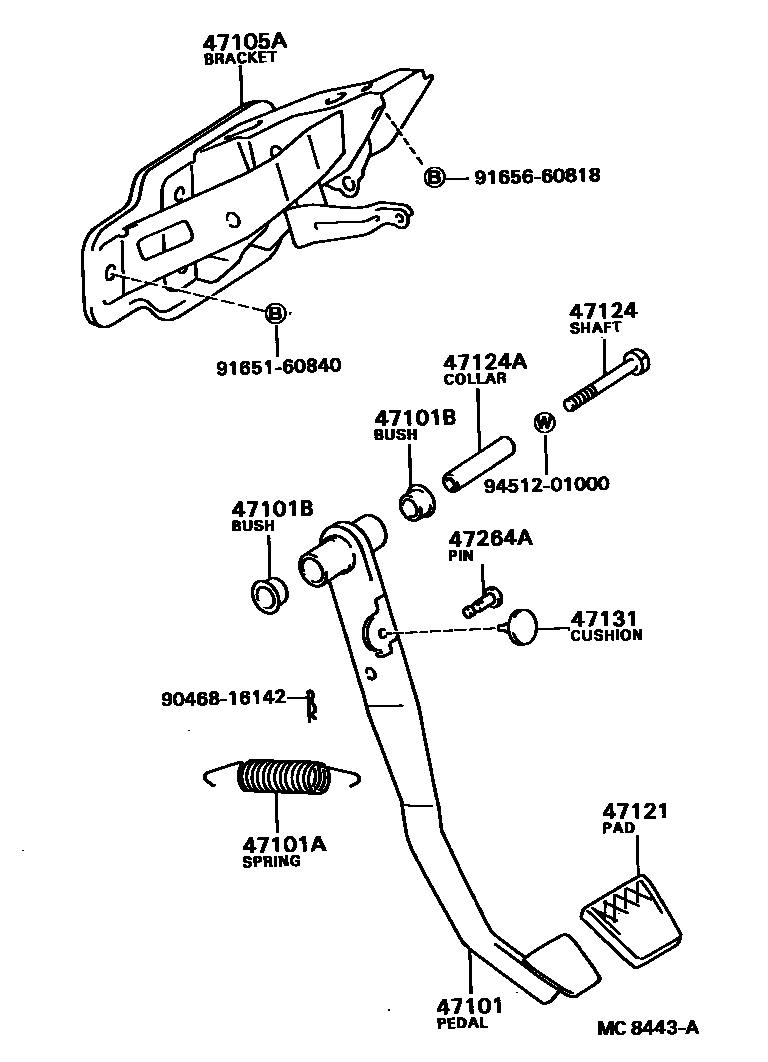

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-16050iAL2#..MTM198205-198303

main47101-16051iAL2#..MTM198303-198604

main47101-16060iAL2#..3FC198205-198604

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14002iAL2#198205-198604

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iAL2#198205-198408

main90386-13192iAL2#198408-198604

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-16080iAL2#..MTM198205-198501

sub55106-16081

main55106-16081iAL2#..MTM198501-198604

main55106-16090iAL2#..3FC198205-198604

47121PAD, BRAKE PEDAL

main31321-12030iAL2#..MTM198205-198604

main47121-12020iAL2#..3FC198205-198604

47124SHAFT, BRAKE PEDAL

main90101-10081iAL2#198205-198604

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10027iAL2#198205-198604

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAL2#198205-198604

47264APIN(FOR PUSH ROD)

main90249-08051iAL2#198205-198604

9046816142

main90468-16142

9165160840

main91651-60840

9165660818

main91656-60818

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
