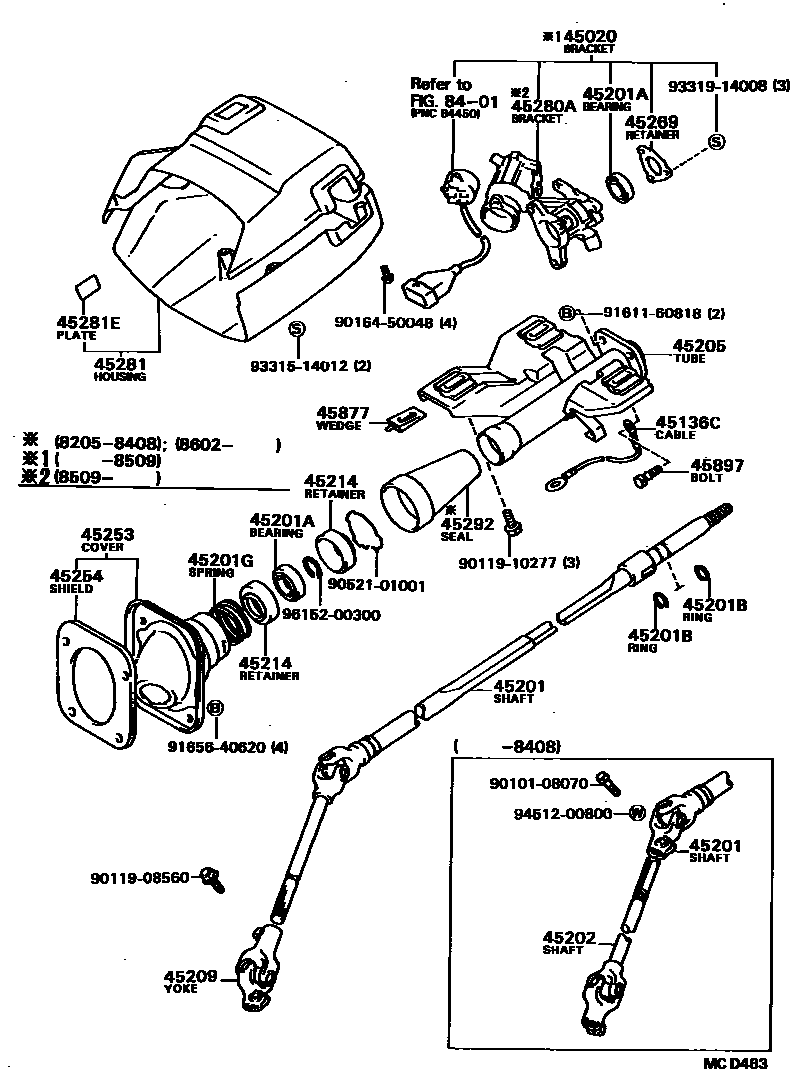

STEERING COLUMN & SHAFT

0001 1 0003 1 0005 1 0007 1 0008 1 0011 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-16020iAL2#198205-198509

45136CCABLE, BOND(FOR HORN EARTH)

main90980-07204iAL2#198205-198604

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-16040iAL2#..DLX,GL,SR198408-198604

W/POWER STEERING

main45210-16050iAL2#198205-198408

main45210-16060iAL2#198408-198604

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18003iAL2#..CTD,DLX,GL,SR198205-198604

UPR

sub90363-18038

main90363-18038iAL21..SE198205-198408

UPR,W/TILT STEERING

main90363-30015iAL2#198205-198604

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAL2#198205-198604

main90520-17196iAL2#198205-198604

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-32003iAL2#198205-198604

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-16030iAL2#198205-198408

main45202-16050iAL2#..GL,SE198205-198408

W/POWER STEERING

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-16030iAL21..SE198205-198401

sub45205-16H00

main45205-16031iAL21..SE198401-198408

main45205-16031iAL2#..GL,SR198408-198604

W/TILT STEERING

main45205-16040iAL2#..CTD,DLX,GL,SR198205-198604

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-10020iAL2#198408-198604

main45209-16010iAL2#..DLX,GL,SR198408-198604

W/POWER STEERING

45214RETAINER, MAIN SHAFT SPRING

main45214-10010iAL2#198205-198604

45253COVER, STEERING COLUMN HOLE

main45025-16030iAL2#198205-198408

sub45025-16050

main45025-16050iAL2#198408-198604

45254SHIELD, STEERING COLUMN HOLE

main45254-16020iAL2#198205-198604

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iAL2#198205-198604

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-16010iAL2#198509-198604

45281HOUSING, STEERING COLUMN

main45286-16020-01iAL21..3DS..SR198305-198604

UPR,BLACK SR,BLACK

main45286-16020-02iAL20..GL198205-198604

UPR,DARK WINE,RED/MAROON,TRIM3#

main45286-16020-03iAL2#..DLX,GL,SR198205-198408

UPR,GRAY,GRAY,TRIM1#

main45286-16020-06iAL2#..CTD,DLX,GL,SR198205-198408

UPR,BROWN,BROWN,TRIM4#

main45286-16020-13iAL2#198408-198604

UPR,GRAY,GRAY,TRIM1#

main45286-16030-02iAL20..GL198408-198604

UPR,W/TILT STEERING,DARK WINE,RED/MAROON,TRIM3#

main45286-16030-02iAL21..SE198205-198408

UPR,DARK WINE,RED/MAROON,TRIM3#

main45286-16030-03iAL21..SE198205-198408

UPR,GRAY,GRAY,TRIM1#

main45286-16030-06iAL21..SE198205-198408

UPR,BROWN,BROWN,TRIM4#

main45286-16030-13iAL2#..GL,SR198408-198604

UPR,W/TILT STEERING,GRAY,GRAY,TRIM1#

main45286-16902-02iAL20..GL198408-198604

LWR,W/TILT STEERING,DARK WINE,RED/MAROON,TRIM3#

sub45286-16902

main45287-16010-01iAL21..3DS..SR198305-198604

LWR,BLACK SR,BLACK

main45287-16010-02iAL2#..DLX,GL,SR198205-198604

LWR,DARK WINE,RED/MAROON,TRIM3#

main45287-16010-03iAL2#..DLX,GL,SR198205-198408

LWR,GRAY,GRAY,TRIM1#

main45287-16010-06iAL2#..CTD,DLX,GL,SR198205-198408

LWR,BROWN,BROWN,TRIM4#

main45287-16010-13iAL2#198408-198604

LWR,GRAY,GRAY,TRIM1#

main45287-16020-02iAL21..SE198205-198408

LWR,DARK WINE,RED/MAROON,TRIM3#

main45287-16020-03iAL21..SE198205-198408

LWR,GRAY,GRAY,TRIM1#

main45287-16020-06iAL21..SE198205-198408

LWR,BROWN,BROWN,TRIM4#

main45287-16020-13iAL2#..GL,SR198408-198604

LWR,W/TILT STEERING,GRAY,GRAY,TRIM1#

45281EPLATE, SAFETY CAUTION

main45283-12010iAL2#198205-198604

45292SEAL, MAIN SHAFT LOWER DUST

main45292-10010iAL2#198205-198604

45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)

main45877-12010iAL2#198205-198604

45897BOLT, STEERING LOCK SET

main45897-12020iAL2#..CTD,DLX,GL,SR198205-198604

8401

9010108070

main90101-08070

9011908560

main90119-08560

9011910277

main90119-10277

9016450048

main90164-50048

9052101001

main90521-01001

9161160818

main91611-60818

9165640620

main91656-40620

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

9615200300

main96152-00300

31 parts on this diagram · 6 diagrams in section
