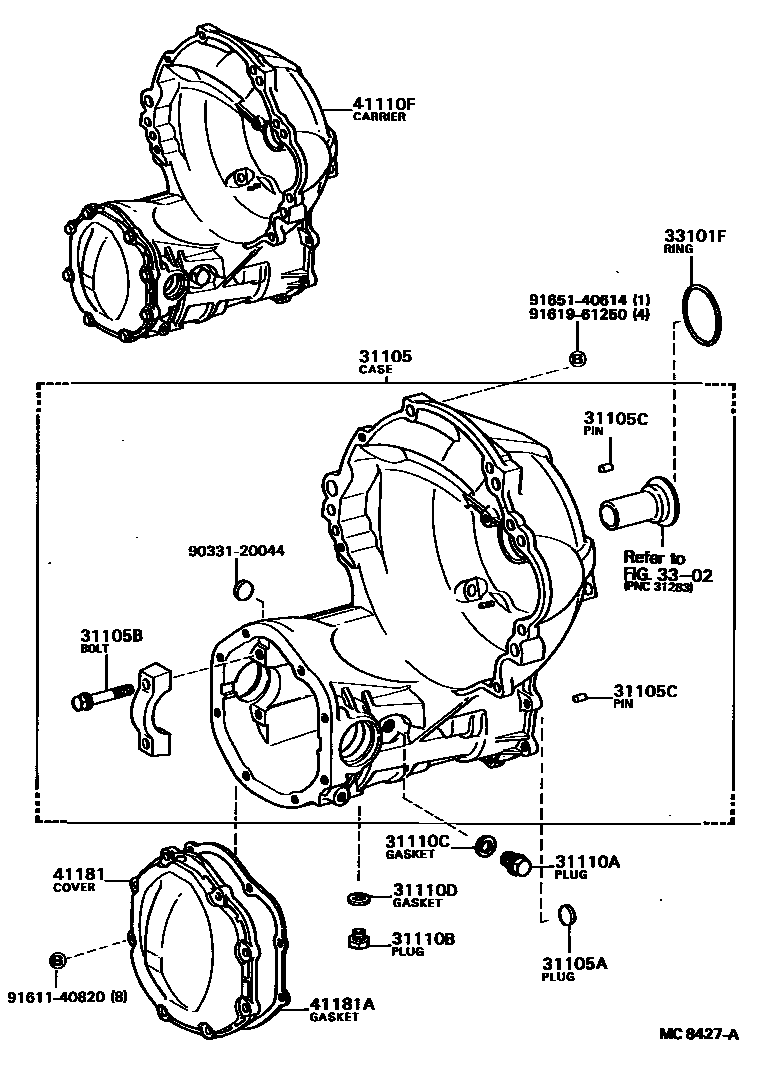

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-16011iAL2#..MTM198205-198408

main31105-16012iAL2#..MTM198408-198604

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-29001iAL2#..4F198205-198604

31105BBOLT, HEXAGON(FOR DIFFERENTIAL BEARING CAP SETTING)

main90105-10008×4iAL2#..MTM198205-198604

31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)

main90250-10232×2iAL2#..MTM198205-198604

31110APLUG(FOR DIFFERENTIAL FILLER)

main90341-18006iAL2#..MTM198205-198604

31110BPLUG(FOR DIFFERENTIAL DRAIN)

main90341-18057iAL2#..MTM198205-198604

31110CGASKET(FOR DIFFERENTIAL FILLER)

main12157-10010iAL2#..MTM198205-198604

31110DGASKET(FOR DIFFERENTIAL DRAIN)

main12157-10010iAL2#..MTM198205-198604

3302

33101FRING, O(FOR INPUT FRONT)

main90301-54002iAL2#..MTM198205-198604

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-16011iAL20..4F198408-198604

R=43:12,*AXC=Y372

main41110-16021iAL21..5F..SR198205-198604

R=41:11,*AXC=Y302

main41110-16050iAL21..3FC198408-198604

R=41:11,*AXC=Y302

main41110-16070iAL2#..3FC198205-198408

R=43:12,*AXC=Y372

main41110-16080iAL20..4F..DLX198205-198408

R=41:13,*AXC=Y392

41181COVER, FRONT DIFFERENTIAL CARRIER

main41181-16020iAL2#198205-198604

41181AGASKET, FRONT DIFFERENTIAL CARRIER COVER

main41182-16010iAL2#198205-198604

9033120044

main90331-20044

9161140820

main91611-40820

9161961250

main91619-61250

9165140614

main91651-40614

17 parts on this diagram · 4 diagrams in section
