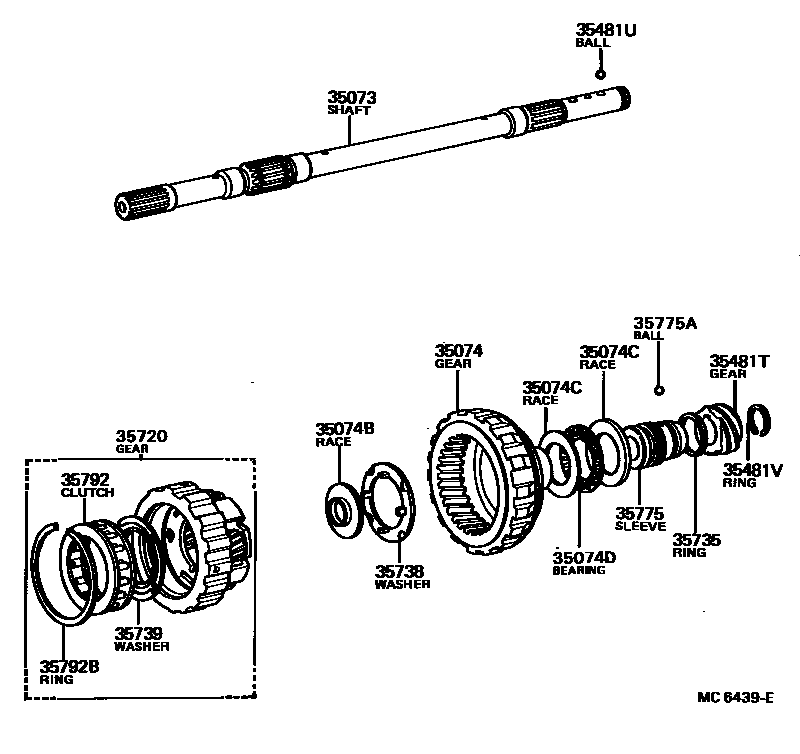

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073SHAFT SUB-ASSY, OUTPUT
35074GEAR SUB-ASSY, REAR PLANETARY RING
35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)
35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)
FLANGE SIDE
CASE SIDE
35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
35481TGEAR, SPEEDMETER DRIVE (ATM)
N=6
35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
35720GEAR ASSY, FRONT PLANETARY
35735RING, PLANETARY OUTPUT SNAP
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35775SLEEVE, OUTPUT SHAFT
35775ABALL, OUTPUT SHAFT SLEEVE
35792CLUTCH, 1 WAY, NO.2
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
16 parts on this diagram · 1 diagram in section
