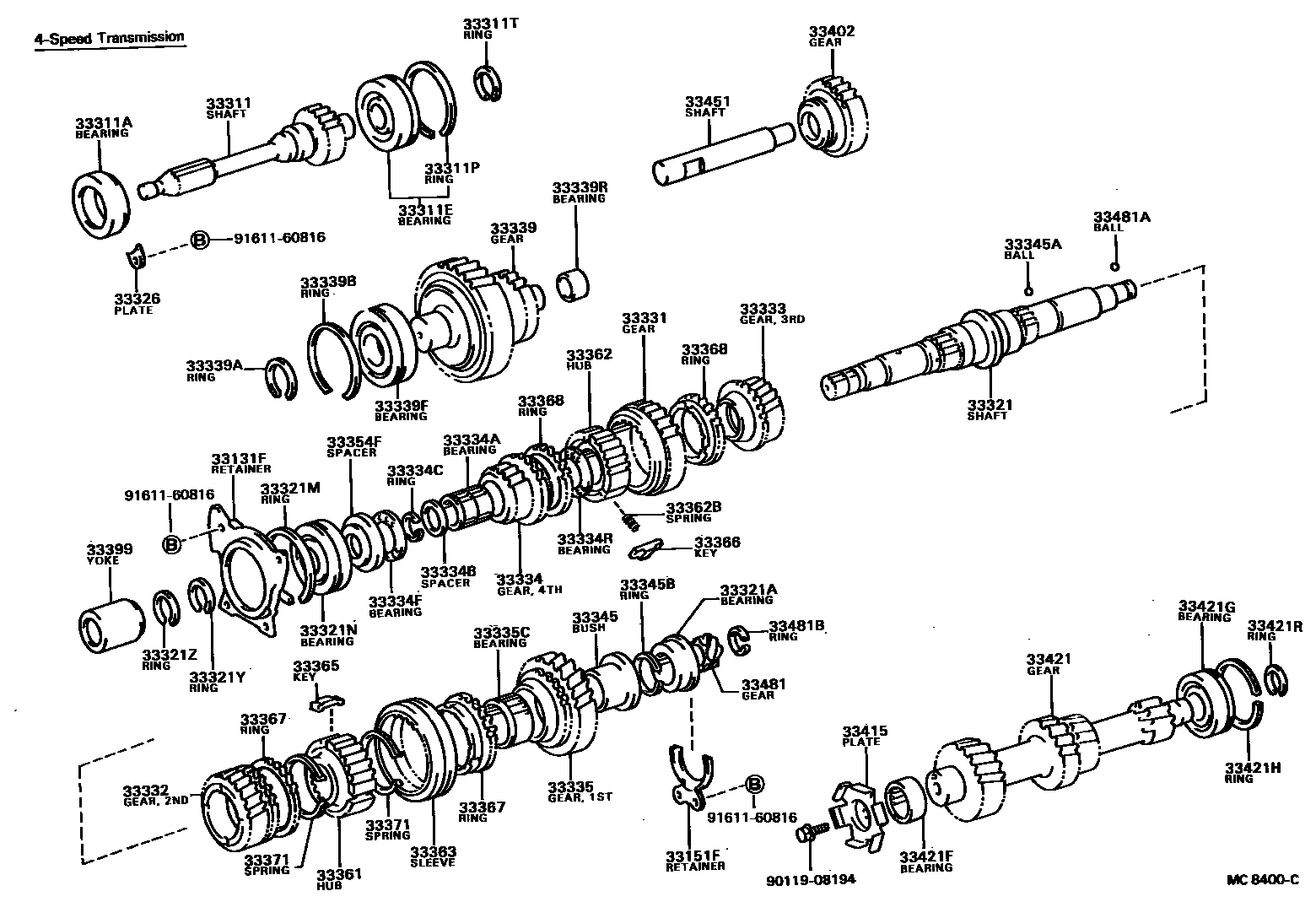

TRANSMISSION GEAR (MTM)
33131FRETAINER, OUTPUT SHAFT BEARING, FRONT
33151FRETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321MRING, SHAFT SNAP (FOR BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321YRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
33321ZRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33333GEAR, 3RD
N=23,*AXC=Y372,Y302
N=22,*AXC=Y392
N=23,*AXC=Y372,Y302
N=22,*AXC=Y392
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33334CRING, SHAFT SNAP (FOR 4TH GEAR THRUST FRONT NEEDLE BEARING)
33334FBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR FRONT)
33334RBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR REAR)
33335GEAR, 1ST
N=35,*AXC=Y372,Y302
N=34,*AXC=Y392
N=35,*AXC=Y372,Y302
N=34,*AXC=Y392
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33339ARING, SHAFT SNAP (FOR IDLER GEAR)
33339BRING, SHAFT SNAP (FOR IDLER GEAR FRONT BEARING)
33339FBEARING, RADIAL BALL (FOR IDLER GEAR FRONT)
33339RBEARING, NEEDLE ROLLER (FOR IDLER GEAR REAR)
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33345BRING, SHAFT SNAP (FOR 1ST GEAR BUSH)
33354FSPACER (FOR 4TH GEAR FRONT THRUST BEARING)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362BSPRING, COMPRESSION (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33399YOKE, TRANSMISSION SLEEVE (MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33415PLATE, COUNTER GEAR
33421GEAR, COUNTER
*AXC=Y372
*AXC=Y372
*AXC=Y392
33421FBEARING, NEEDLE ROLLER(FOR COUNTER GEAR FRONT)
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33421HRING, SHAFT SNAP(FOR COUNTER GEAR REAR BEARING)
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
Z43,Z45,Z52,Z53,*AXC=Y372,Y302
Z44,*AXC=Y392
Z46,*AXC=Y392
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9011908194
main90119-08194
9161160816
main91611-60816
57 parts on this diagram · 2 diagrams in section
