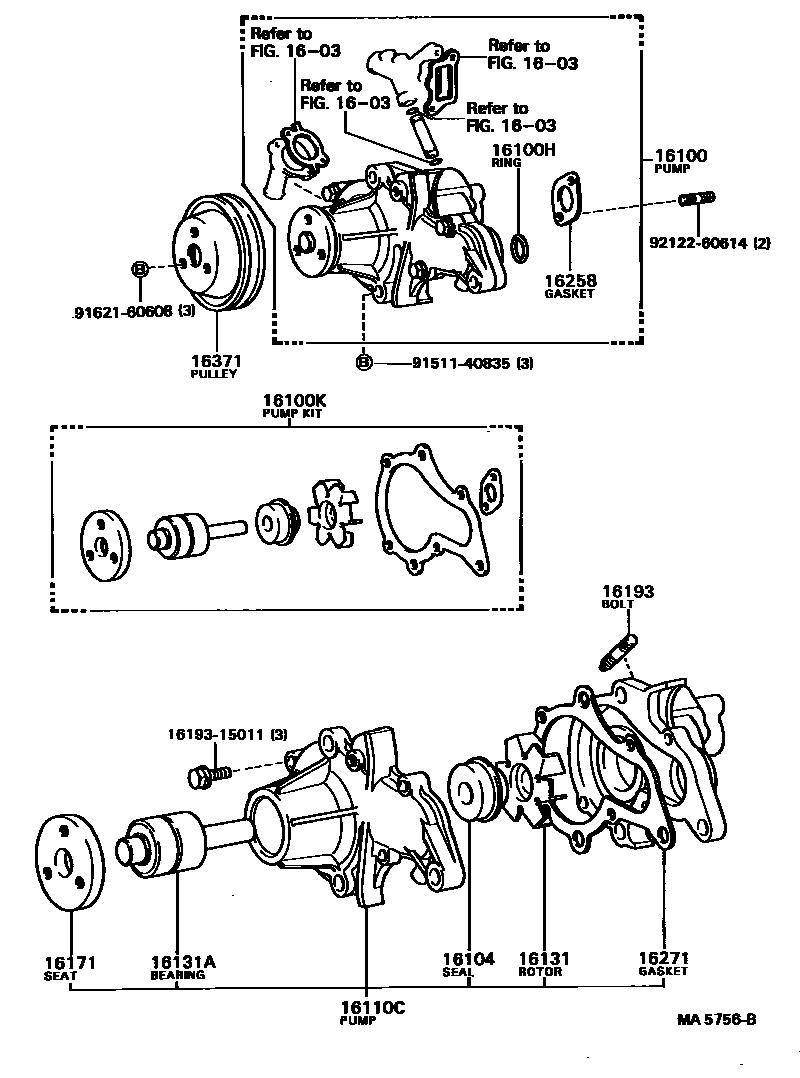

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-19027i2AU,3A#..AL2#198205-198604

16100HRING, O(FOR WATER PUMP)

main96711-24035i2AU,3A#..AL2#198205-198604

sub96761-24035

16100KPUMP KIT, WATER

main04161-15020i2AU,3A#..AL2#198205-198604

sub04161-15021

16104SEAL SET, WATER PUMP

main16104-15020i2AU,3A#..AL2#198405-198604

main16104-41111i2AU,3A#..AL2#198205-198405

16110CPUMP ASSY, WATER, W/O COVER

main16110-19035i2AU,3A#..AL2#198205-198604

sub16110-19036

16131ROTOR, WATER PUMP

main16131-15010i2AU,3A#..AL2#198205-198604

16131ABEARING, WATER PUMP

main90369-30024i2AU,3A#..AL2#198205-198604

16171SEAT, WATER PUMP PULLEY

main16171-15011i2AU,3A#..AL2#198205-198604

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010×2i2AU,3A#..AL2#198205-198604

16258GASKET(FOR HEATER RETURN)

main16258-15011i2AU,3A#..AL2#198205-198604

16271GASKET, WATER PUMP

main16124-15010i2AU,3A#..AL2#198205-198604

sub16124-16020

16371PULLEY, FAN

main16371-15011i2AU,3A#..AL2#198205-198604

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9151140835

main91511-40835

9162160608

main91621-60608

9212260614

main92122-60614

17 parts on this diagram · 1 diagram in section
