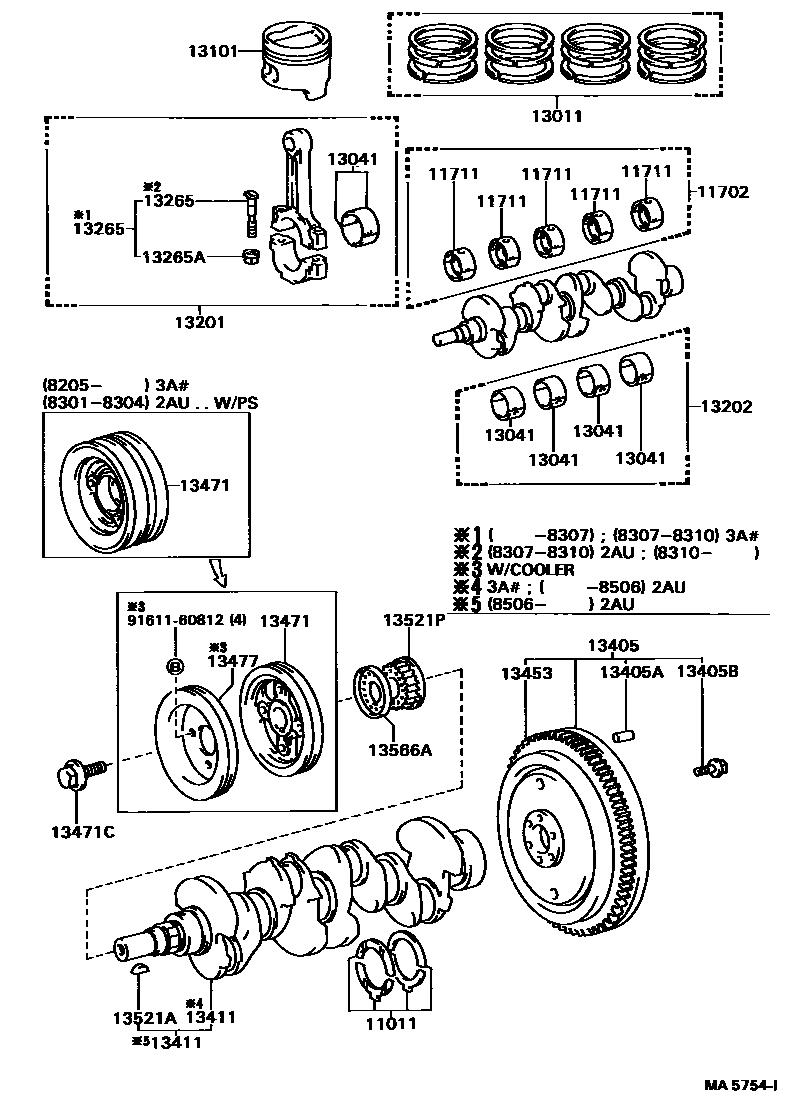

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-15010i2AU,3A#..AL2#198205-198604

sub11011-15020

11702BEARING SET, CRANKSHAFT

main11704-15011i2AU,3A#..AL2#198205-198301

U/S 0.25

main11704-15050i2AU,3A#..AL2#198301-198604

sub11704-16010

11711BEARING, CRANKSHAFT

main11701-15011-01×5i2AU,3A#..AL2#198205-198301

MARK"1",MARK 1

main11701-15011-02×5i2AU,3A#..AL2#198205-198301

MARK"2",MARK 2

main11701-15011-03×5i2AU,3A#..AL2#198205-198301

MARK"3",MARK 3

main11701-15030-01×5i2AU,3A#..AL2#198301-198403

MARK"1",MARK 1

main11701-15030-02×5i2AU,3A#..AL2#198301-198403

MARK"2",MARK 2

main11701-15030-03×5i2AU,3A#..AL2#198301-198403

MARK"3",MARK 3

main11701-15050-01×5i2AU,3A#..AL2#198407-198604

MARK"1",MARK 1

main11701-15050-02×5i2AU,3A#..AL2#198407-198604

MARK"2",MARK 2

main11701-15050-03×5i2AU,3A#..AL2#198407-198604

MARK"3",MARK 3

main11701-16010-01×5i2AU,3A#..AL2#198403-198407

MARK"1",MARK 1

main11701-16010-02×5i2AU,3A#..AL2#198403-198407

MARK"2",MARK 2

main11701-16010-03×5i2AU,3A#..AL2#198403-198407

MARK"3",MARK 3

13011RING SET, PISTON

main13011-14020i2AU..AL20198205-198304

STD

main13011-14021i2AU..AL20198304-198604

main13011-15010i3A#..AL21198205-198304

STD

main13011-15011i3A#..AL21198304-198604

main13013-14020i2AU..AL20198205-198604

main13013-15010i3A#..AL21198205-198604

main13014-14020i2AU..AL20198205-198604

main13014-15010i3A#..AL21198205-198604

main13015-14020i2AU..AL20198205-198604

main13015-15010i3A#..AL21198205-198604

13041BEARING, CONNECTING ROD

main13041-15011-01×4i2AU,3A#..AL2#198205-198307

MARK"1",MARK 1

main13041-15011-02×4i3A#..AL21198307-198310

MARK"2",MARK 2

main13041-15011-03×4i2AU,3A#..AL2#198205-198307

MARK"3",MARK 3

main13041-15030-01×4i2AU,3A#..AL2#198310-198604

MARK"1",MARK 1

sub13041-15031

main13041-15030-02×4i2AU..AL20198307-198310

MARK"2",MARK 2

sub13041-15031

main13041-15030-03×4i2AU..AL20198307-198310

MARK"3",MARK 3

sub13041-15031

13101PISTON SUB-ASSY, W/PIN

main13101-14020×4i2AU..AL20198205-198604

main13101-15020×4i3A#..AL21198205-198604

main13103-14020×4i2AU..AL20198205-198604

main13103-15020×4i3A#..AL21198205-198604

main13104-14020×4i2AU..AL20198205-198604

main13104-15020×4i3A#..AL21198205-198604

main13105-14020×4i2AU..AL20198205-198604

main13105-15020×4i3A#..AL21198205-198604

13201ROD SUB-ASSY, CONNECTING

main13201-19015×4i2AU,3A#..AL2#198205-198305

main13201-19016×4i2AU,3A#..AL2#198305-198306

main13201-19045×4i2AU,3A#..AL2#198306-198307

main13201-19055×4i2AU..AL20198307-198310

sub13201-19056

13202BEARING SET, CONNECTING ROD

main13204-15011i2AU,3A#..AL2#198205-198307

main13204-15030i2AU..AL20198307-198310

sub13204-15031

13265BOLT, CONNECTING ROD

main13265-15020×8i2AU..AL20198307-198310

sub13265-16010

sub90170-09003

main13265-19015×8i3A#..AL21198307-198310

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i2AU,3A#..AL2#198310-198604

main90179-08014×8i2AU,3A#..AL2#198205-198307

13405FLYWHEEL SUB-ASSY

main13405-15060i2AU,3A#..AL2#..MTM198407-198604

main13405-19105i2AU,3A#..AL2#..MTM198205-198407

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i2AU,3A#..AL2#..MTM198205-198604

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i2AU,3A#..AL2#..MTM198205-198604

13411CRANKSHAFT

main13411-14010i2AU..AL20198205-198301

main13411-14030i2AU..AL20198301-198506

main13411-14900i2AU..AL20198506-198604

main13411-15011i3A#..AL21198205-198208

sub13411-15010

main13411-15021i3A#..AL21198208-198301

main13411-15030i3A#..AL21198301-198604

sub13411-15040

13453GEAR, FLYWHEEL RING

main13453-15010i2AU,3A#..AL2#..MTM198205-198604

13471PULLEY, CRANKSHAFT

main13407-15013i2AU..AL20..GL198301-198304

W/PS

main13470-15050i3A#..AL21198508-198604

main13471-15010i2AU..AL20198205-198604

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12012i2AU,3A#..AL2#198205-198601

main90119-12101i2AU,3A#..AL2#198601-198604

13477PULLEY, CRANKSHAFT, NO.2

main88358-16030i2AU..AL20198205-198604

W/COOLER & W/O PS

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i2AU,3A#..AL2#198205-198604

13521PPULLEY, CRANKSHAFT TIMING

main13521-15010i2AU,3A#..AL2#198205-198604

13566AGUIDE, TIMING BELT

main13566-15010i2AU,3A#..AL2#198205-198604

9161160812

main91611-60812

22 parts on this diagram · 1 diagram in section
