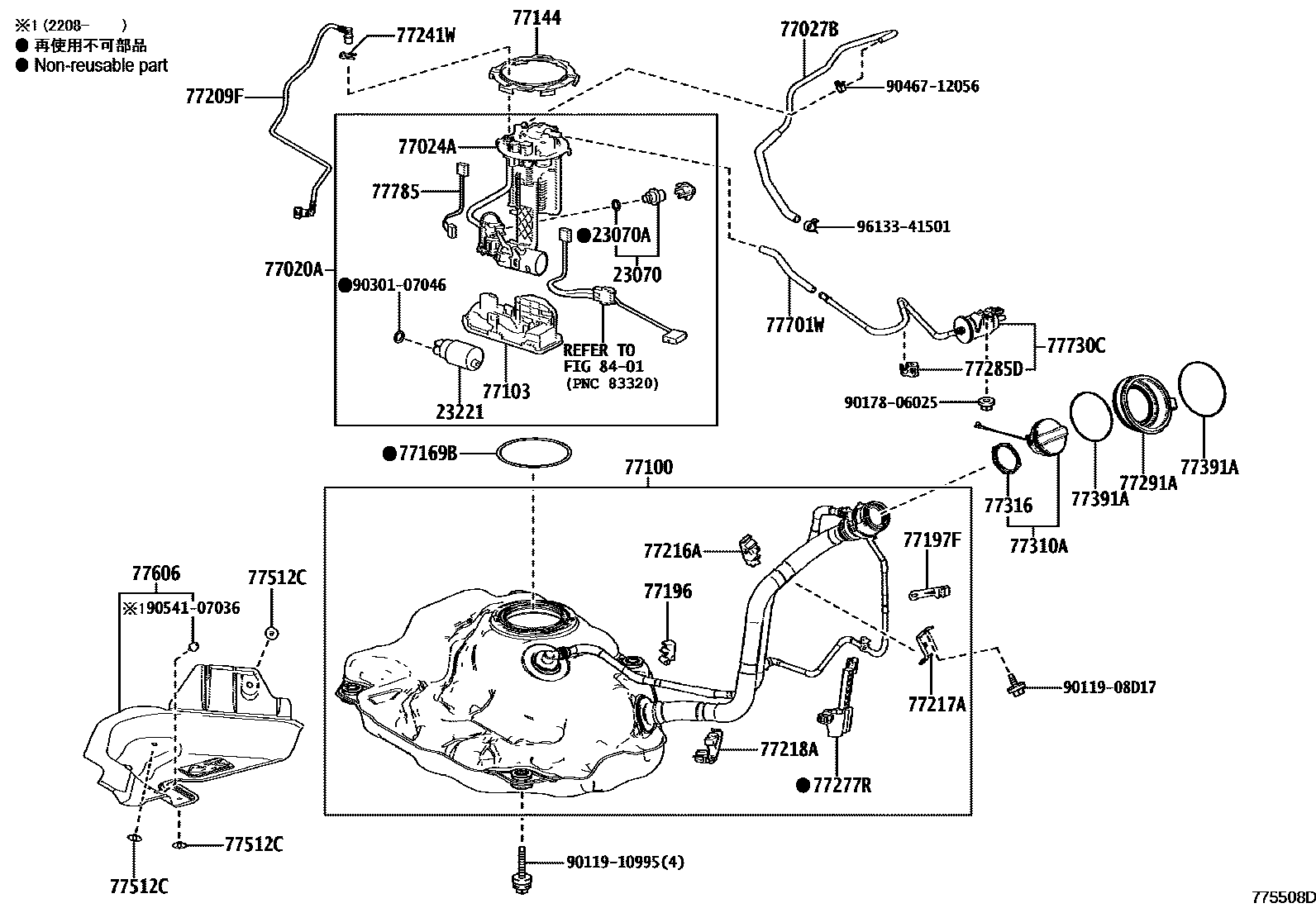

FUEL TANK & TUBE

0001 1�������� 0003 1�������� 0004 1�������� 0006 1�������� 0007 1���������� 0008 1��������������

23070VALVE ASSY, FUEL MAIN

main23070-24010iM15AFXE..MXPK10,15202106-202403

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM15AFXE..MXPK11,16202106-202212

23221PUMP, FUEL

main23210-24010iM15AFXE..MXPK11,16202106-202212

main23210-37020iM15AFXE..MXPK11,16202212

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-52630iMXPK11,16202106-202212

main77020-52680iMXPK11,16202212

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-52360iMXPK11,16202106-202212

main77024-52380iMXPK11,16202212

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-52230iMXPK10,15202106-202403

77100TANK ASSY, FUEL

main77001-52690iMXPK11202106

main77001-52700iMXPK15202106-202403

77103SUB-TANK SUB-ASSY, FUEL

main77103-52120iMXPK11,16202106-202212

main77103-52130iMXPK11,16202212

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXPK10,15202106-202403

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iMXPK10,15202106-202403

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-52010iMXPK10,15202106-202403

77197FCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52020iMXPK10,15202106-202403

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52310iMXPK10,15202106-202403

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-52300iMXPK11,16202106

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52180iMXPK10,15202106-202403

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-52050iMXPK11202106

main77218-52060iMXPK15202106-202403

77241WCLIP, TUBE JOINT

main77241-60550iMXPK10,15202106-202403

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52120iMXPK10202106-202403

main77277-52130iMXPK15202106-202403

77285DCLAMP, FUEL TUBE, NO.1

main77285-50030iMXPK10,15202106-202403

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-K0010iMXPK10,15202106-202403

77310ACAP ASSY, FUEL TANK

main77300-12020iMXPK10,15202106-202403

77316GASKET, FUEL TANK CAP

main77316-52040iMXPK11,16202106

77391ARING, FUEL INLET BOX

main77391-12020×2iMXPK10,15202106-202403

77512CBRACKET, FUEL TANK

main77512-35140×3iMXPK10,15202106-202403

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-52160iMXPK1#202106-202207

main77606-52161iMXPK10,15202208-202403

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-52080iMXPK10,15202106-202403

77730CCANISTER ASSY, CHARCOAL, NO.2

main77730-52020iMXPK16202106

main77730-52040iMXPK11202106

77785HARNESS, FUEL PUMP

main77785-52120iMXPK11,16202106-202212

main77785-52141iMXPK11,16202212

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9017806025

main90178-06025

9030107046

main90301-07046

9046712056

main90467-12056

9054107036

main90541-07036

9613341501

main96133-41501

36 parts on this diagram · 6 diagrams in section
