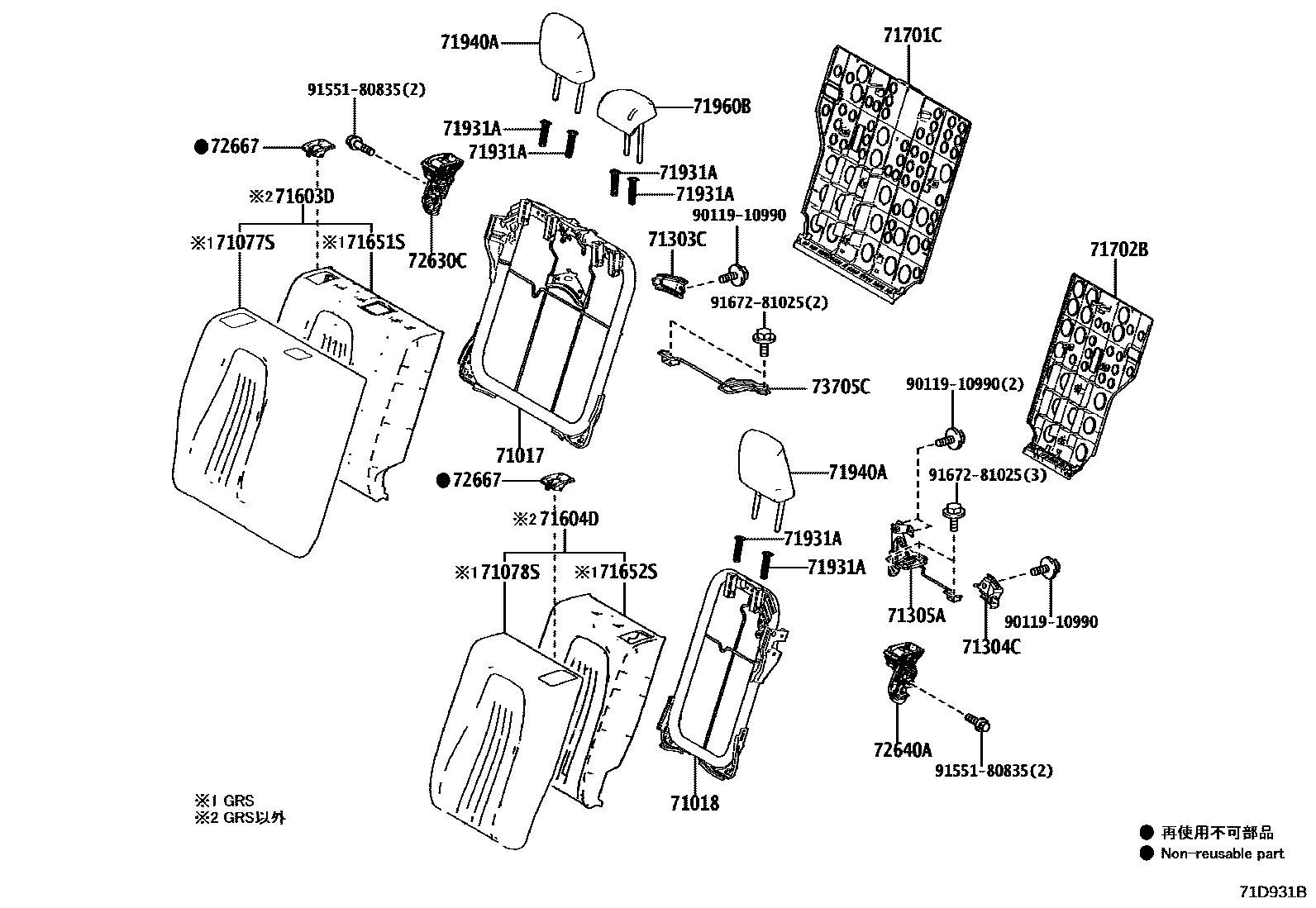

REAR SEAT & SEAT TRACK

0001 1������� 0002 1�������, ��(���������) 0003 1��������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52870iMXPK11,16..X202106

main71017-52870iMXPK11,16..G,Z202106

main71017-52890iMXPK11,16..GRS,X202106-202403

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-K0020iMXPK10,15202106-202403

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-52U70-C1iMXPK11,16..X202106

main71077-52U70-C1iMXPK11,16..G,Z202106

BLACK,TRIM2#

main71077-52U70-C1iMXPK11,16..G,Z202106

main71077-52Z50-C1iMXPK11..GRS202212

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-52R10-C1iMXPK11..GRS202212

BLACK,TRIM2#

main71078-52S20-C0iMXPK11,16..G,Z202106

main71078-52S20-C0iMXPK11,16..X202106

BLACK,TRIM2#

main71078-52S20-C0iMXPK11,16..X202106

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-K0030iMXPK10,15202106-202403

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-K0030iMXPK11,16202106-202403

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-K0040iMXPK10,15202106-202403

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52U40-C0iMXPK10,15202106-202403

BLACK,TRIM2#

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52R60-C0iMXPK10,15202106-202403

BLACK,TRIM2#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-52870iMXPK11,16..G,Z202106

main71651-52870iMXPK11,16..G,Z202106

main71651-K0050iMXPK11..GRS202212

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-52570iMXPK11,16..G,Z202106

main71652-52570iMXPK11,16..G,Z202106

main71652-K0040iMXPK11..GRS202212

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-K0030iMXPK10,15202106-202403

71702BBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-K0020iMXPK10,15202106-202403

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iMXPK11,16202106-202403

main71931-47030-C4iMXPK10,15202106-202403

71940AHEADREST ASSY, REAR SEAT

main71940-52L70-C0iMXPK1#..B,G,X,Z202106-202310

BLACK,TRIM2#

sub71940-52L71

main71940-52L71iMXPK10,15202311-202403

main71940-52L71-C0iMXPK11,16..G,X,Z202311

BLACK,TRIM2#

main71940-52P00-C1iMXPK11..GRS202212-202310

BLACK,TRIM2#

sub71940-52P01

main71940-52P01-C1iMXPK11..GRS202311

BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-52C70-C1iMXPK11..GRS202212

BLACK,TRIM2#

main71960-K0050-C2iMXPK11,16..G,X,Z202106-202403

BLACK,TRIM2#

sub71960-K0050

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2iMXPK10,15202106-202403

BLACK,TRIM2#

sub72630-47050

main72630-47050-C2iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

sub72630-47050

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2iMXPK10,15202106-202403

BLACK,TRIM2#

sub72640-47050

main72640-47050-C2iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

sub72640-47050

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1iMXPK10,15202106-202403

BLACK,TRIM2#

main72667-47010-C1iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

73705CBRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR

main73705-K0030iMXPK11,16202106-202403

9011910990

main90119-10990

9155180835

main91551-80835

9167281025

main91672-81025

23 parts on this diagram · 3 diagrams in section
