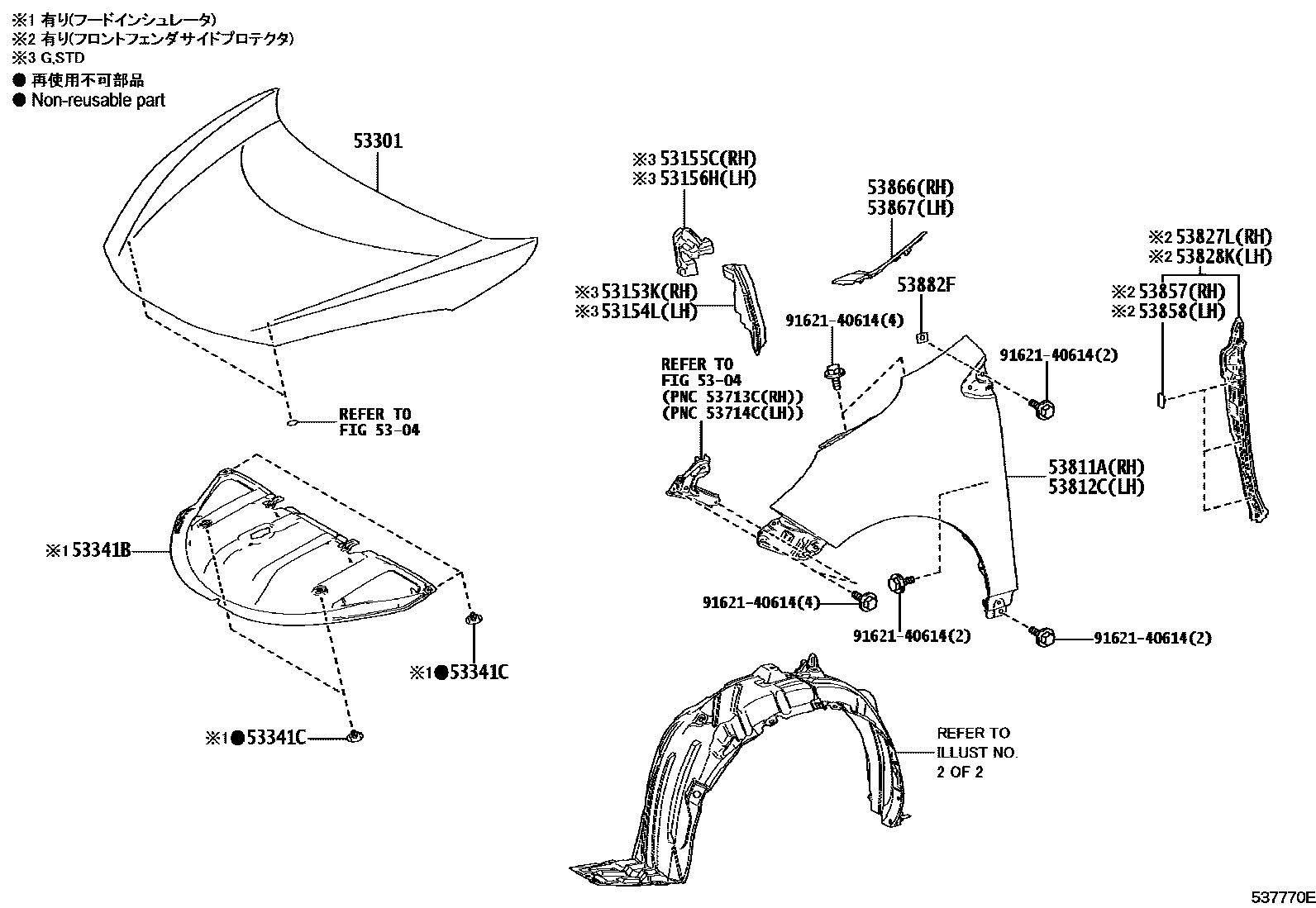

HOOD & FRONT FENDER

0001 1 0002 1��������

5304

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-52050iMXPK11,16..G,GRS,Z202106

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-52050iMXPK11,16..G,GRS,Z202106

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-52090iMXPK11,16..G,GRS,Z202106

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-52020iMXPK11,16..G,GRS,Z202106

53301HOOD SUB-ASSY

main53301-52440iMXPK10,15202106-202403

53341BINSULATOR, HOOD

main53341-52250iMXPK11,16..G,GRS,Z202106

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×4iMXPK11,16..G,GRS,Z202106

53811APANEL, FRONT FENDER, RH

main53811-52610iMXPK10,15202106-202403

53812CPANEL, FRONT FENDER, LH

main53812-52610iMXPK10,15202106-202403

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52220iMXPK11,16..X202106

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52230iMXPK11,16..X202106

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×3iMXPK11,16..X202106

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×3iMXPK11,16..X202106

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52180iMXPK10,15202106-202403

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52200iMXPK10,15202106-202403

53882FSEAL, FRONT FENDER

main53882-16030×2iMXPK10,15202106-202403

9162140614

main91621-40614

18 parts on this diagram · 2 diagrams in section
