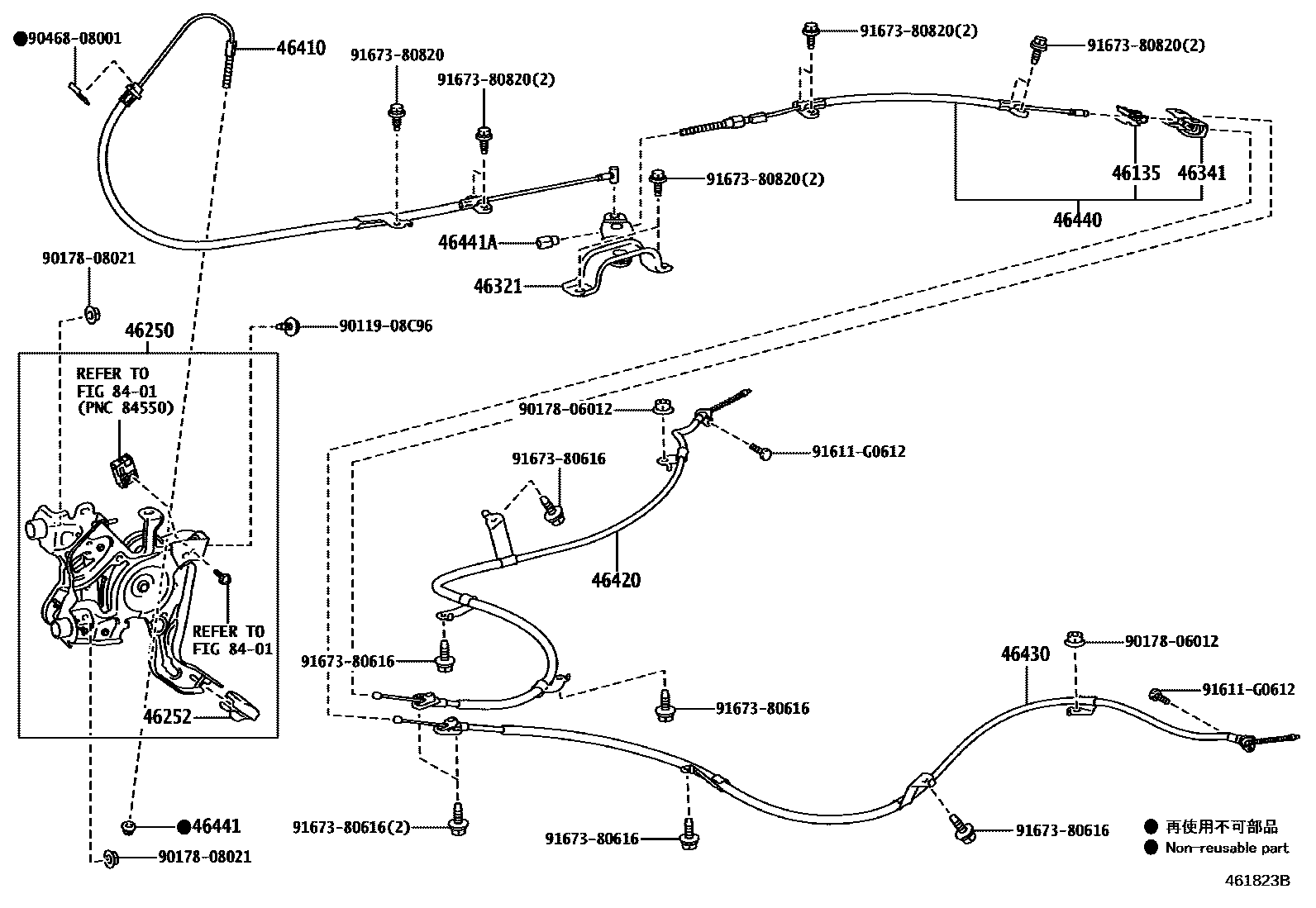

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-K0010iMXPK11,16202106-202403

46250PEDAL ASSY, PARKING BRAKE W/O CABLE

main46250-52020iMXPK10,15202106-202403

46252PAD, PARKING PEDAL

main46252-47020iMXPK10,15202106-202403

46321LEVER, PARKING BRAKE INTERMEDIATE

main46320-52070iMXPK11,16202106-202403

46341EQUALIZER, PARKING BRAKE

main46341-K0010iMXPK10,15202106-202403

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52140iMXPK10,15202106-202403

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52510iMXPK10202106-202403

main46420-52520iMXPK15202106-202403

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52510iMXPK10202106-202403

main46430-52520iMXPK15202106-202403

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-52010iMXPK11,16202106-202403

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iMXPK10,15202106-202403

46441ANUT, WIRE ADJUSTING, NO.2

main46441-47020iMXPK10,15202106-202403

8401

9011908C96

main90119-08C96

9017806012

main90178-06012

9017808021

main90178-08021

9046808001

main90468-08001

91611G0612

main91611-G0612

9167380616

main91673-80616

9167380820

main91673-80820

19 parts on this diagram · 2 diagrams in section
