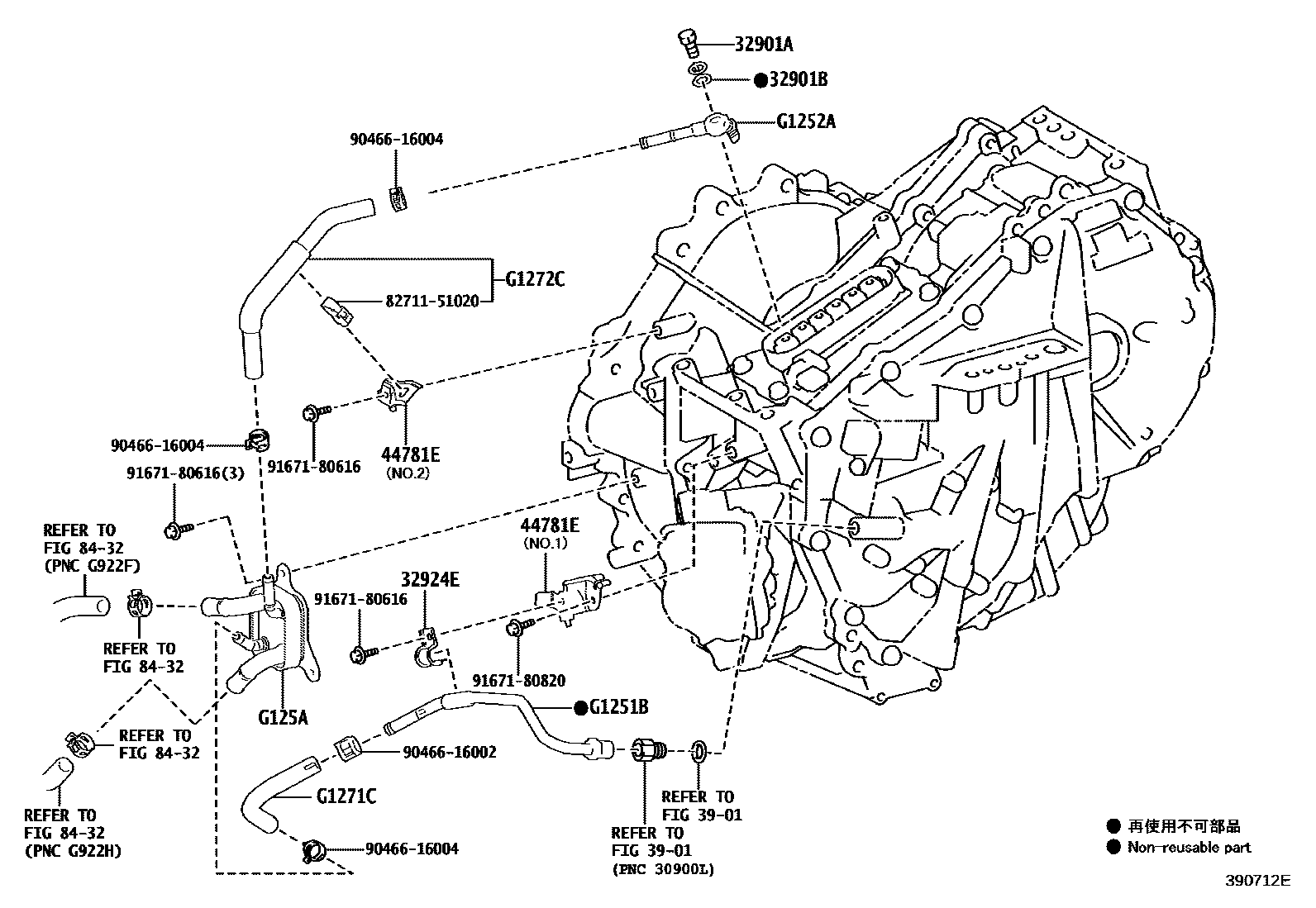

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMXPK11,16202106-202403

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMXPK10,15202106-202403

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iMXPK11,16202106-202403

3901

44781EBRACKET, HOSE

main44781-52070iMXPK10,15202106-202403

main44781-K0010iMXPK10,15202106-202403

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125152030iMXPK10,15202106-202403

G1252APIPE, MOTOR COOLING, NO.2

mainG1252K0010iMXPK10,15202106-202403

G125ACOOLER, MOTOR COOLING

mainG125AK0010iMXPK10,15202106-202403

G1271CHOSE, MOTOR COOLING, NO.1

mainG127152030iMXPK10,15202106-202403

G1272CHOSE, MOTOR COOLING, NO.2

mainG1272K0010iMXPK10,15202106-202403

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9046616002

main90466-16002

9046616004

main90466-16004

9167180616

main91671-80616

9167180820

main91671-80820

16 parts on this diagram · 1 diagram in section
