MUDGUARD & SPOILER

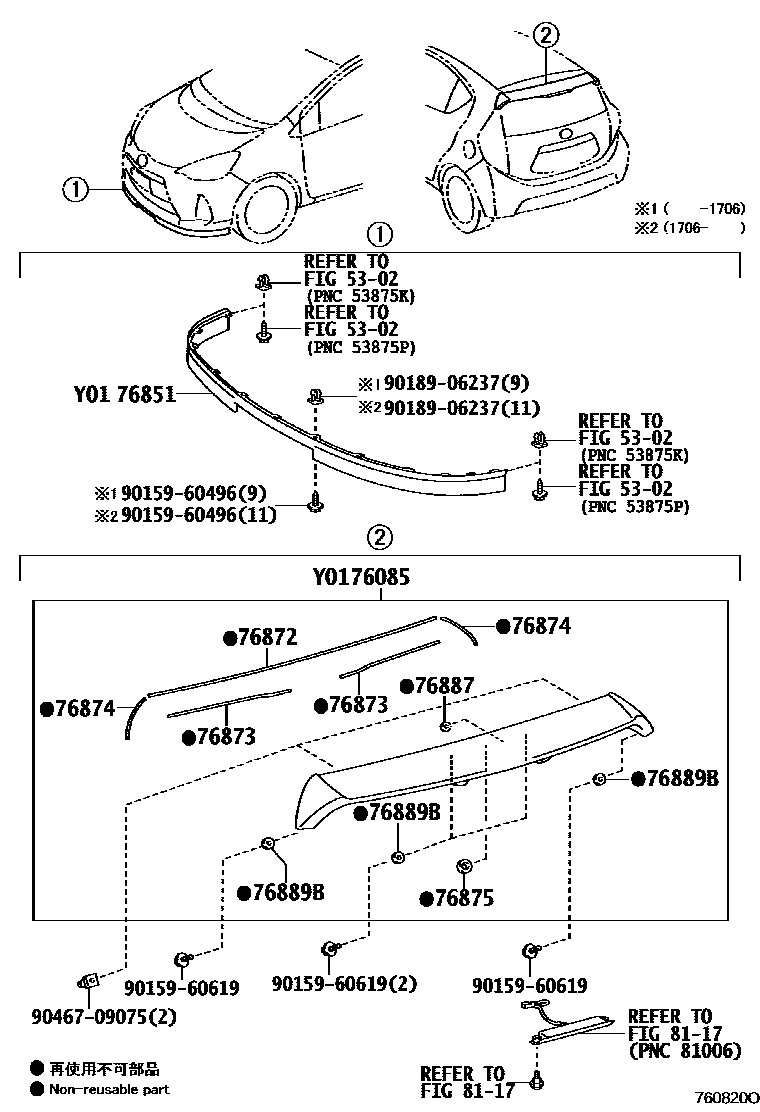

Parts diagram
5302
76085SPOILER SUB-ASSY, REAR
main76085-52904-A1i201112-201412
SUPER WHITE 2,040
sub76085-52913
main76085-52904-A2i201112-201412
LIME WHITE PEARL CS.,082
sub76085-52913
main76085-52904-B0i201112-201412
SILVER ME.,1F7
sub76085-52913
main76085-52904-B1i201112-201412
GRAY ME.,1G3
sub76085-52913
main76085-52904-C0i201112-201412
BLACK ME.,209
sub76085-52913
main76085-52904-D0i201112-201412
SUPER RED 5,3P0
sub76085-52913
main76085-52904-E1i201112-201412
MANDARIN ORANGE M.M,4V7
sub76085-52913
main76085-52904-F0i201112-201412
YELLOW,5A3
sub76085-52913
main76085-52904-J2i201112-201412
BLUE ME.,8T7
sub76085-52913
main76085-52904-J3i201112-201412
COOL SODA ME.,8V7
sub76085-52913
main76085-52904-K0i201312-201412
DEEP AMETHYST M.M.,9AH
sub76085-52913
main76085-52905-A1i201112-201412
sub76085-52914
main76085-52905-A2i201112-201412
sub76085-52914
main76085-52905-B0i201112-201412
sub76085-52914
main76085-52905-B1i201112-201412
sub76085-52914
main76085-52905-C0i201112-201412
sub76085-52914
main76085-52905-D0i201112-201412
sub76085-52914
main76085-52905-E1i201112-201412
sub76085-52914
main76085-52905-F0i201112-201412
sub76085-52914
main76085-52905-J2i201112-201412
sub76085-52914
main76085-52905-J3i201112-201412
sub76085-52914
main76085-52905-K0i201312-201412
sub76085-52914
main76085-52913-A0i201412-201607
SUPER WHITE 2,040
sub76085-52916
main76085-52913-A1i201412-201607
LIME WHITE PEARL CS.,082
sub76085-52916
main76085-52913-B0i201412-201607
SILVER ME.,1F7
sub76085-52916
main76085-52913-B1i201412-201607
GRAY ME.,1G3
sub76085-52916
main76085-52913-C0i201412-201607
BLACK MC.,082 ,209 ,3P0 ,588 ,5A3 ,8T7
sub76085-52916
main76085-52913-C0i201412-201607
BLACK MC.,209
sub76085-52916
main76085-52913-D0i201412-201607
SUPER RED 5,3P0
sub76085-52916
main76085-52913-D1i201412-201607
CHERRY PEARL CS.,3S7
sub76085-52916
main76085-52913-E0i201412-201607
ORANGE PEARL CS.,4X3
sub76085-52916
main76085-52913-F0i201412-201607
YELLOW,5A3
sub76085-52916
main76085-52913-F1i201412-201607
FRESH GREEN M.M.,588
sub76085-52916
main76085-52913-J0i201412-201607
BLUE ME.,8T7
sub76085-52916
main76085-52913-J1i201412-201607
COOL SODA ME.,8V7
sub76085-52916
main76085-52913-J2i201605-201607
DK.BLUE MC.,8S6
sub76085-52916
main76085-52913-K0i201412-201511
DK.VIOLET M.M.,9AF
sub76085-52916
main76085-52913-K1i201412-201607
DEEP AMETHYST M.M.,9AH
sub76085-52916
main76085-52913-K2i201511-201607
PURPLE ME.,9AD
sub76085-52916
main76085-52914-A0i201412-201706
main76085-52914-A1i201711-201808
main76085-52914-A1i201412-201706
main76085-52914-A2i201804
main76085-52914-B0i201412-201706
main76085-52914-B0i201711
main76085-52914-B1i201412-201706
main76085-52914-B1i201711-202008
main76085-52914-B4i202008
main76085-52914-C0i201412-201706
main76085-52914-C0i201711
main76085-52914-D0i201711
main76085-52914-D0i201412-201706
main76085-52914-D1i201412-201706
main76085-52914-E0i201412-201706
main76085-52914-F0i201412-201706
main76085-52914-F0i201711
main76085-52914-F1i201412-201706
main76085-52914-J0i201711
main76085-52914-J0i201412-201706
main76085-52914-J1i201412-201706
main76085-52914-J2i201605-201706
main76085-52914-K0i201412-201511
main76085-52914-K1i201412-201706
main76085-52914-K2i201511-201706
main76085-52916-A0i201607-201706
SUPER WHITE 2,040
sub76085-52933
main76085-52916-A1i201607-201706
LIME WHITE PEARL CS.,082
sub76085-52933
main76085-52916-B0i201607-201706
SILVER ME.,1F7
sub76085-52933
main76085-52916-B1i201607-201706
GRAY ME.,1G3
sub76085-52933
main76085-52916-C0i201607-201706
BLACK MC.,209
sub76085-52933
main76085-52916-C0i201607-201706
BLACK MC.,082 ,209 ,3P0 ,588 ,5A3 ,8T7
sub76085-52933
main76085-52916-D0i201607-201706
SUPER RED 5,3P0
sub76085-52933
main76085-52916-D1i201607-201706
CHERRY PEARL CS.,3S7
sub76085-52933
main76085-52916-E0i201607-201706
ORANGE PEARL CS.,4X3
sub76085-52933
main76085-52916-F0i201607-201706
YELLOW,5A3
sub76085-52933
main76085-52916-F1i201607-201706
FRESH GREEN M.M.,588
sub76085-52933
main76085-52916-J0i201607-201706
BLUE ME.,8T7
sub76085-52933
main76085-52916-J1i201607-201706
COOL SODA ME.,8V7
sub76085-52933
main76085-52916-J2i201607-201706
DK.BLUE MC.,8S6
sub76085-52933
main76085-52916-K1i201607-201706
DEEP AMETHYST M.M.,9AH
sub76085-52933
main76085-52916-K2i201607-201706
PURPLE ME.,9AD
sub76085-52933
main76085-52917-A0i201706
SUPER WHITE 2,040
sub76085-52939
sub76085-52917
main76085-52917-A1i201706-201808
LIME WHITE PEARL CS.,082
sub76085-52939
sub76085-52917
main76085-52917-A2i201804
WHITE PEARL CS.,070
sub76085-52939
sub76085-52917
main76085-52917-B0i201706
SILVER ME.,1F7
sub76085-52939
sub76085-52917
main76085-52917-B1i201706-202008
GRAY ME.,1G3
sub76085-52939
sub76085-52917
main76085-52917-B4i202008
CEMENT GRAY ME.,1H5
sub76085-52939
sub76085-52917
main76085-52917-C0i201706
BLACK MC.,209
sub76085-52939
sub76085-52917
main76085-52917-C0i201804-201908
sub76085-52939
sub76085-52917
main76085-52917-C1i201706-201907
BLACKISH AGEHA GF.,221
sub76085-52939
sub76085-52917
main76085-52917-D0i201706
SUPER RED 5,3P0
sub76085-52939
sub76085-52917
main76085-52917-E0i201706-201907
ORANGE PEARL CS.,4X3
sub76085-52939
sub76085-52917
main76085-52917-E2i201706
BEIGE,4U0
sub76085-52939
sub76085-52917
main76085-52917-E4i202008
DK. BROWN M.M.,4U3
sub76085-52939
sub76085-52917
main76085-52917-F0i201706
YELLOW,5A3
sub76085-52939
sub76085-52917
main76085-52917-F1i201706-201907
FRESH GREEN M.M.,588
sub76085-52939
sub76085-52917
main76085-52917-G0i201809
OLIVE M.M.,6T7
sub76085-52939
sub76085-52917
main76085-52917-G1i201907
THERMO-TECT LIME GREEN,6W7
sub76085-52939
sub76085-52917
main76085-52917-H1i201706
CLEAR EMERALD PEARL CS.,792
sub76085-52939
sub76085-52917
main76085-52917-J0i201706
BLUE ME.,8T7
sub76085-52939
sub76085-52917
main76085-52917-J2i201711
DK.BLUE MC.,8S6
sub76085-52939
sub76085-52917
main76085-52917-J3i201907
GRAYISH BLUE,8W2
sub76085-52939
sub76085-52917
main76085-52917-K3i201706-202008
JEWELRY PURPLE M.M.,9AR
sub76085-52939
sub76085-52917
76851COVER, FRONT SPOILER
main76081-52080i201312-201706
main76851-52210i201112-201412
main76851-52240i201412-201706
main76851-52290i201706
main76851-52310i201707
main76851-52320i201711
main76851-52330i201711
76872PROTECTOR, REAR SPOILER, NO.1
main76872-52050i201112-201706
76873PROTECTOR, REAR SPOILER, NO.2
main76873-52070i201112-201606
main76873-52070i201606-201706
main76873-52120i201607-201706
76874PROTECTOR, REAR SPOILER, NO.3
main76874-52050i201112-201706
76875PROTECTOR, REAR SPOILER, NO.4
main76875-52020i201112-201706
76887SEAL, REAR SPOILER
main76887-52040i201112-201706
76889BSEAL, REAR SPOILER, NO.1
main76889-46010i201401-201412
main76889-52040i201412-201706
main76889-52090i201112-201312
sub76889-46010
8117
9015960496
main90159-60496
9015960619
main90159-60619
9018906237
main90189-06237
9046709075
main90467-09075

14 parts on this diagram · 6 diagrams in section
