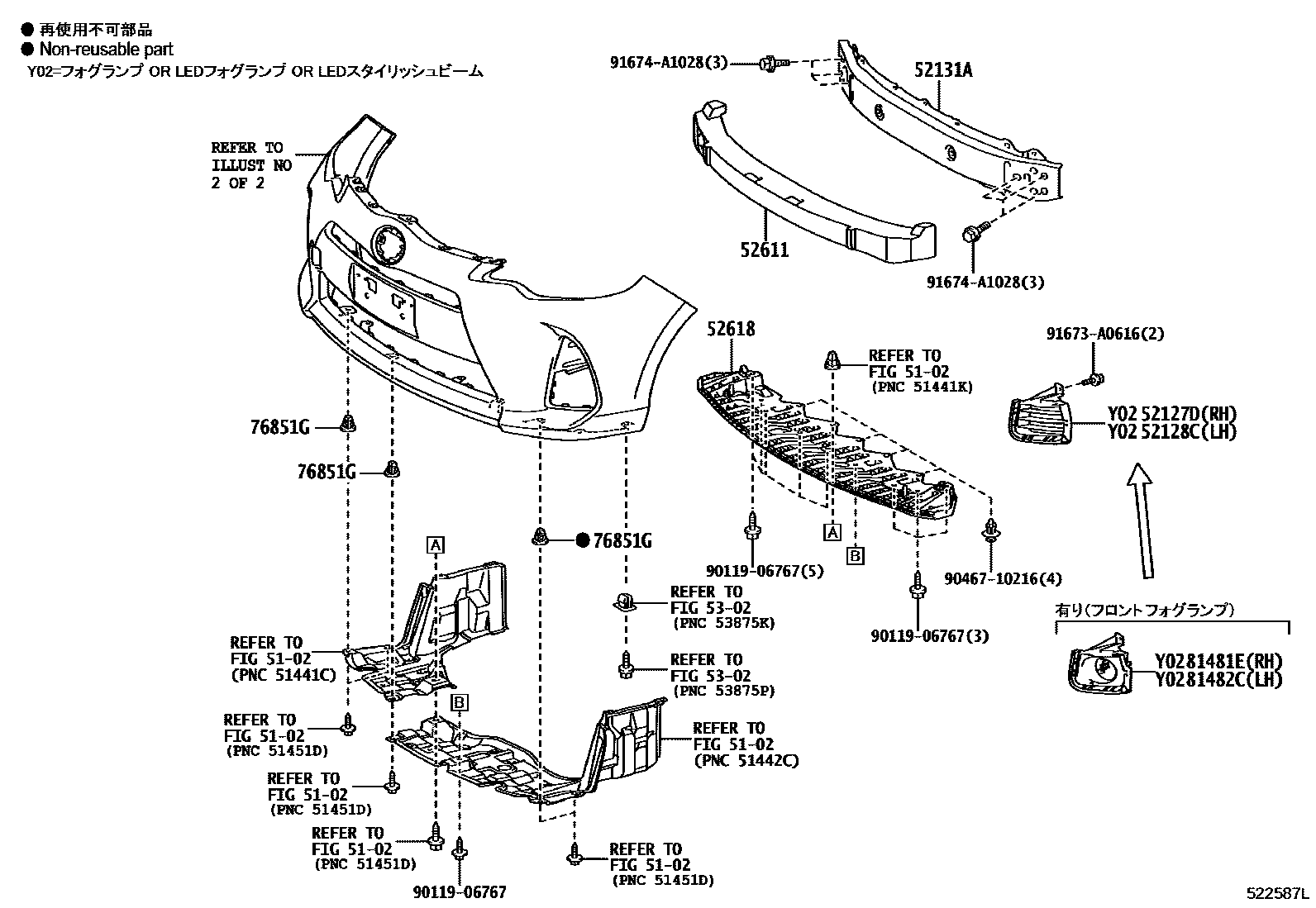

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1G'S 0004 1G'S 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1GR SPORT 0014 1GR SPORT

5102

52127DCOVER, FRONT BUMPER HOLE, RH

main52030-52050iNHP10..XRBN201412-201706

main52711-52070iNHP10..L201706

main52711-52080iNHP10..G,S201706

main81481-52440iNHP10201112-201412

main81481-52610iNHP10..G201412-201706

main81481-52730iNHP10..COVER201707

main52030-52080iNHP10..XRBN201511-201706

main52127-52650iNHP10..G201711

52128CCOVER, FRONT BUMPER HOLE, LH

main52040-52050iNHP10..XRBN201412-201706

main52712-52180iNHP10..L201706

main52712-52190iNHP10..G,S201706

main81482-52370iNHP10201112-201412

main81482-52520iNHP10..G201412-201706

main81482-52620iNHP10..COVER201707

main52040-52080iNHP10..XRBN201511-201706

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNHP10201112-201412

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52150iNHP10201112-201412

main52611-52260iNHP10201706-201803

main52611-52340iNHP10201804

main52611-52200iNHP10..G201412-201706

main52611-52330iNHP10..G201711

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52050iNHP10201412-201706

main52618-52110supersedes 52618-52050iNHP10201706

main52618-52080iNHP10..G201312-201412

5302

76851GGROMMET, SCREW, NO.1

main90189-06237×3iNHP10201112-201412

81481ECOVER, FOG LAMP, RH

main52030-52060iNHP10..XRBN201412-201706

main52030-52090iNHP10..XRBN201511-201706

main52127-52590iNHP10..G201312-201412

main52711-52090iNHP10..G201907

main81481-52450iNHP10201112-201412

main81481-52620iNHP10..G,S201412-201706

main81481-52740iNHP10..COVER201804

main81481-52770iNHP10..G201711

81482CCOVER, FOG LAMP, LH

main52040-52060iNHP10..XRBN201412-201706

main52040-52090iNHP10..XRBN201511-201706

main52128-52140iNHP10..G201312-201412

main52712-52200iNHP10..G201907

main81482-52380iNHP10201112-201412

main81482-52530iNHP10..G,S201412-201706

main81482-52630iNHP10..COVER201907

main81482-52660iNHP10..G201711

9011906767

main90119-06767

9046710216

main90467-10216

91673A0616

main91673-A0616

91674A1028

main91674-A1028

14 parts on this diagram · 14 diagrams in section
