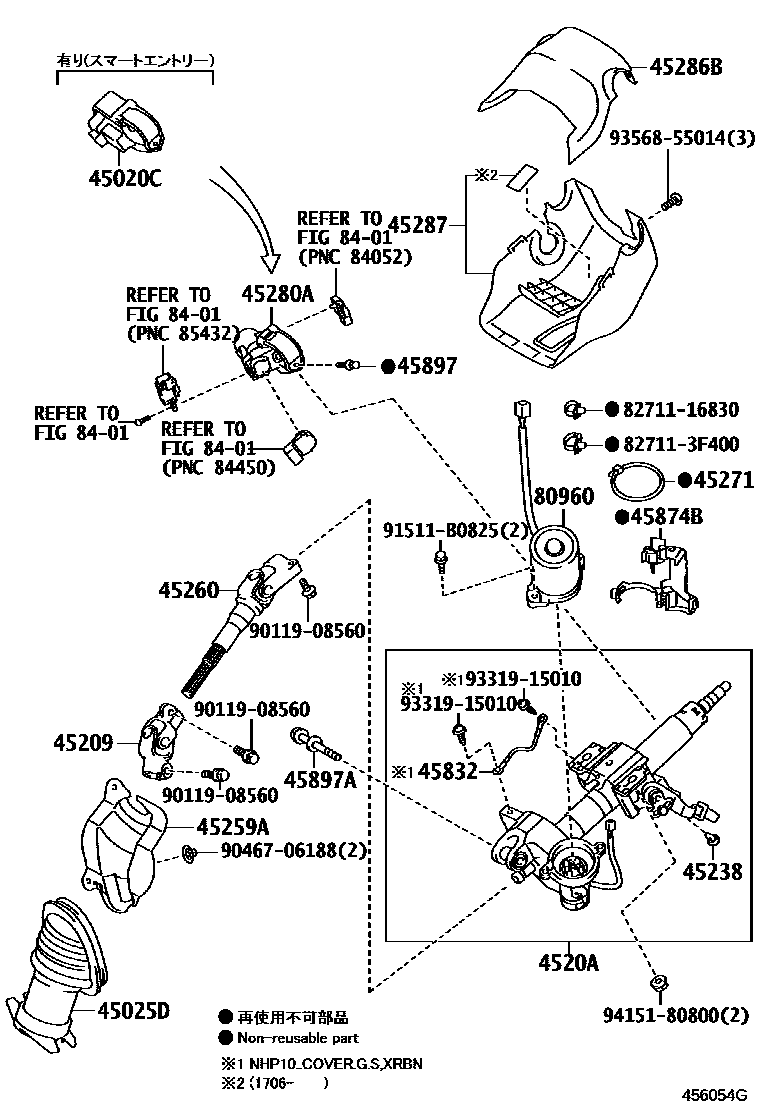

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#,8#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM0#,2#,4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#,3#,8#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
45832CABLE, TILT STEERING SUPPORT BOND
45874BPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
80960MOTOR ASSY, POWER STEERING
8401SWITCH & RELAY & COMPUTER
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F400
9011908560
main90119-08560
9046706188
main90467-06188
91511B0825
main91511-B0825
9331915010
main93319-15010
9356855014
main93568-55014
9415180800
main94151-80800
25 parts on this diagram · 1 diagram in section
