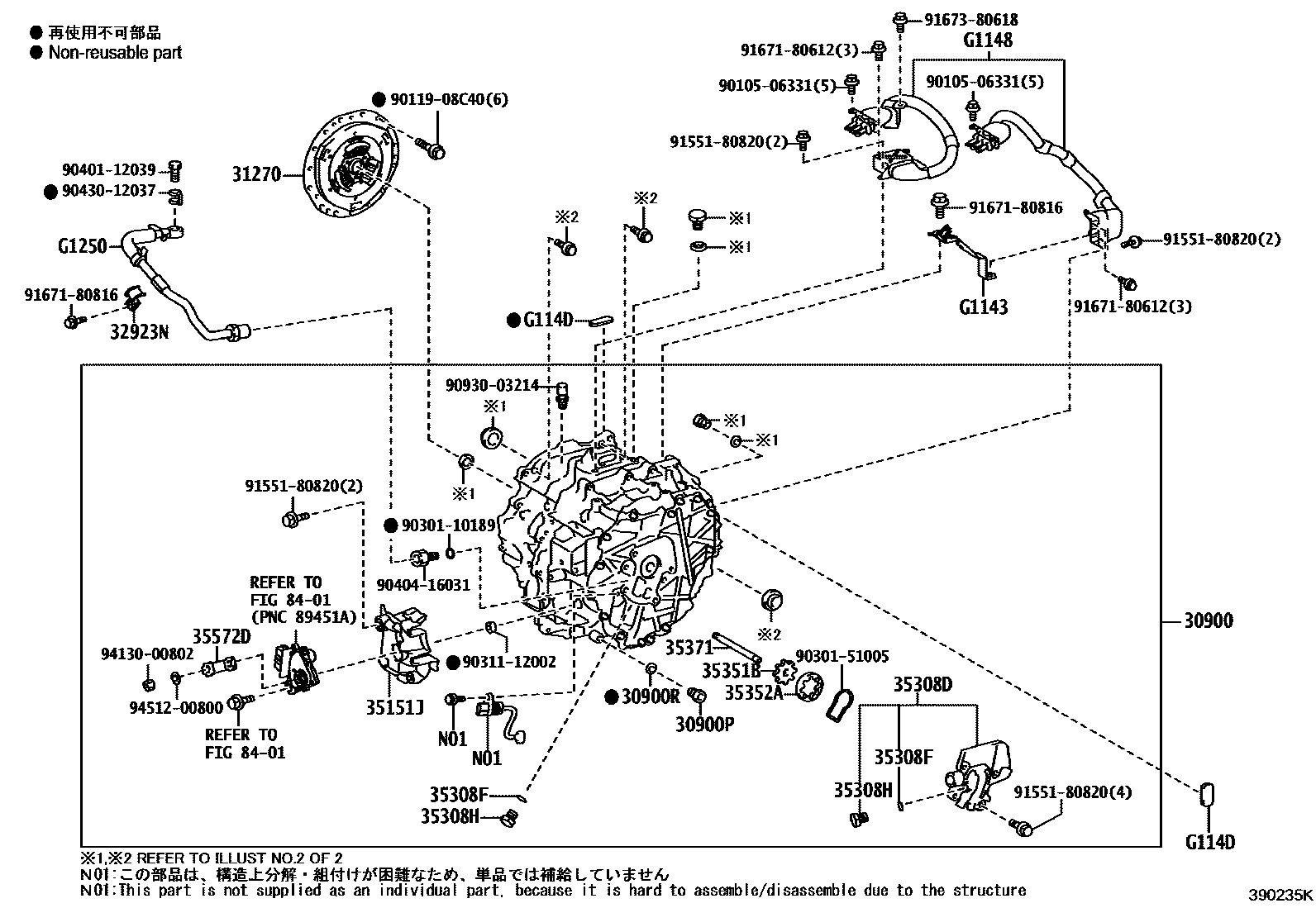

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-52010iNHP10201112-201706

30900PPLUG, DRAIN(HEV)

main90341-18016iNHP10201112-201706

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iNHP10201112-201706

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-52010iNHP10201112-201706

32923NCLAMP, OIL COOLER TUBE

main32923-52040iNHP10201112-201706

35151JCOVER, AUTOMATIC TRANSMISSION CASE

main35151-52010iNHP10201112-201706

35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP

main35308-52010iNHP10201112-201411

sub35308-52011

main35308-52011iNHP10201412-201706

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iNHP10201112-201706

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iNHP10201112-201706

35351BROTOR, TRANSAXLE OIL PUMP DRIVE

main35351-52010iNHP10201112-201706

35352AROTOR, TRANSMISSION OIL PUMP DRIVEN

main35352-52010iNHP10201112-201706

35371SHAFT, OIL PUMP DRIVE

main35371-52090iNHP10201112-201706

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-52090iNHP10201112-201706

8401

G1143BRACKET, MOTOR CABLE

mainG114352030iNHP10201112-201706

G1148CABLE, MOTOR

mainG114852010iNHP10201112-201706

G114DCAP, MOTOR CABLE TERMINAL

mainG114D47021iNHP10201112-201706

G1250PIPE ASSY, MOTOR COOLING

mainG125052010iNHP10201112-201706

9010506331

main90105-06331

9011908C40

main90119-08C40

9030110189

main90301-10189

9030151005

main90301-51005

9031112002

main90311-12002

9040112039

main90401-12039

9040416031

main90404-16031

9043012037

main90430-12037

9093003214

main90930-03214

9155180820

main91551-80820

9167180612

main91671-80612

9167180816

main91671-80816

9167380618

main91673-80618

9413000802

main94130-00802

9451200800

main94512-00800

33 parts on this diagram · 2 diagrams in section
