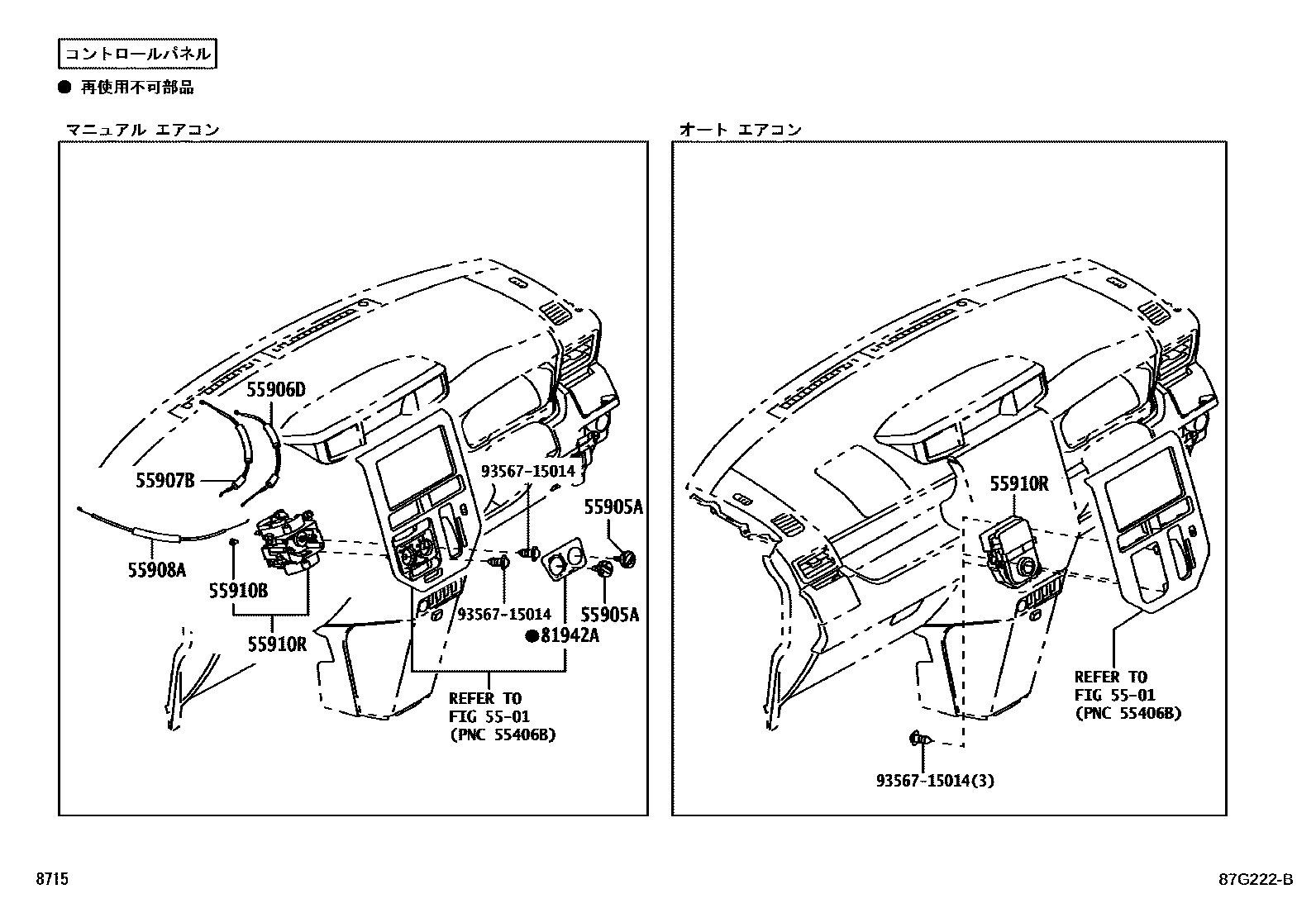

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ ���� 0002 1������ ���� 0003 1�� ���� 0004 1�� ���� 0005 1���

5501

55905AKNOB, HEATER CONTROL

main55905-B2180iM900,910..X201611-202009

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-B1080iM900,910..X201611-202009

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B1080iM900,910..X201611-202009

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B1080iM900,910..X201611-202009

55910BBULB, HEATER CONTROL

main81936-B2040iM900,910..X201611-202009

55910RCONTROL ASSY, HEATER

main55910-B1150iM900,910..G201611-201912

sub55910-B1151

main55910-B1151iM900,910..G202001-202009

main55910-B1170iM900,910..CTMG201611-201912

sub55910-B1171

main55910-B1170iM900,910..G..NTBO201811-201912

sub55910-B1171

main55910-B1171iM900,910..G..NTBO202001-202009

main55910-B1171iM900,910..CTMG202001-202009

main55910-B1210iM900,910..G202009

main55910-B1220iM900,910..CTMG202009

main55910-B1220iM900,910..CTMG202009

main55910-B1260iM900,910..G202208

main55910-B1270iM900,910..G202208

main55910-B1270iM900,910..CTMG202208

main55910-B2331iM900,910..X201611-202009

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-B2370iM900,910..X201611-202009

9356715014

main93567-15014

9 parts on this diagram · 5 diagrams in section
