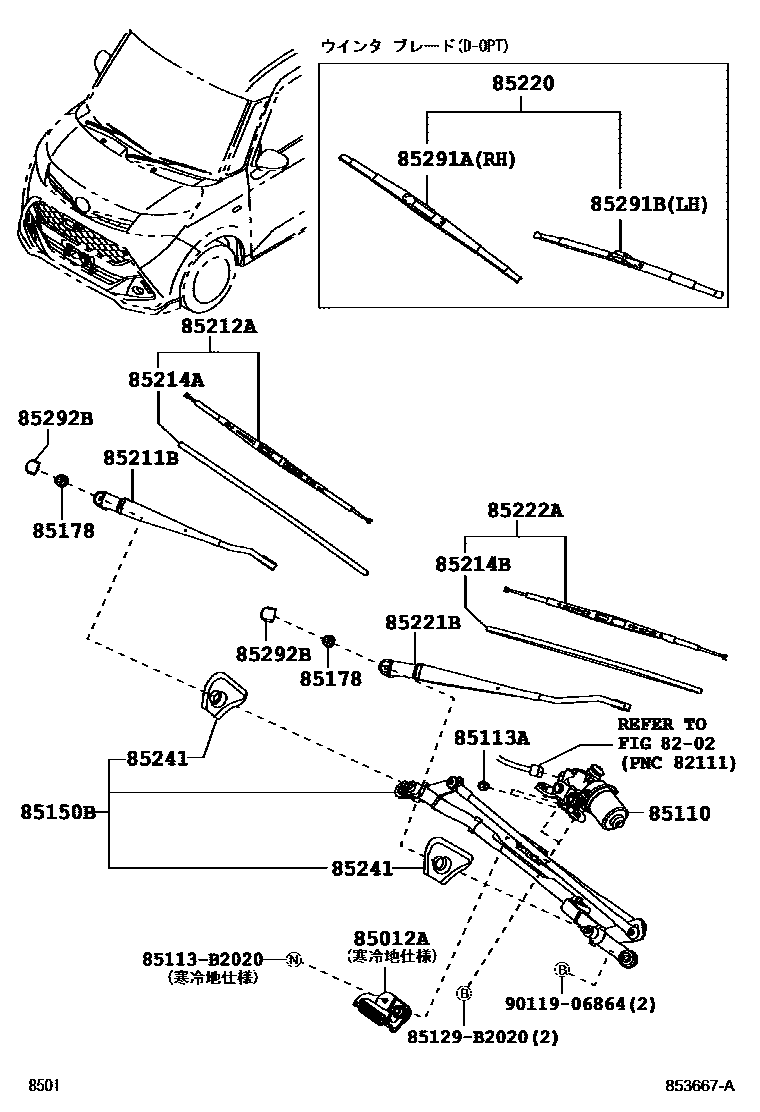

WINDSHIELD WIPER

8202

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-B1010iM900,910201611-202009

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B1150iM900,910201611-202009

main85110-B1160iM900,910201611-202009

85113ANUT, FR WIPER

main85113-B2010iM900,910201611-202009

85150BLINK ASSY, WIPER

main85150-B1090iM900,910201611-202009

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iM900,910201611-202109

main90041-79379iM900,910202110

85211BARM, FRONT WIPER, RH

main85211-B1120iM900,910201611-202009

85212ABLADE, FR WIPER, RH

main85212-B1070iM900,910201611-201810

sub85212-B1071

main85212-B1071iM900,910201811-202009

85214ARUBBER, WIPER, RH

main85214-B1100iM900,910201611-202009

85214BRUBBER, WIPER, LH

main85214-B1110iM900,910201611-202009

85220BLADE ASSY, WINDSHIELD WIPER

main85201-B1110iM900,910201611-202009

main85201-B1110iM900,910202009

85221BARM, FRONT WIPER, LH

main85221-B1120iM900,910201611-202009

85222ABLADE, FR WIPER, LH

main85222-B1090iM900,910201611-202009

85241COVER, WINDSHIELD WIPER

main85218-B1030iM900,910201611-202009

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-B2250iM900,910201611-202009

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-B1080iM900,910201611-202009

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800iM900,910202209

main85292-12020iM900,910201611-202208

85113B2020FRAME, WINDSHIELD WIPER MOTOR END

main85113-B2020

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

9011906864

main90119-06864

20 parts on this diagram · 1 diagram in section
