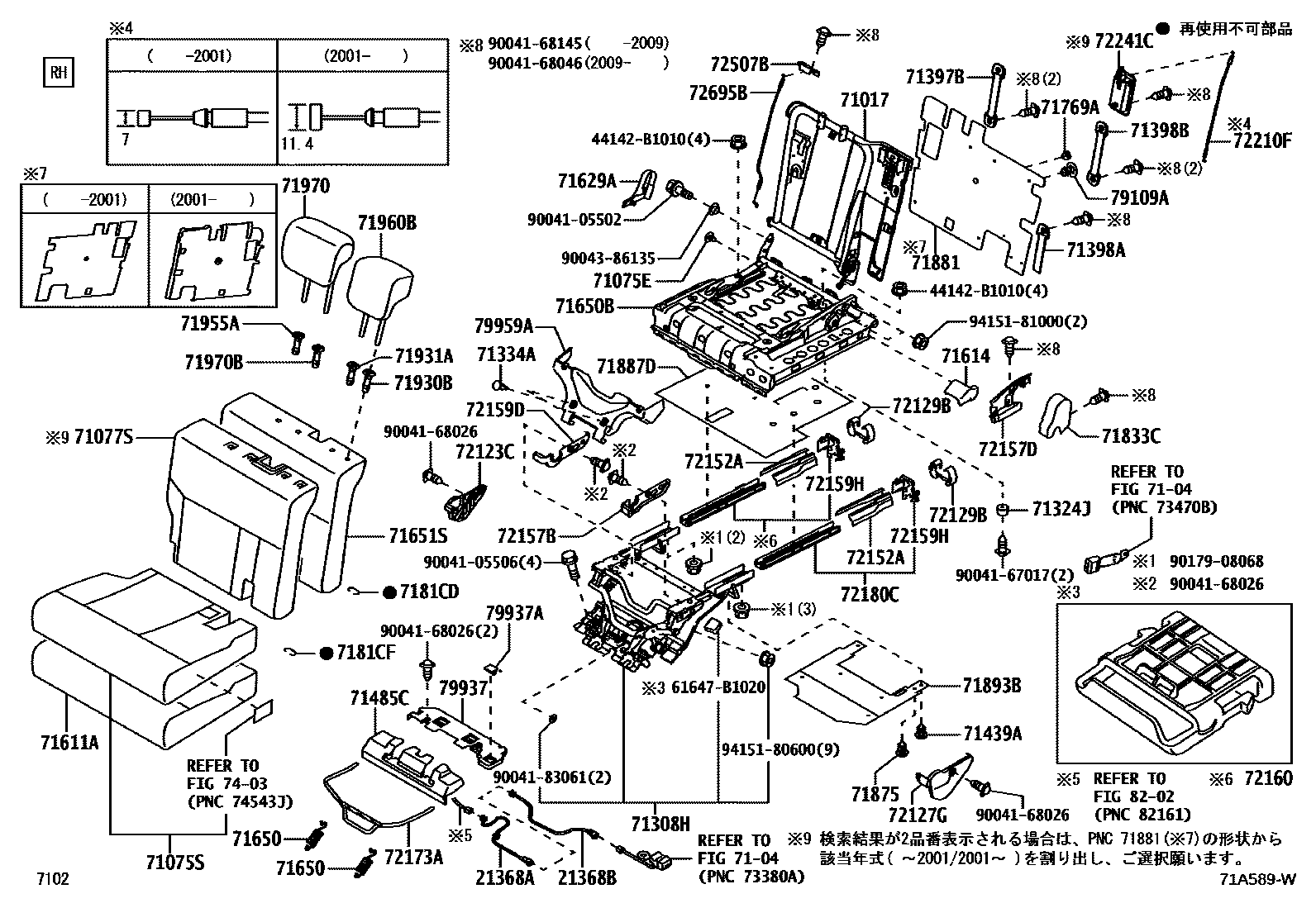

REAR SEAT & SEAT TRACK

0001 1RH 0002 1RH 0003 1LH 0004 1LH 0005 1

21368AHARNESS, REAR SEAT, NO.1

main21368-B1010i1KR#..M900,910201611-202009

main21368-B1020i1KR#..M900,910201611-202009

21368BHARNESS, REAR SEAT, NO.2

main21368-B1030i1KR#..M900,910201611-202009

main21368-B1040i1KR#..M900,910201611-202009

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-B1170iM900,910201611-202001

main71017-B1171iM900,910202001-202009

7104

71075ECLIP(FOR REAR SEAT)

main90044-68185-B1iM900,910201611-202009

DK.GRAY

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-B1560-C1iM900,910..G,X201611-202009

BLACK,TRIM1#

main71075-B1570-C1iM900,910..CTMG201611-202009

BLACK,TRIM1#

main71075-B1570-C1iM900,910..G..NTBO201811-202009

main71075-B1700-C1iM900,910..G,X202009

-,TRIM4#

main71075-B1710-C2iM900,910..CTMG202009

-,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-B1740-C0iM900,910..G,X201611-202001

BLACK,TRIM1#

main71077-B1741-C0iM900,910..G,X202001-202009

BLACK,TRIM1#

main71077-B1750-C0iM900,910..CTMG201611-202001

BLACK,TRIM1#

main71077-B1750-C0iM900,910..G..NTBO201811-202001

main71077-B1751-C0iM900,910..G..NTBO202001-202009

main71077-B1751-C0iM900,910..CTMG202001-202009

BLACK,TRIM1#

main71077-B1850-C1iM900,910..G,X202009-202209

-,TRIM4#

main71077-B1860-C2iM900,910..CTMG202009-202209

-,TRIM2#

main71077-B1A20-C0iM900,910..G,X202209

BLACK,TRIM4#

main71077-B1A30-C0iM900,910..CTMG202209

BLACK,TRIM2#

71308HLEG SUB-ASSY, REAR SEAT, RH

main71308-B1030iM900,910201611-202009

71324JCUSHION, REAR SEAT

main90045-40125iM900,910201611-202009

71334ASTOPPER, REAR SEAT LEG

main71334-B2030-C0iM900,910..CTMG202009

BLACK,TRIM2#

sub71334-B2030

main71334-B2030-C0iM900,910201611-202009

BLACK,TRIM1#

sub71334-B2030

main71334-B2030-C0iM900,910..G,X202009

BLACK,TRIM4#

sub71334-B2030

71397BHOLDER, REAR SEATBACK, RH

main71398-B2040-C0iM900,910201611-202001

BLACK,TRIM1#

sub71398-B2040

main71398-B2041-C0iM900,910..G,X202009

BLACK,TRIM2#

main71398-B2041-C0iM900,910..CTMG202009

BLACK,TRIM4#

main71398-B2041-C0iM900,910202001-202009

BLACK,TRIM1#

71398AHOLDER, REAR SEATBACK

main71398-B2030-C0iM900,910..G,X202009

BLACK,TRIM2#

sub71398-B2030

main71398-B2030-C0iM900,910201611-202009

BLACK,TRIM1#

sub71398-B2030

main71398-B2030-C0iM900,910..G,X202009

BLACK,TRIM4#

sub71398-B2030

71398BHOLDER, REAR SEATBACK, LH

main71398-B2040-C0iM900,910201611-202001

BLACK,TRIM1#

sub71398-B2040

main71398-B2041-C0iM900,910202001-202009

BLACK,TRIM1#

main71398-B2041-C0iM900,910..G,X202009

BLACK,TRIM4#

main71398-B2041-C0iM900,910..G,X202009

BLACK,TRIM2#

71439ACLIP

main90044-68028-B0iM900,910201611-201705

DK.GRAY

sub90044-68028

main90044-68028-C1iM900,910201705-202009

BLACK,TRIM1#

sub90044-68028

main90044-68028-C1iM900,910202009

BLACK

sub90044-68028

71485CCOVER, REAR SEAT HINGE, RH

main71485-B1100-C0iM900,910..CTMG202009

BLACK,TRIM2#

main71485-B1100-C0iM900,910201611-202009

BLACK,TRIM1#

main71485-B1100-C0iM900,910..G,X202009

BLACK,TRIM4#

71611APAD, REAR SEAT CUSHION, RH

main71503-B1150iM900,910202009

main71503-B1160iM900,910201611-202009

71614PAD, REAR SEAT CUSHION, CENTER

main71614-B1020iM900,910201611-202009

71629ACOVER, REAR SEAT CUSHION HINGE, RH

main71629-B1010-C0iM900,910201611-202009

BLACK,TRIM1#

main71629-B1010-C0iM900,910..G,X202009

BLACK,TRIM4#

main71629-B1010-C0iM900,910..G,X202009

BLACK,TRIM2#

71650SPRING ASSY, REAR SEAT CUSHION

main44699-B2070iM900,910201611-202009

71650BSPRING ASSY, REAR SEAT CUSHION, RH

main71055-B1010iM900,910201611-202009

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-B1190iM900,910201611-202009

main71507-B1210iM900,910202009

71769ACLIP, REAR SEATBACK BOARD

main71769-B2010iM900,910201611-202009

7181CDRING, HOG, SMALL (FOR REAR SEATBACK)

main71812-87201iM900,910201611-202009

7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)

main71812-87201iM900,910201611-202009

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71833-B1010-C0iM900,910201611-202009

BLACK,TRIM1#

main71833-B1010-C0iM900,910..G,X202009

BLACK,TRIM4#

main71833-B1010-C0iM900,910..G,X202009

BLACK,TRIM2#

71875STOPPER, REAR SEAT CUSHION

main71334-B2030-C0iM900,910201611-202009

BLACK,TRIM1#

sub71334-B2030

main71334-B2030-C0iM900,910..G,X202009

BLACK,TRIM4#

sub71334-B2030

main71334-B2030-C0iM900,910..G,X202009

BLACK,TRIM2#

sub71334-B2030

71881BOARD, REAR SEATBACK, RH

main71881-B1020iM900,910201611-202001

main71881-B1050iM900,910202001-202009

71887DMAT, REAR SEAT CUSHION, RH

main71887-B1020-B0iM900,910201611-202009

DK GRAY,TRIM1#

main71887-B1020-B0iM900,910..G,X202009

DK GRAY,TRIM4#

main71887-B1020-B0iM900,910..G,X202009

DK GRAY,TRIM2#

71893BCARPET, REAR SEAT CUSHION, UNDER RH

main71887-B1010-B0iM900,910201611-202009

DK GRAY,TRIM1#

main71887-B1010-B0iM900,910..G,X202009

DK GRAY,TRIM4#

main71887-B1010-B0iM900,910..G,X202009

DK GRAY,TRIM2#

71930BSUPPORT ASSY, REAR SEAT HEADREST

main71930-B2010-C1iM900,910201611-202009

BLACK,TRIM1#

sub71930-B2010

main71930-B2010-C1iM900,910..G,X202009

BLACK,TRIM4#

sub71930-B2010

main71930-B2010-C1iM900,910..G,X202009

BLACK,TRIM2#

sub71930-B2010

71931ASUPPORT, REAR SEAT HEADREST

main71931-B2010-C1iM900,910201611-202009

sub71931-B2010

main71931-B2010-C1iM900,910..G,X202009

sub71931-B2010

main71931-B2010-C1iM900,910..G,X202009

sub71931-B2010

71955ASUPPORT, REAR SEAT HEADREST

main71931-B2010-C1iM900,910201611-202009

BLACK,TRIM1#

sub71931-B2010

main71931-B2010-C1iM900,910..G,X202009

BLACK,TRIM4#

sub71931-B2010

main71931-B2010-C1iM900,910..G,X202009

BLACK,TRIM2#

sub71931-B2010

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-B1040-C0iM900,910..G,X201611-202009

BLACK,TRIM1#

main71960-B1050-C0iM900,910..CTMG201611-202009

BLACK,TRIM1#

main71960-B1050-C0iM900,910..G..NTBO201811-202009

main71960-B1100-E1iM900,910..G,X202009

BROWN,TRIM4#

main71960-B1110-C2iM900,910..CTMG202009

-,TRIM2#

71970HEADREST ASSY, REAR SEAT

main71940-B1550-C0iM900,910..G,X201611-202009

BLACK,TRIM1#

main71940-B1660-C0iM900,910..G..NTBO201811-202009

main71940-B1660-C0iM900,910..CTMG201611-202009

BLACK,TRIM1#

main71940-B1810-E1iM900,910..G,X202009

BROWN,TRIM4#

main71940-B1820-C2iM900,910..CTMG202009

-,TRIM2#

71970BSUPPORT ASSY, REAR SEAT HEADREST, RH

main71930-B2010-C1iM900,910..CTMG202009

BLACK,TRIM4#

sub71930-B2010

main71930-B2010-C1iM900,910..CTMG202009

BLACK,TRIM2#

sub71930-B2010

main71930-B2010-C1iM900,910201611-202009

BLACK,TRIM1#

sub71930-B2010

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-B1020-C0iM900,910201611-202009

BLACK,TRIM1#

main72123-B1020-C0iM900,910..G,X202009

BLACK,TRIM4#

main72123-B1020-C0iM900,910..G,X202009

BLACK,TRIM2#

72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-B1030-C0iM900,910201611-202009

BLACK,TRIM1#

main72123-B1030-C0iM900,910..G,X202009

BLACK,TRIM4#

main72123-B1030-C0iM900,910..G,X202009

BLACK,TRIM2#

72129BPROTECTOR, SEAT TRACK LOWER RAIL

main72129-B2033iM900,910..CTMG201611-202009

main72129-B2033iM900,910..G..NTBO201811-202009

72152ACOVER, REAR SEAT TRACK BRACKET, INNER

main72152-B1010-C0iM900,910201611-202009

BLACK,TRIM1#

main72152-B1010-C0iM900,910..G,X202009

BLACK,TRIM4#

main72152-B1010-C0iM900,910..G,X202009

BLACK,TRIM2#

72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH

main72158-B1040-C0iM900,910201611-202009

BLACK,TRIM1#

main72158-B1040-C0iM900,910..G,X202009

BLACK,TRIM4#

main72158-B1040-C0iM900,910..G,X202009

BLACK,TRIM2#

72157DCOVER, SEAT TRACK BRACKER, INNER RH

main72157-B1030-C0iM900,910201611-202009

BLACK,TRIM1#

main72157-B1030-C0iM900,910..G,X202009

BLACK,TRIM4#

main72157-B1030-C0iM900,910..G,X202009

BLACK,TRIM2#

72159DCOVER, REAR SEAT TRACK BRACKET, OUTER RH

main72157-B1040-C0iM900,910201611-202009

BLACK,TRIM1#

main72157-B1040-C0iM900,910..G,X202009

BLACK,TRIM4#

main72157-B1040-C0iM900,910..G,X202009

BLACK,TRIM2#

72159HCOVER, REAR SEAT TRACK BRACKET

main72157-B2031iM900,910201611-202009

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-B2071iM900,910201611-202009

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-B1010iM900,910201611-202009

72180CTRACK ASSY, REAR SEAT, INNER RH

main72180-B1020iM900,910201611-202009

72210FCABLE ASSY, SEAT TRACK CONTROL

main72210-B1040iM900,910201611-201810

sub72210-B2031

main72210-B1050iM900,910202001-202009

main72210-B2031iM900,910201811-202001

72241CLEVER, OUTER SEAT TRACK LOCK, RH

main72303-B1040-C0iM900,910..G,X202009

BLACK,TRIM2#

main72303-B1040-C0iM900,910..CTMG202009

BLACK,TRIM4#

main72303-B1040-C0iM900,910202001-202009

BLACK,TRIM1#

main72303-B2040-C0iM900,910201611-202001

BLACK,TRIM1#

sub72303-B2040

72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH

main72507-B1020-C0iM900,910201809-202009

BLACK,TRIM1#

main72507-B1020-C0iM900,910..G,X202009

BLACK,TRIM4#

main72507-B1020-C0iM900,910..G,X202009

BLACK,TRIM2#

main72507-B2020-C0iM900,910201611-201808

BLACK,TRIM1#

sub72507-B2020

sub72507-B1020

72695BCABLE, REAR SEAT LOCK CONTROL, RH

main72695-B1020iM900,910201611-202009

7403

79109ACLIP (FOR NO.1 SEATBACK BOARD)

main90044-68028-B0iM900,910201611-201705

DK.GRAY

sub90044-68028

main90044-68028-C1iM900,910201705-202009

BLACK,TRIM1#

sub90044-68028

main90044-68028-C1iM900,910202009

BLACK

sub90044-68028

79937COVER, REAR SEAT LEG, NO.2

main79937-B1010-C0iM900,910201611-202009

BLACK,TRIM1#

main79937-B1010-C0iM900,910..G,X202009

BLACK,TRIM4#

main79937-B1010-C0iM900,910..G,X202009

BLACK,TRIM2#

79937ACOVER, REAR SEAT LEG, NO.2

main55458-B1010-C0iM900,910201611-202009

BLACK,TRIM1#

sub55458-B1010

main55458-B1010-C0iM900,910..G,X202009

BLACK,TRIM4#

sub55458-B1010

main55458-B1010-C0iM900,910..G,X202009

BLACK,TRIM2#

sub55458-B1010

79959ACOVER, REAR SEAT LEG, RH

main79959-B2150-C0iM900,910201611-202009

BLACK,TRIM1#

sub79959-B2150

main79959-B2150-C0iM900,910..G,X202009

BLACK,TRIM4#

sub79959-B2150

main79959-B2150-C0iM900,910..G,X202009

BLACK,TRIM2#

sub79959-B2150

8202

44142B1010NUT, LOCK

main44142-B1010

61647B1020RETAINER, REAR SEATBACK PIVOT, LOWER

main61647-B1020

9004105502

main90041-05502

9004105506

main90041-05506

9004167017

main90041-67017

9004168026

main90041-68026

9004168046

main90041-68046

9004168145

main90041-68145

9004183061

main90041-83061

9004386135

main90043-86135

9017908068

main90179-08068

9415180600

main94151-80600

9415181000

main94151-81000

69 parts on this diagram · 5 diagrams in section
