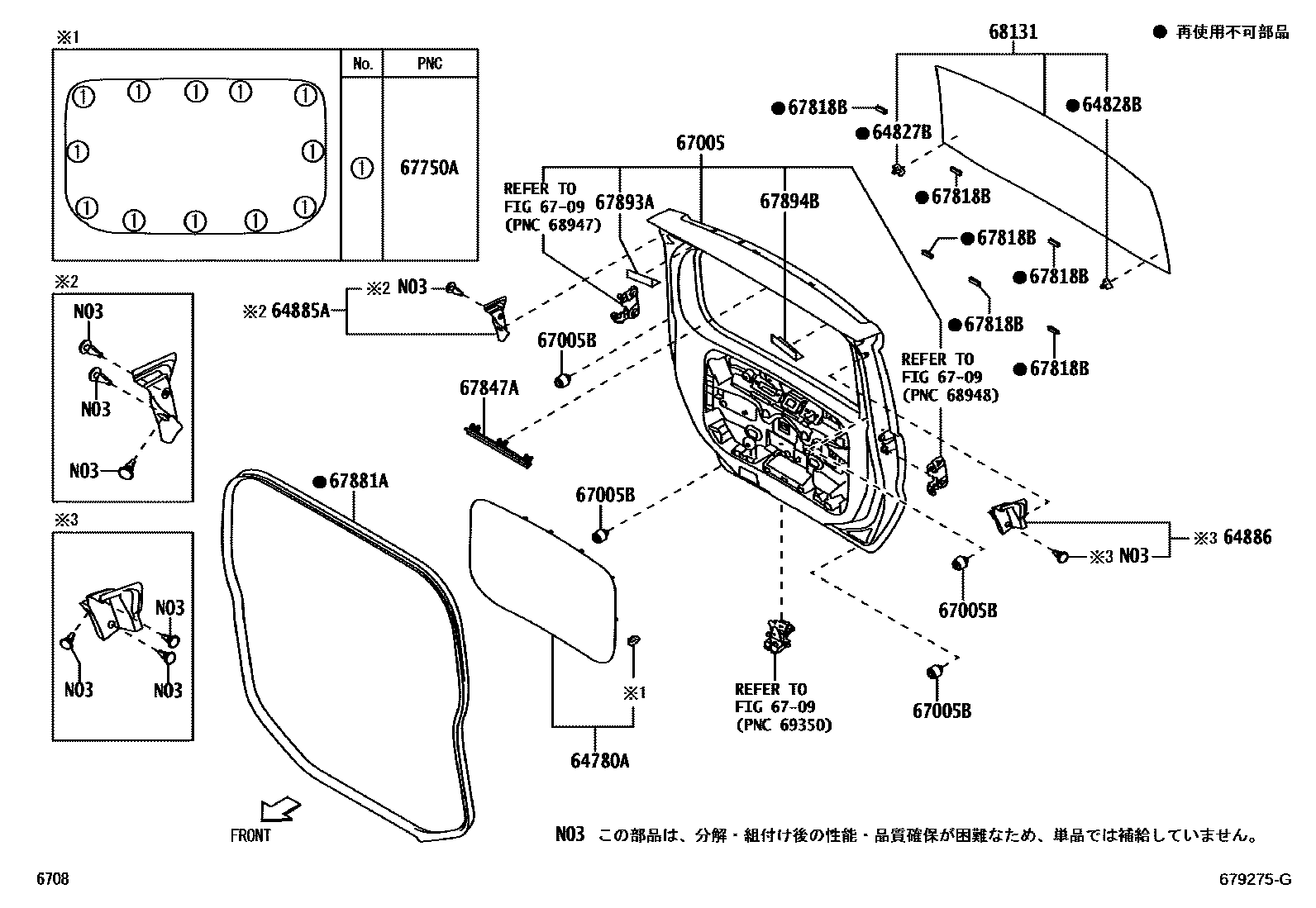

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

64780APANEL ASSY, BACK DOOR TRIM

main64780-B1060-B0iM900,910201611-202009

LT.GRAY,TRIM1#

main64780-B1060-B0iM900,910..G,X202009

LT.GRAY,TRIM4#

main64780-B1060-B0iM900,910..G,X202009

LT.GRAY,TRIM2#

64827BCLIP, BACK WINDOW GLASS, RH

main64827-B2040iM900,910201611-202009

64828BCLIP, BACK WINDOW GLASS, LH

main64827-B2040iM900,910201611-202009

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-B1020iM900,910201611-202009

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-B1020iM900,910201611-202009

67005PANEL SUB-ASSY, BACK DOOR

main67005-B1520-B0iM900,910..G,X201611-201810

sub67005-B1580

main67005-B1530-B0iM900,910..CTMG201611-201810

sub67005-B1590

main67005-B1580-B0iM900,910..G,X202009

main67005-B1580-B0iM900,910..G,X201811-202009

main67005-B1590-B0iM900,910..CTMG201811-202009

main67005-B1590-B0iM900,910..G..NTBO201811-202009

main67005-B1590-B0iM900,910..CTMG202009

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41273iM900,910201611-202009

6709

67750ACLIP(FOR BACK DOOR TRIM)

main90467-05172iM900,910201611-202009

67818BSPACER, BACK WINDOW GLASS

main64818-B2010iM900,910201611-202009

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-B1020iM900,910201611-202009

67881AWEATHERSTRIP, BACK DOOR

main67881-B1060iM900,910201611-202009

67893APROTECTOR, BACK DOOR PANEL, NO.1

main76835-B1020-B0iM900,910201611-202009

LT.GRAY,TRIM1#

main76835-B1020-B0iM900,910..G,X202009

LT.GRAY,TRIM4#

main76835-B1020-B0iM900,910..G,X202009

LT.GRAY,TRIM2#

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main76836-B1020-B0iM900,910201611-202009

LT.GRAY,TRIM1#

main76836-B1020-B0iM900,910..G,X202009

LT.GRAY,TRIM4#

main76836-B1020-B0iM900,910..G,X202009

LT.GRAY,TRIM2#

68131GLASS, BACK DOOR

main68105-B1110iM900,910201611-201811

sub68105-B1111

main68105-B1111iM900,910201812-202001

sub68105-B1112

main68105-B1112iM900,910202002-202009

15 parts on this diagram · 3 diagrams in section
